Overview

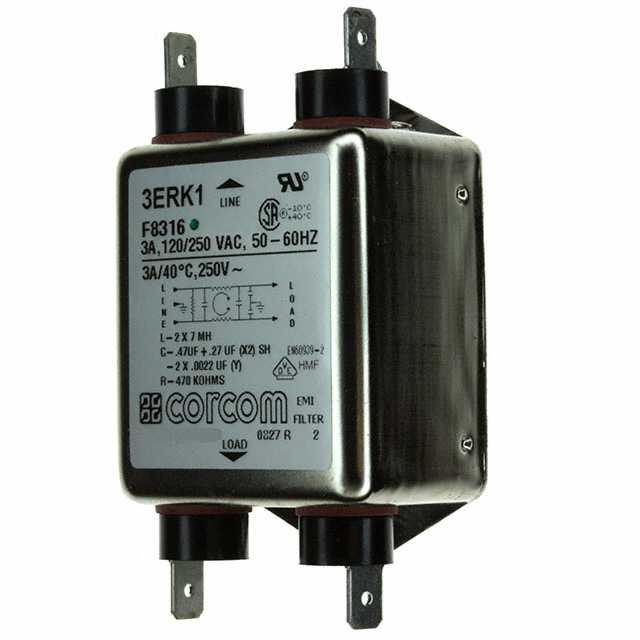

The 1-1609036-7 is a single-phase EMC/EMI power line filter manufactured by TE Connectivity Corcom Filters. It is rated for 3 A current and 250 VAC voltage at 50/60 Hz frequencies. The unit features a single-stage configuration with quick connect termination style. Designed for chassis mounting, it provides electromagnetic interference suppression for AC power lines.

Feature Summary

• Single-phase EMI/RFI filtering capability
• Chassis mount installation style
• Quick connect terminal termination

Applications

• General purpose electronic equipment
• Industrial control systems
• Power supply input stages

Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with the manufacturer or authorized distributors before procurement. Confirm that the quick connect terminal dimensions match the target PCB or wire harness specifications. Ensure the chassis mounting hole pattern aligns with the enclosure design requirements to avoid integration issues during assembly.

Selection Notes

Select this component when a single-stage filter solution is sufficient for the intended noise attenuation requirements. The 3 A rating suits low-to-medium power applications operating at standard mains voltages. Consider the physical size constraints of the chassis mount design relative to available panel space. Verify that the quick connect terminals are compatible with the existing wiring infrastructure.

Part Context

This part belongs to the TE Connectivity Corcom Filters lineup, specializing in power line conditioning components. The series typically includes various ratings for different current and voltage applications. These filters are engineered to meet international safety and emissions standards for commercial and industrial electronics.

Replacement Considerations

Consult official substitution guides for equivalent single-phase filters with matching 3 A and 250 VAC ratings. Ensure any replacement maintains the same chassis mount form factor and quick connect terminal interface to preserve mechanical compatibility.
