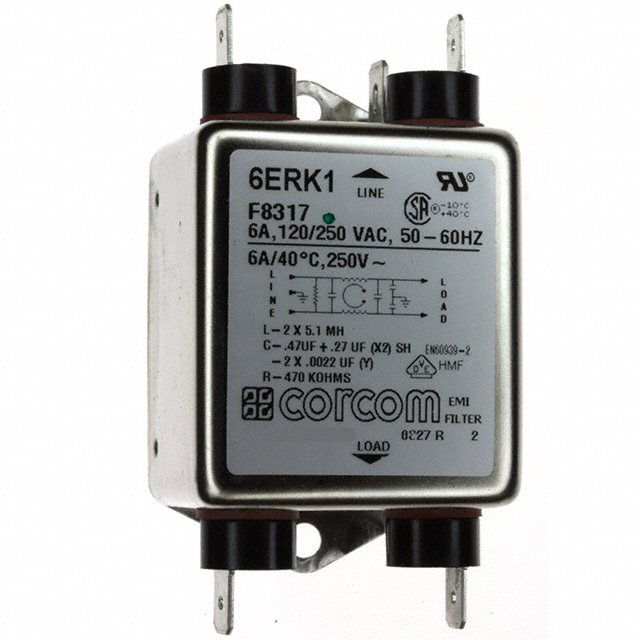

1-1609036-8

Description：LINE FILTER 250VAC 6A CHASS MNT
Series：RK
Mfr：TE Connectivity Corcom Filters
Package：Box

SKU:fdb80e7d72cf Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 6A CHASS MNT
Series：RK
Mfr：TE Connectivity Corcom Filters
Package：Box
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：6:00 AM
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UR, VDE
Operating Temperature：-10°C ~ 40°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：5.1mH

Download product information

1-1609036-8

Overview

The TE Connectivity Corcom Filters model 1-1609036-8 is a single-phase EMC/EMI line filter designed for chassis mounting. It supports a rated current of 6 A and operates at AC voltages up to 250VAC within the 50/60Hz frequency range. The component features a single-stage configuration with quick connect termination styles. It complies with IEC 320-C14 standards and holds CSA, UR, and VDE certifications.

Feature Summary

Provides single-stage EMI/RFI noise suppression for power lines
Features quick connect termination for simplified assembly
Designed for secure chassis mounting installation

Applications

Industrial equipment power input stages
Medical device power supplies
General purpose electronic enclosures requiring EMI filtering

Procurement Notes

Verify the manufacturer part number 1-1609036-8 against official TE Connectivity documentation to ensure authenticity. Confirm that the specific order matches the single-phase, 6A, 250VAC specifications. Check for RoHS compliance status as it may vary by production batch or region. Ensure the receiving facility has the capability for chassis mounting and quick connect wiring.

Selection Notes

Select this component when a single-stage filter is sufficient for the application's noise environment. It is appropriate for systems requiring 6A capacity at standard mains frequencies. Consider the chassis mounting requirement and quick connect interface during mechanical design. Verify that the operating temperature range of -10°C to 40°C meets the environmental conditions.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, which specializes in power line filtering solutions. The 1-1609036-8 designation identifies a specific variant within the broader portfolio of EMI/RFI filters. It shares common certification bodies like CSA, UR, and VDE with other models in the lineup but differs in electrical ratings and physical configuration.
