1-1609990-4

Overview

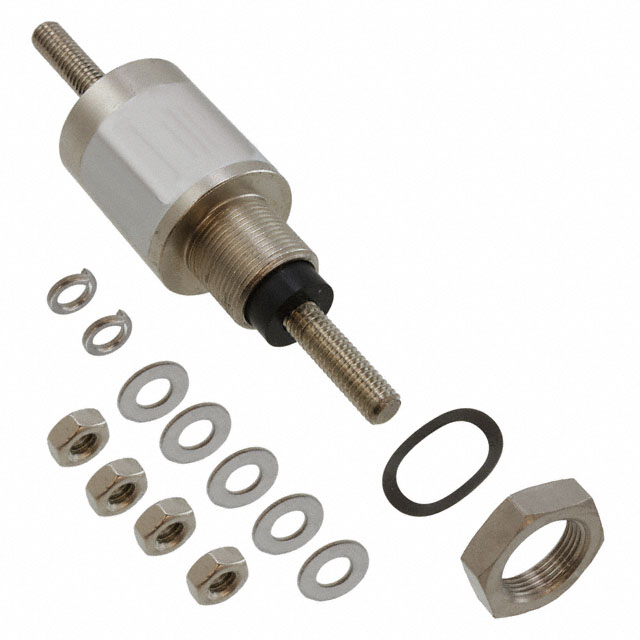

The TE Connectivity Corcom Filters part number 1-1609990-4 is a feed-through capacitor designed for power line and signal line filtering. It features a capacitance of 10,000 pF (10 nF) with a rated voltage of 250V. The component supports a current rating of 63 A and utilizes axial threaded terminals for secure mounting. This device is engineered to reduce electromagnetic interference in electronic systems.

Feature Summary

• Designed for effective reduction of electromagnetic interference in electronic systems
• Suitable for both power line and signal line filtering applications
• Constructed with axial threaded terminals for robust mechanical connection

Applications

• Power line filtering
• Signal line filtering
• Electromagnetic interference suppression

Procurement Notes

Verify the exact capacitance value against official datasheets, as conflicting data exists between 0.047 µF and 10,000 pF for similar series numbers. Confirm the current rating of 63 A is appropriate for the specific application load. Ensure the 250V rating meets system requirements. Check for RoHS compliance status if required by project specifications.

Selection Notes

Select this component when high current handling capability up to 63 A is required alongside precise capacitance values for EMI suppression. The axial threaded terminal style is ideal for chassis or panel mounting where vibration resistance is critical. Compare against other feed-through capacitors in the Corcom range for size and electrical compatibility.

Part Context

This component belongs to the TE Connectivity Corcom Filters feed-through capacitor series. These components are specialized passive filters used to attenuate high-frequency noise on conductors while allowing DC or low-frequency signals to pass. They are distinct from standard ceramic or electrolytic capacitors due to their low parasitic inductance and high current ratings.

Replacement Considerations

FN2080A-10-06 is listed as a similar substitute in distributor databases, though it is a line filter rather than a feed-through capacitor. Verify functional equivalence carefully before substitution.
