1-1609991-1

Overview

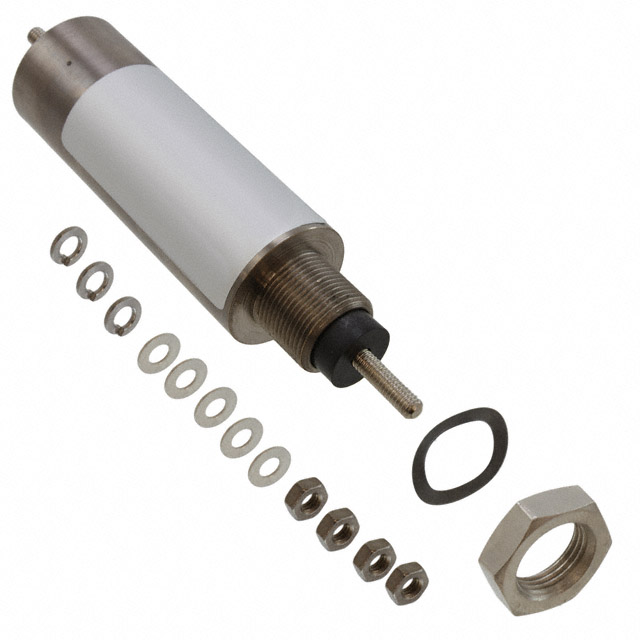

The TE Connectivity Corcom Filters model 1-1609991-1 is a feedthrough capacitor with a capacitance of 0.022 µF and a rated voltage of 130V. It supports a current rating of 16 A and features a maximum DC resistance (DCR) of 4 mOhm. The component utilizes an axial package with M4 threaded terminals, measuring 25.00 mm in diameter and 69.00 mm in length. It operates within a temperature range of -40°C to 60°C.

Feature Summary

• Provides electromagnetic interference reduction for power and signal lines through feedthrough capacitor design.

Applications

• Power line filtering
• Signal line filtering

Procurement Notes

Verify the part status as discontinued before procurement planning. Confirm that the M4 threaded terminal interface matches the installation requirements. Ensure the 130V rated voltage and 16 A current capacity are sufficient for the specific circuit application. Check for valid substitute part numbers if availability is critical.

Selection Notes

Select this component when a feedthrough capacitor with M4 threading is required for axial mounting. The 0.022 µF capacitance and 16 A current handling define its electrical suitability. Verify that the physical dimensions of 25.00 mm diameter fit the enclosure constraints. Consider the operating temperature range limits for environmental compatibility.

Part Context

This component belongs to the FFA series of feedthrough capacitors manufactured by TE Connectivity Corcom Filters. It is designed for EMI/RFI suppression in electronic systems. The part number 1-1609991-1 is also identified by aliases such as CCM1832 and 16FFA6-DG. It serves as a passive filter element for noise attenuation.

Replacement Considerations

Public confirmed substitute part numbers include 16FFA6-DG and CCM1832. These identifiers refer to the same component specifications and should be verified for interchangeability based on exact technical parameters.
