1-1609991-8

Overview

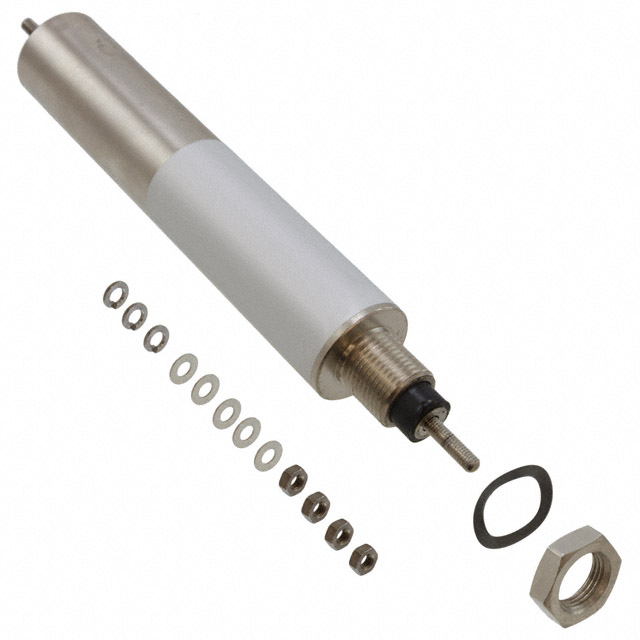

The TE Connectivity Corcom Filters model 1-1609991-8 is a feedthrough capacitor rated at 0.047 µF with a maximum voltage of 130V. It supports a current capacity of 10 A and features a maximum DC resistance (DCR) of 9 mΩ. The component utilizes an axial package with threaded terminals and measures 0.787 inches in diameter by 3.898 inches in length (20.00mm x 99.00mm). This unit belongs to the FFA series and is designed for EMI/RFI filtering applications.

Feature Summary

• Provides electromagnetic interference suppression through high-capacity feedthrough capacitance
• Features robust threaded terminal construction for secure mechanical mounting
• Engineered for high-current handling capabilities within compact axial dimensions

Applications

• Facility-level EMI emission control systems
• Power supply input filtering for industrial equipment
• Susceptibility protection in sensitive electronic installations

Procurement Notes

Verify exact dimensional tolerances against panel cutout requirements due to specific axial threaded geometry. Confirm that the 130V rating aligns with system peak voltages. Check for availability as distribution status may vary. Ensure mounting hardware compatibility with the specified thread specification before ordering.

Selection Notes

Select this component when high capacitance values are required for low-frequency noise attenuation in power lines. Compare against the 1-1609991-1 variant if higher current ratings or different capacitance values are needed. Evaluate thermal dissipation needs based on the 10A continuous current limit. Consider physical space constraints given the larger axial footprint compared to smaller series variants.

Part Context

This part belongs to the Corcom FFA series of feedthrough capacitors, designed for demanding EMI/RFI filtering environments. These components are integral to TE Connectivity's broader portfolio of facility filters and energy efficiency solutions. The series supports various current ratings and capacitance values to meet diverse industrial standards.

Replacement Considerations

The 1-1609991-1 is a related series member but differs in capacitance (0.022 µF vs 0.047 µF) and current rating (16 A vs 10 A). Verify electrical parameters match circuit requirements before substitution. No direct cross-model functional equivalents are confirmed in public documentation.
