1-1735042-2

Product Detailed Parameters

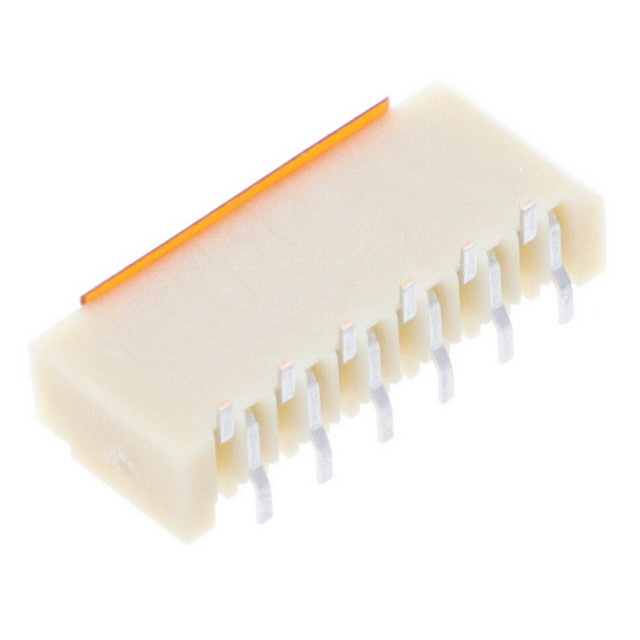

• Description：CONN FFC FPC VERT 12POS 1MM SMD
• Series：-
• Mfr：TE Connectivity AMP Connectors
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FFC, FPC
• Mounting Type：Surface Mount
• Connector/Contact Type：Contacts, Vertical - 1 Sided
• Number of Positions：12
• Pitch：0.039" (1.00mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.220" (5.59mm)
• Locking Feature：-
• Cable End Type：Straight
• Contact Material：Phosphorus Bronze
• Contact Finish：Tin
• Housing Material：Polyamide (PA), Nylon, Glass Filled
• Actuator Material：-
• Features：-
• Voltage Rating：125V
• Operating Temperature：-20°C ~ 85°C
• Material Flammability Rating：-
