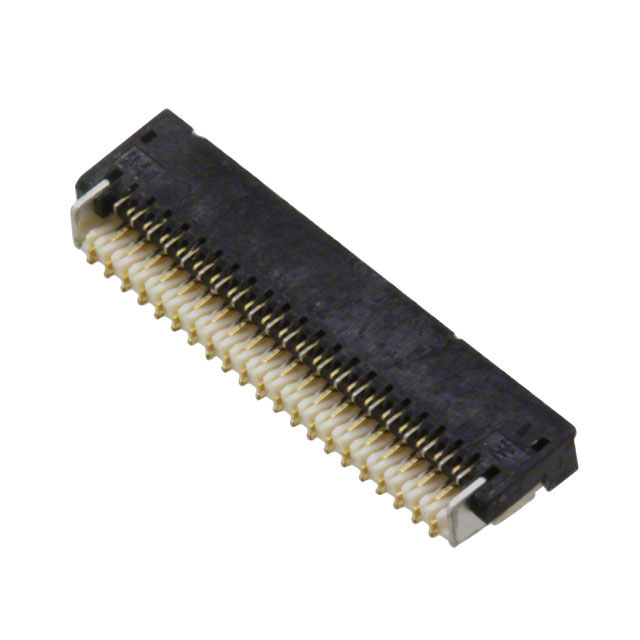

1-2040832-6

Product Detailed Parameters

• Description：CONN FPC BOTTOM 41POS 0.25MM R/A
• Series：-
• Mfr：TE Connectivity AMP Connectors
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Bottom
• Number of Positions：41
• Pitch：0.010" (0.25mm)
• Termination：Solder
• FFC, FCB Thickness：0.20mm
• Height Above Board：0.051" (1.30mm)
• Locking Feature：Slide Lock
• Cable End Type：Tapered
• Contact Material：Copper Alloy
• Contact Finish：Gold
• Housing Material：Liquid Crystal Polymer (LCP), Glass Filled
• Actuator Material：Liquid Crystal Polymer (LCP), Glass Filled
• Features：Solder Retention, Zero Insertion Force (ZIF)
• Voltage Rating：50V
• Operating Temperature：-25°C ~ 85°C
• Material Flammability Rating：UL94 V-0
