Product Detailed Parameters
- Description：FERRITE BEAD 60 OHM 0603 1LN
- Series：BMC-Q
- Mfr：TE Connectivity Passive Product
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power Line
- Number of Lines：1
- Impedance @ Frequency：60 Ohms @ 100 MHz
- Current Rating (Max)：1A
- DC Resistance (DCR) (Max)：120mOhm
- Ratings：AEC-Q200
- Operating Temperature：-40°C ~ 125°C
- Package / Case：0603 (1608 Metric)
- Mounting Type：Surface Mount
- Height (Max)：0.039" (1.00mm)
- Size / Dimension：0.063" L x 0.031" W (1.60mm x 0.80mm)
- Features：Automotive
Download product information
Overview

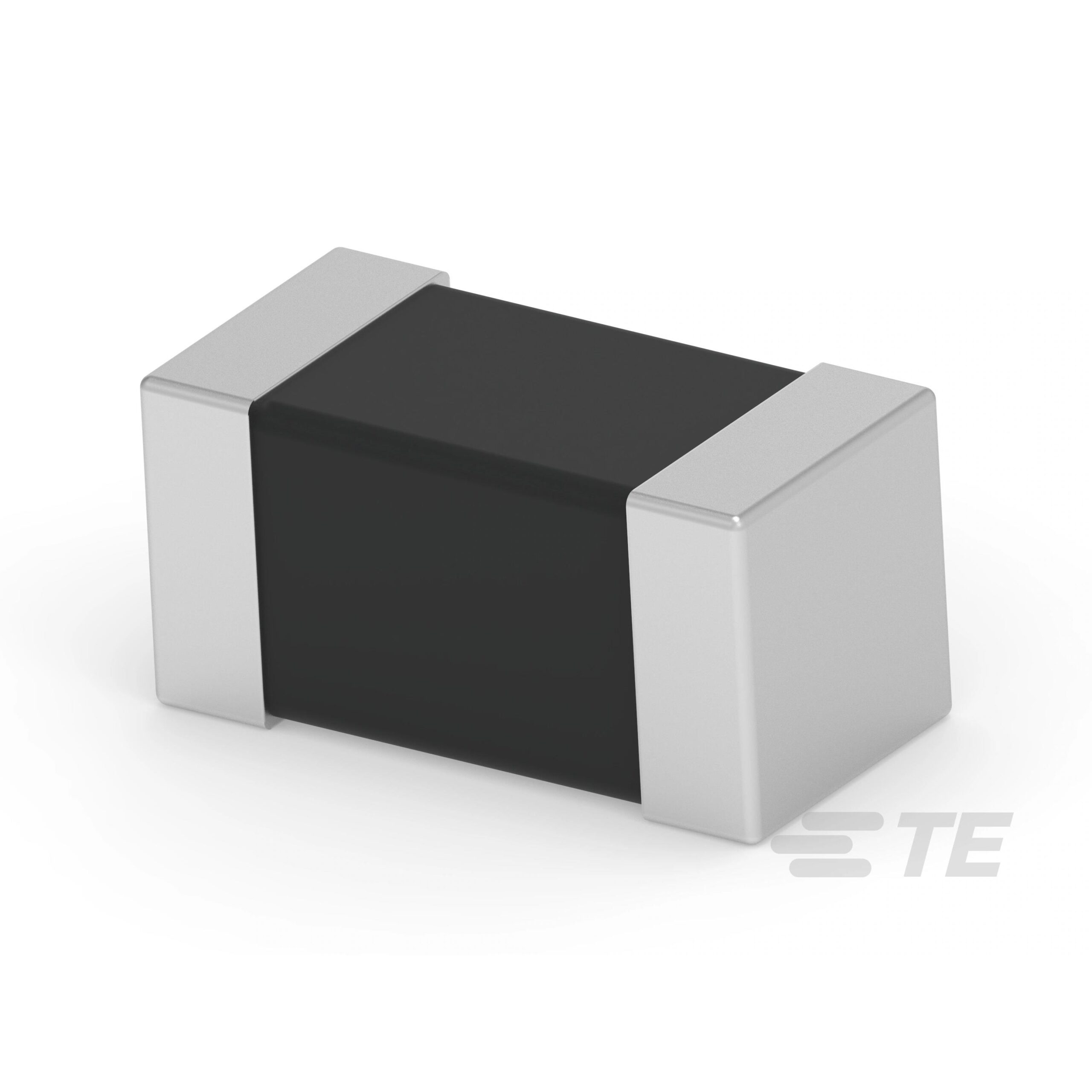

The TE Connectivity Passive Product component 1-2176743-2 is a ferrite bead from the BMC-Q series, designed for surface mount applications. It features an impedance of 60 ohms with a tolerance of ±25% and supports a maximum DC current rating of 1A. The device has a maximum DC resistance of 0.12 ohms and utilizes a 0603 [1608 Metric] package size.
Feature Summary
- Multilayer high-current construction suitable for demanding power environments
- Automotive-grade reliability within specified temperature ranges
- Compact surface-mount footprint for dense circuit board layouts
Applications
- High-current noise suppression in automotive electronics
- Power supply output filtering
- Signal line protection in industrial control systems
Procurement Notes
Verify the specific suffix codes against official TE Connectivity documentation to ensure exact electrical characteristics match design requirements. Confirm RoHS compliance status and manufacturing origin through authorized distributors. Request updated lifecycle notices as product availability may change without prior announcement.
Selection Notes
Select this component when high current handling capability is required alongside effective high-frequency noise attenuation. Ensure the 0603 package dimensions fit the available PCB real estate. Validate that the 1A current rating exceeds the maximum operating current of the target circuit to prevent saturation or excessive heating during normal operation.
Part Context
This ferrite bead belongs to the BMC-Q series, which is engineered for robust performance in challenging environments. The series emphasizes high current capacity while maintaining low DC resistance to minimize power loss. It serves as a critical passive component for electromagnetic interference mitigation in modern electronic assemblies.
Replacement Considerations
Public confirmed substitute part numbers are not provided in the source material. Verify compatibility with alternative components by matching impedance curves, current ratings, and physical dimensions before substitution.
