1-2176745-0

Overview

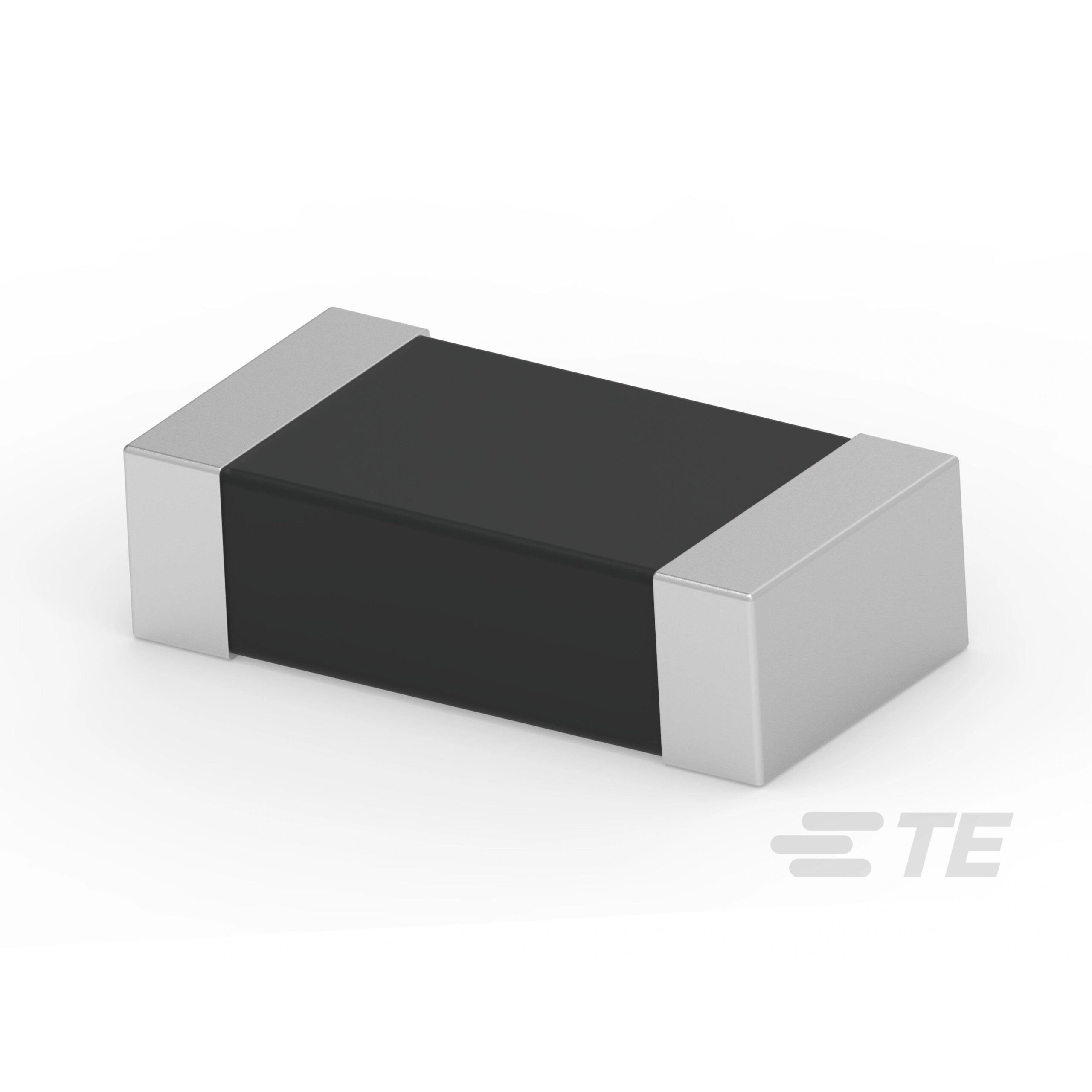

The TE Connectivity 1-2176745-0 is a power line ferrite bead designed for surface mount technology. It features a 1206 (3216 metric) package with dimensions of 3.2 mm length, 1.6 mm width, and 0.9 mm height. The component provides an impedance of 30 Ohms at 100 MHz and supports a maximum DC current of 3 A. It operates within a temperature range of -40°C to +125°C.

Feature Summary

• Designed as a power line ferrite bead for EMI suppression
• Supports high current applications up to 3 A
• Constructed in a standard 1206 surface mount package

Applications

• Power line filtering in electronic circuits
• EMI suppression in automotive systems
• High current signal integrity management

Procurement Notes

Verify the specific impedance tolerance and DC resistance values against the official manufacturer datasheet before integration. Confirm that the 1206 package dimensions align with your PCB footprint requirements. Ensure the selected variant meets the required operating temperature range for your specific environment. Cross-reference the manufacturer part number to avoid confusion with similar series components.

Selection Notes

Select this component when a 1206 form factor is required for power line filtering. The 3 A current rating makes it suitable for higher power applications compared to smaller packages. Verify that the 30 Ohm impedance at 100 MHz matches the noise frequency spectrum of the target circuit. Consider thermal management capabilities within the -40°C to +125°C operational window.

Part Context

This component belongs to the TE Connectivity Sigma Inductors passive product family. It is categorized under ferrite beads and chip beads. The part is manufactured by TE Connectivity Passive Product. It serves as a passive electromagnetic interference suppression device.
