1-2176748-0

Overview

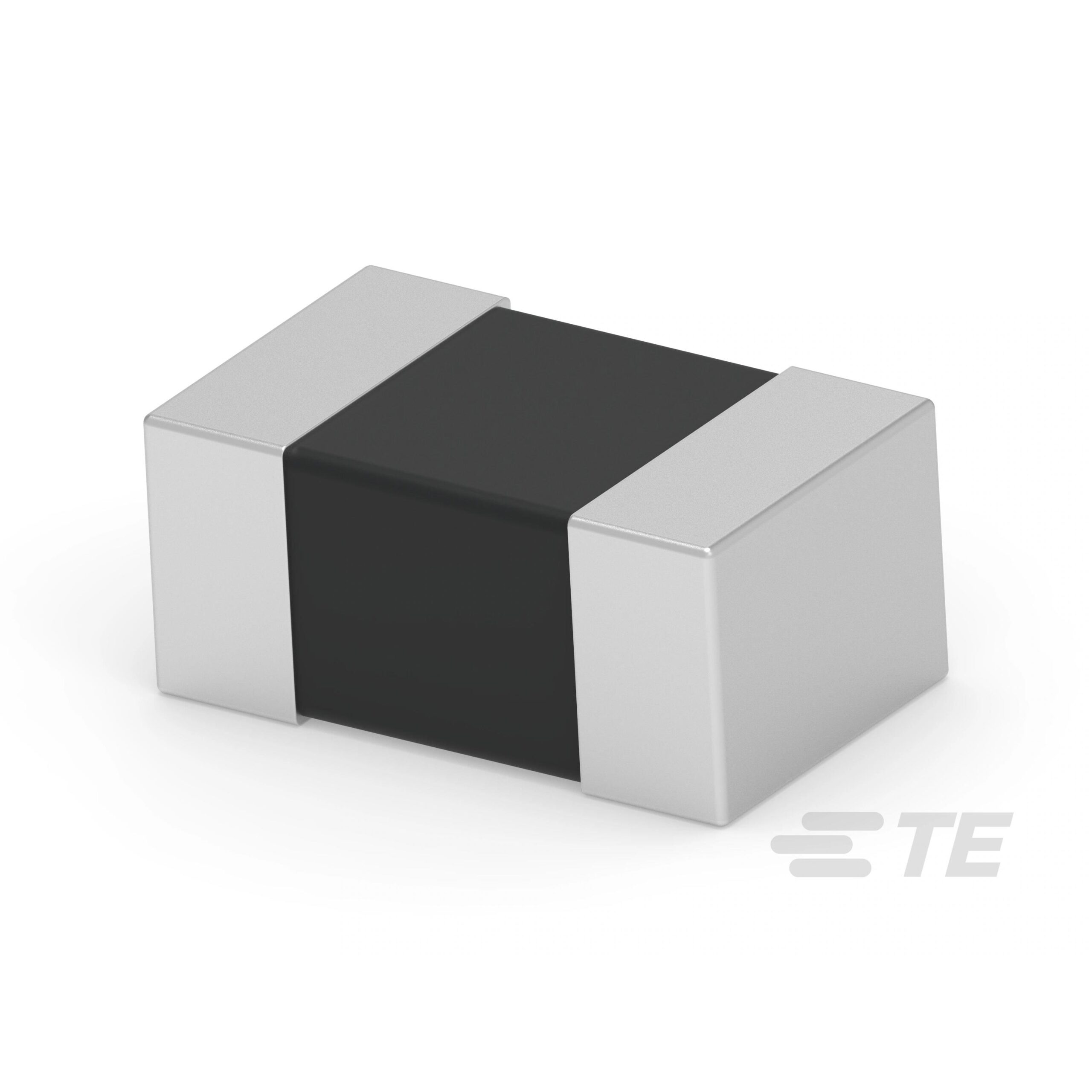

The TE Connectivity Passive Product component 1-2176748-0 is a ferrite bead designed for surface mount applications. It features an 0805 (2012 metric) package and provides an impedance of 50 ohms at the standard test frequency. The device supports a maximum DC current of 1 LN rating with a tolerance of 25%. It operates within a temperature range from -55°C to +125°C and complies with RoHS3 specifications.

Feature Summary

• Surface mount ferrite bead construction
• High current handling capability
• Wide operating temperature range

Applications

• Noise suppression in high-frequency circuits
• EMI filtering in power lines
• Signal integrity protection in communication modules

Procurement Notes

Verify the specific electrical parameters against the official datasheet before integration, as availability may vary. Confirm that the 0805 package dimensions align with your PCB footprint requirements. Ensure the selected variant meets the required impedance and current ratings for your specific circuit design to avoid performance issues.

Selection Notes

Select this component when a robust ferrite bead solution is needed for noise attenuation in compact designs. The 0805 package offers a balance between current handling and board space efficiency. Consider the 50-ohm impedance characteristic for matching specific filter requirements in RF or high-speed digital applications.

Part Context

This part belongs to the TE Connectivity Passive Product portfolio, specifically within the ferrite beads and chip inductors category. It is manufactured by TE Connectivity Passive Product and is identified by the manufacturer part number 1-2176748-0. The component is listed under Mouser Electronics with the identifier 279-1-2176748-0.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's catalog for potential cross-references or updated series replacements if this specific part is discontinued or unavailable.
