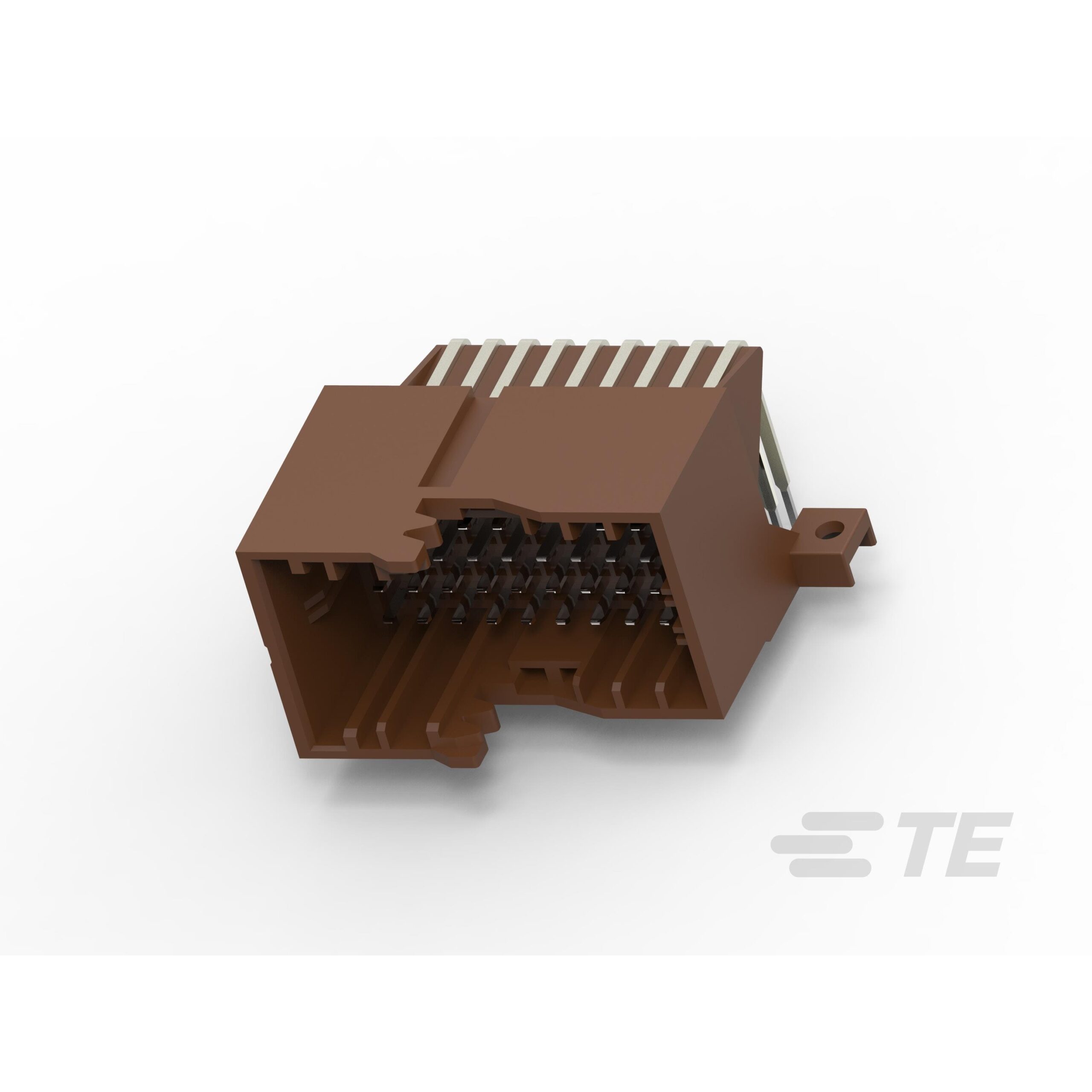

1-2236715-1
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：36POS,TAB1.5X0.64,HEADER ASSY,CO
- Series：MCP
- Mfr：TE Connectivity Deutsch Connectors
- Package：Tray
- Connector Type：Header
- Contact Type：Tab
- Pitch - Mating：0.157" (4.00mm)
- Number of Positions：36
- Number of Rows：4
- Row Spacing - Mating：0.150" (3.81mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.268" (6.80mm)
- Contact Length - Post：0.122" (3.10mm)
- Overall Contact Length：-
- Insulation Height：1.112" (28.24mm)
- Contact Shape：Rectangular
- Contact Finish - Mating：Silver
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Silver
- Contact Material：Copper Tin
- Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
- Features：Mounting Flange
- Operating Temperature：-40°C ~ 140°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Brown
- Current Rating (Amps)：-
- Voltage Rating：36VDC
