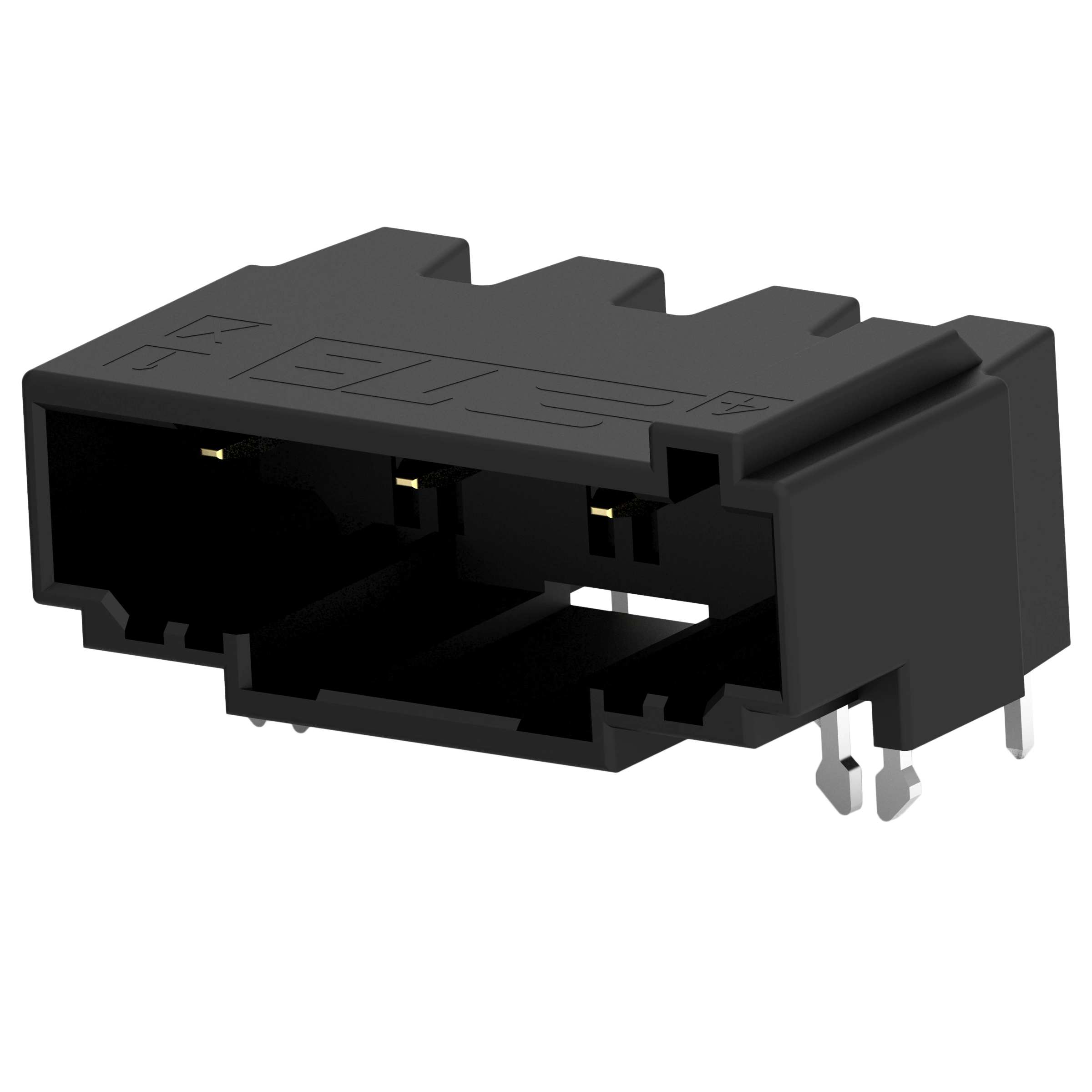

1-2271457-4
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：HEADER ASSEMBLY D3950 4P X
- Series：Dynamic D-3000
- Mfr：TE Connectivity AMP Connectors
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.295" (7.50mm)
- Number of Positions：4
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：-
- Contact Length - Post：0.150" (3.81mm)
- Overall Contact Length：-
- Insulation Height：0.472" (12.00mm)
- Contact Shape：Rectangular
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：-
- Features：Board Lock
- Operating Temperature：-30°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：-
- Insulation Color：Black
- Current Rating (Amps)：14.5A
- Voltage Rating：300VAC
