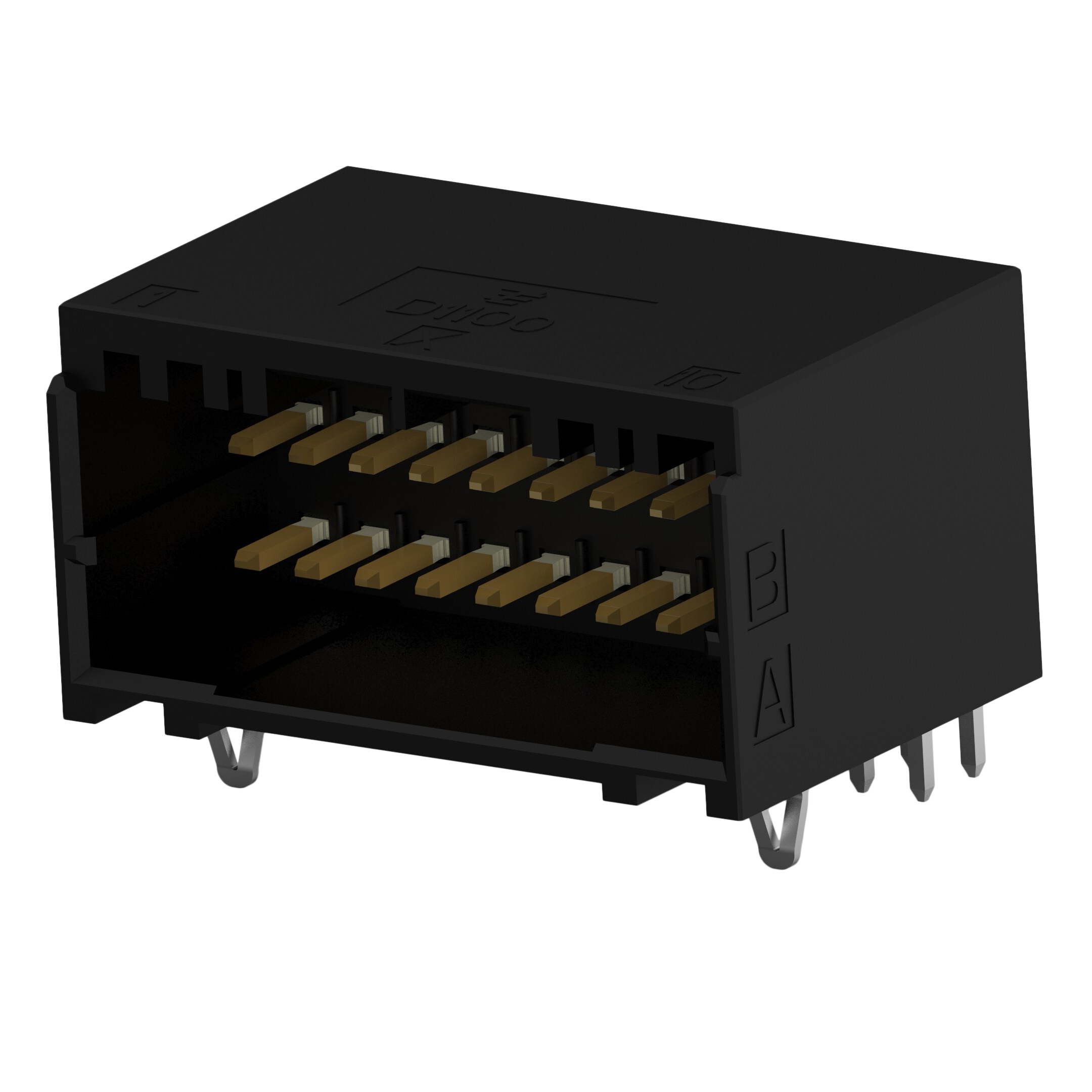

1-2271887-0

Product Detailed Parameters

• Description：DYNAMIC 1100D HDR ASSY H 20PX BL
• Series：Dynamic D-1100
• Mfr：TE Connectivity AMP Connectors
• Package：Tube
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.079" (2.00mm)
• Number of Positions：20
• Number of Rows：2
• Row Spacing - Mating：0.130" (3.30mm)
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：-
• Contact Length - Post：0.122" (3.10mm)
• Overall Contact Length：-
• Insulation Height：0.465" (11.80mm)
• Contact Shape：Rectangular
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：-
• Contact Material：Copper Alloy
• Insulation Material：Thermoplastic, Polyester, Glass Filled
• Features：Solder Retention
• Operating Temperature：-55°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：3A
• Voltage Rating：-
