Product Detailed Parameters

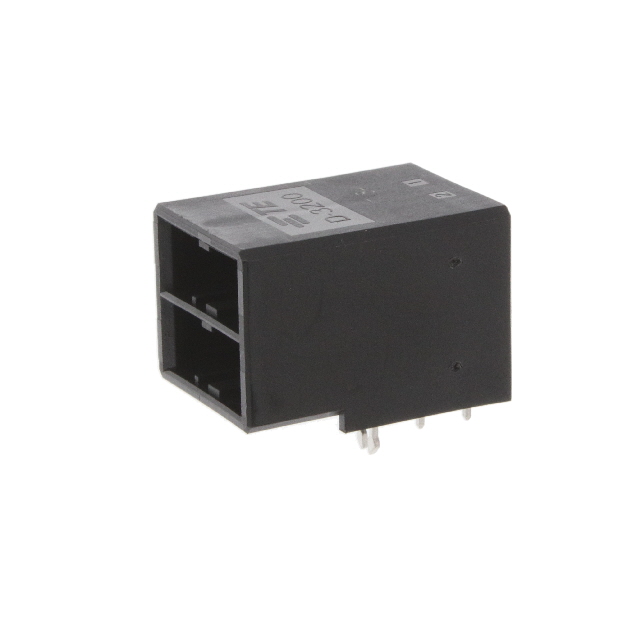

- Description：CONN HEADER R/A 4POS 5.08MM
- Series：Dynamic D3200M
- Mfr：TE Connectivity AMP Connectors
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.200" (5.08mm)
- Number of Positions：4
- Number of Rows：2
- Row Spacing - Mating：0.300" (7.62mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：-
- Contact Length - Mating：-
- Contact Length - Post：0.134" (3.40mm)
- Overall Contact Length：-
- Insulation Height：0.727" (18.47mm)
- Contact Shape：Rectangular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：15.0µin (0.38µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic, Polyester
- Features：Board Lock
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600V
