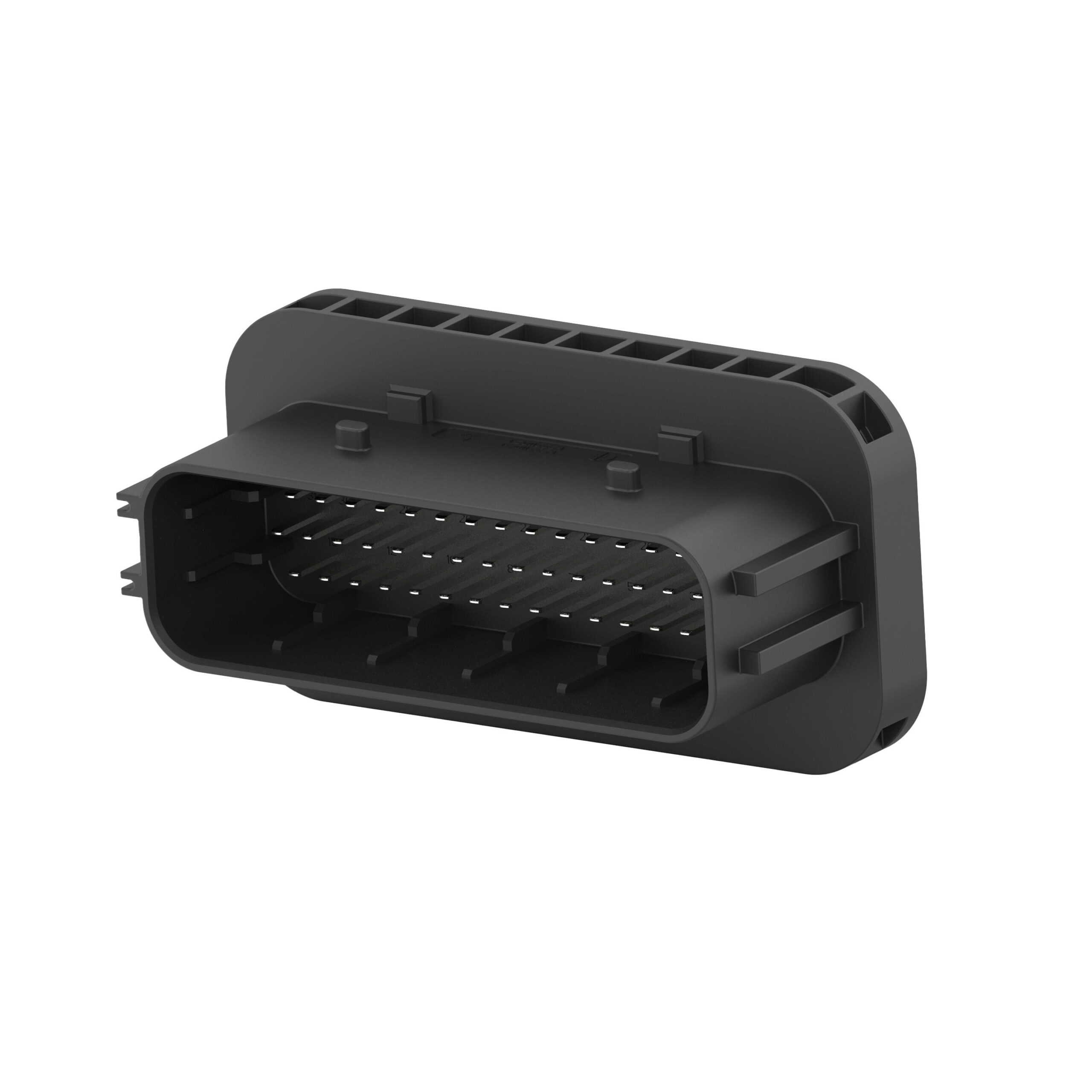

1-2331102-1
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：TAB HEADER 46POS.
- Series：-
- Mfr：TE Connectivity Deutsch Connectors
- Package：Tray
- Connector Type：Header
- Contact Type：Tab
- Pitch - Mating：0.157" (4.00mm)
- Number of Positions：46
- Number of Rows：3
- Row Spacing - Mating：0.177" (4.50mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：-
- Contact Length - Post：0.421" (10.69mm)
- Overall Contact Length：-
- Insulation Height：1.394" (35.40mm)
- Contact Shape：Rectangular
- Contact Finish - Mating：Silver
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
- Features：Board Guide, Mounting Flange, Sealed
- Operating Temperature：-40°C ~ 120°C
- Ingress Protection：IP68/IP6K9K
- Material Flammability Rating：-
- Insulation Color：Black
- Current Rating (Amps)：23A
- Voltage Rating：60VDC
