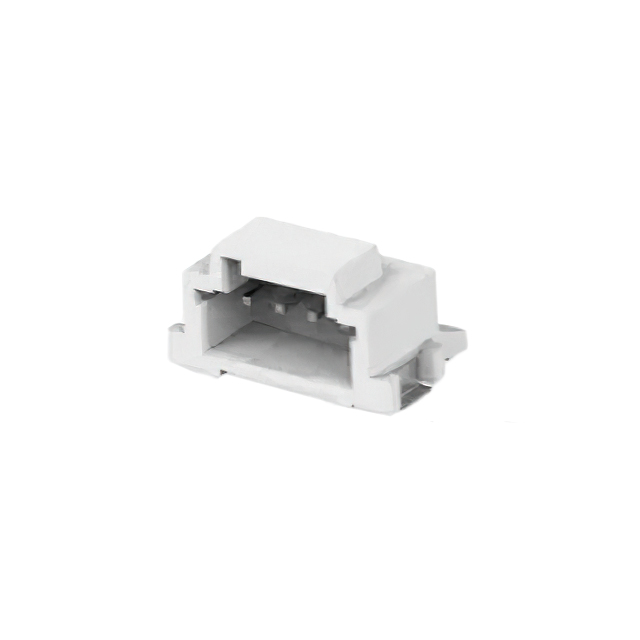

1-2336678-4

Product Detailed Parameters

• Description：SGI2.0 RA SMT HDR ASSY 4P,KEY A,
• Series：Grace Inertia 2.0
• Mfr：TE Connectivity AMP Connectors
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.079" (2.00mm)
• Number of Positions：4
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Surface Mount, Right Angle
• Termination：Solder
• Fastening Type：Latch Holder
• Contact Length - Mating：-
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：0.295" (7.50mm)
• Contact Shape：Square
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：78.7µin (2.00µm)
• Contact Finish - Post：Tin
• Contact Material：Brass
• Insulation Material：Polyamide (PA), Nylon
• Features：Glow Wire Compliant, Solder Retention
• Operating Temperature：-40°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Natural
• Current Rating (Amps)：-
• Voltage Rating：50VAC
