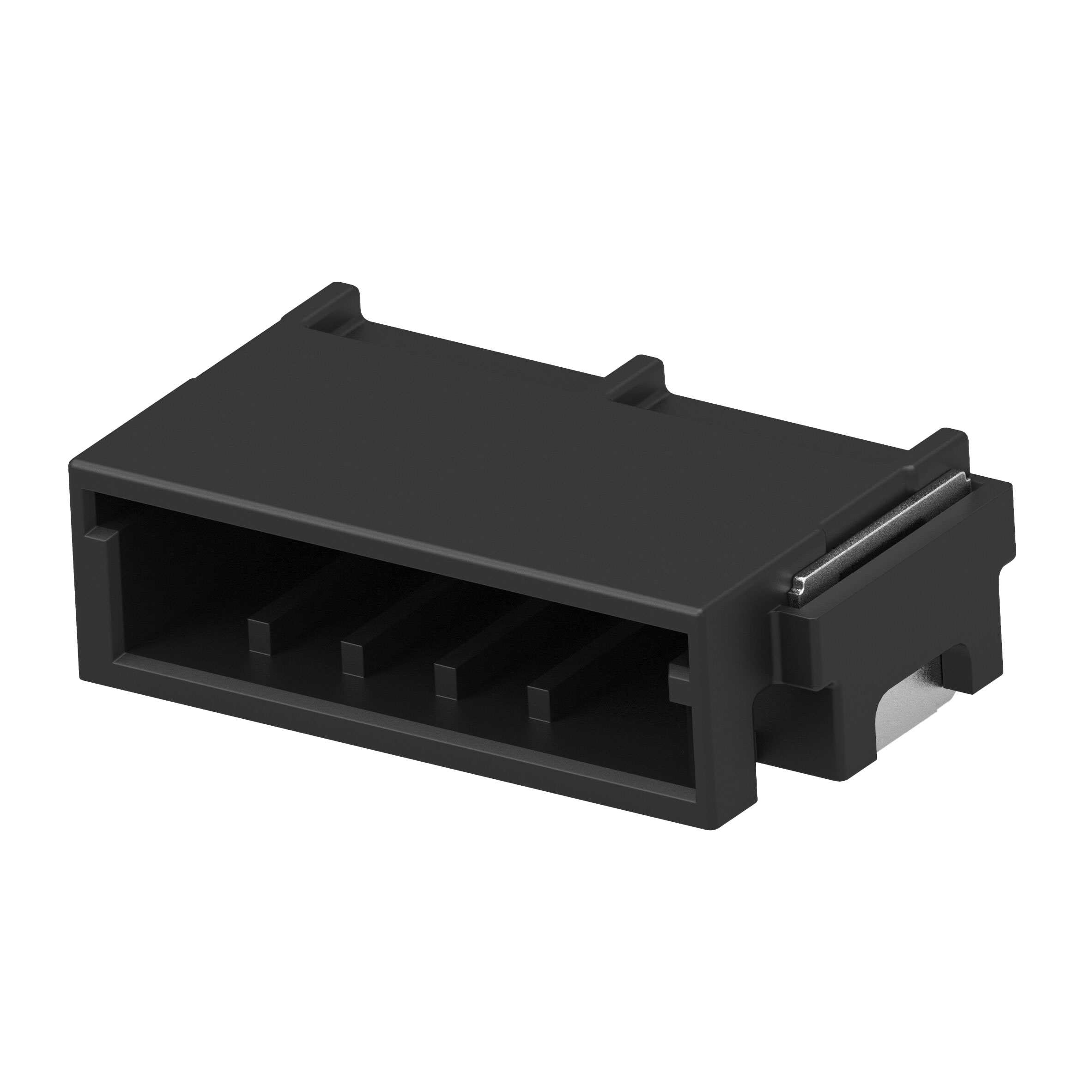

1-2339210-0
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：10POS,TAB0.5X0.4,HDR ASSY,90 DEG
- Series：Pico Micro Quadlok
- Mfr：TE Connectivity AMP Connectors
- Package：Tape & Reel (TR),Cut Tape (CT)
- Connector Type：Header
- Contact Type：Tab
- Pitch - Mating：0.050" (1.27mm)
- Number of Positions：10
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.157" (4.00mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.235" (5.97mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：39.4µin (1.00µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled
- Features：Solder Retention
- Operating Temperature：-40°C ~ 130°C
- Ingress Protection：-
- Material Flammability Rating：UL94 HB
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：12VDC
