Product Detailed Parameters

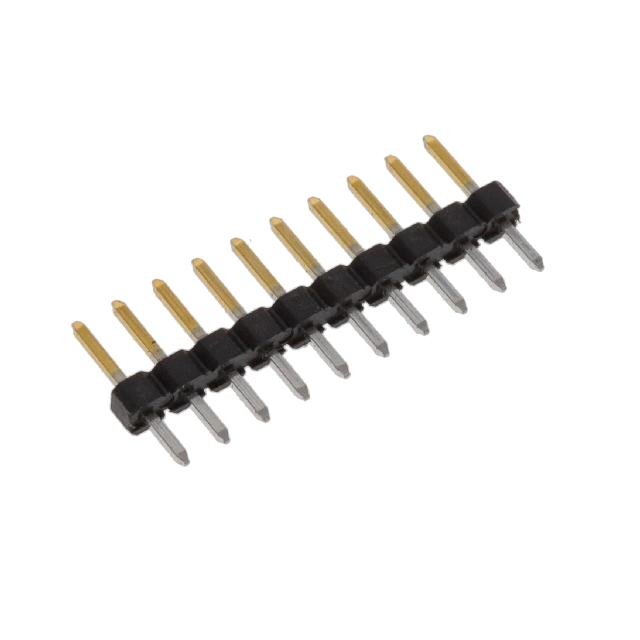

- Description：10P,2MM,BRK HDR,SRVT,2.8,0.76AU,
- Series：AMPMODU
- Mfr：TE Connectivity AMP Connectors
- Package：Tube,Tube
- Connector Type：Header, Breakaway
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：10
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.157" (4.00mm)
- Contact Length - Post：0.110" (2.79mm)
- Overall Contact Length：0.327" (8.30mm)
- Insulation Height：0.059" (1.50mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：Pick and Place
- Operating Temperature：-40°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2A
- Voltage Rating：125VAC/DC
