Product Detailed Parameters

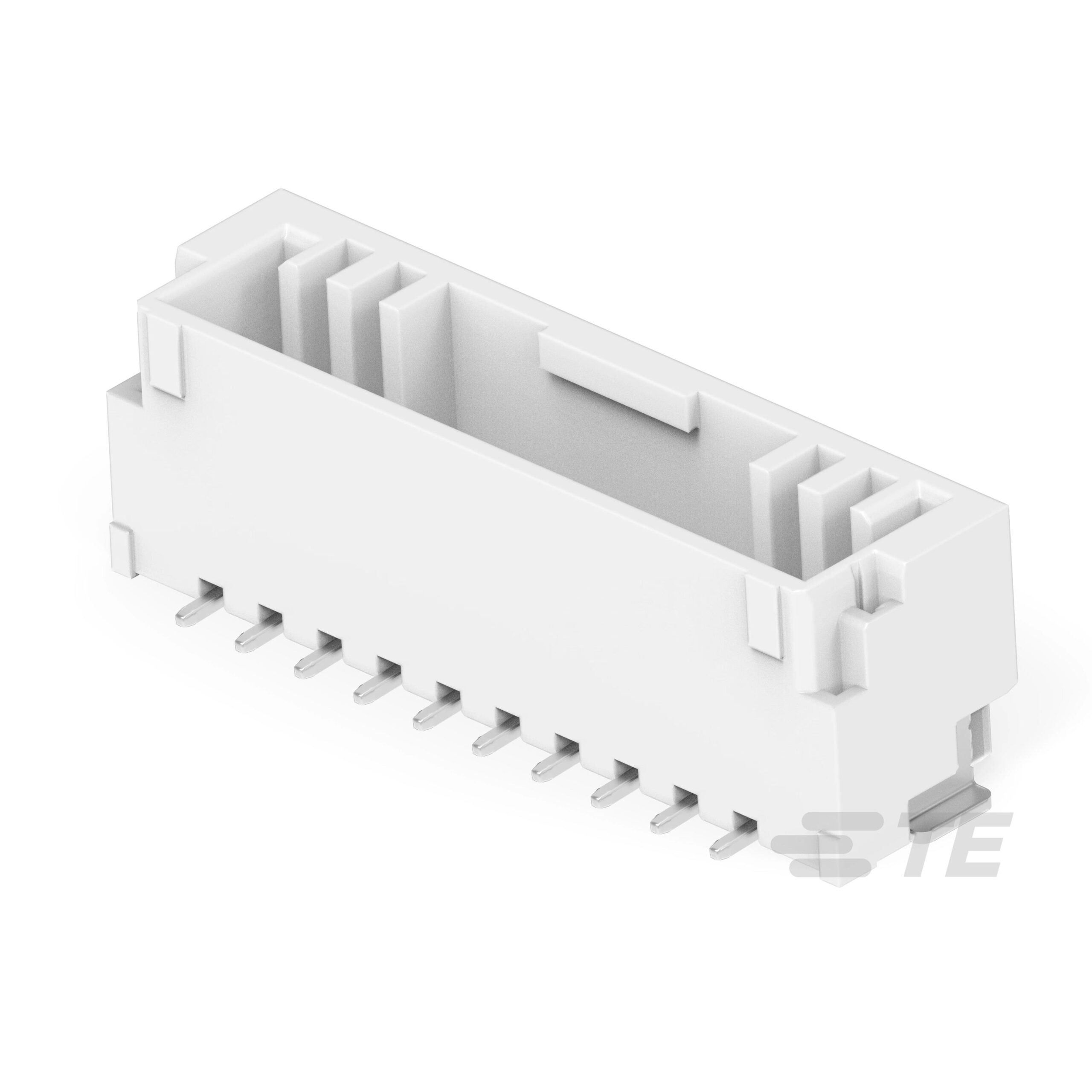

- Description：SGI 1.5 HDR, 10P, VT, KEY A, NAT
- Series：Grace Inertia, SGI
- Mfr：TE Connectivity AMP Connectors
- Package：Tape & Reel (TR),Cut Tape (CT)
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.059" (1.50mm)
- Number of Positions：10
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.232" (5.90mm)
- Contact Shape：Rectangular
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：39.4µin (1.00µm)
- Contact Finish - Post：-
- Contact Material：Brass
- Insulation Material：Polyamide (PA4T), Nylon 4T
- Features：Solder Retention
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：2A
- Voltage Rating：50VAC
