Product Detailed Parameters

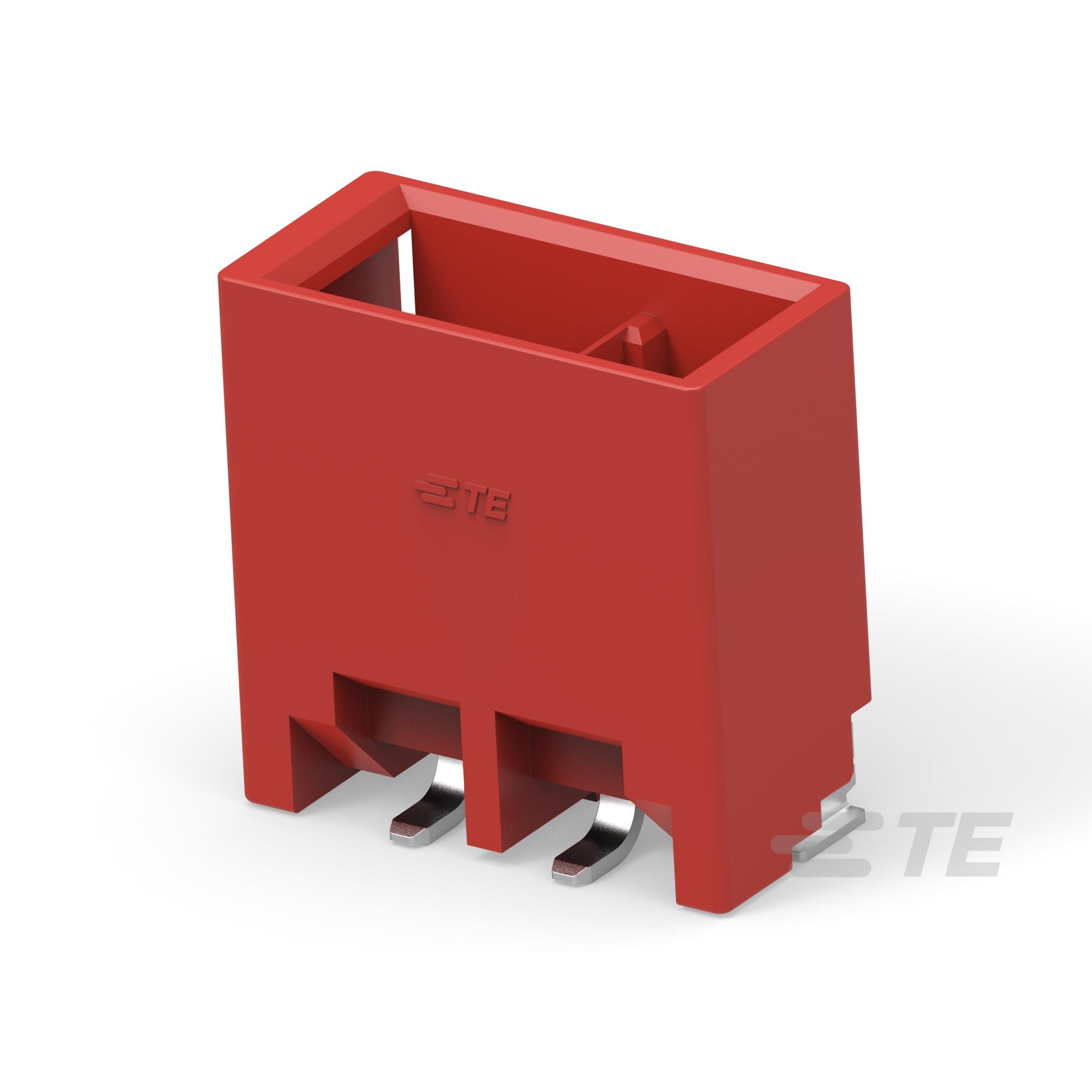

- Description：5.0 PK SMT, 2P HDR ASSY, RED
- Series：Power Key
- Mfr：TE Connectivity AMP Connectors
- Package：Tape & Reel (TR),Cut Tape (CT)
- Connector Type：Header
- Contact Type：Male Blade
- Pitch - Mating：0.197" (5.00mm)
- Number of Positions：2
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.593" (15.05mm)
- Contact Shape：Rectangular
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Red
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：300VAC
