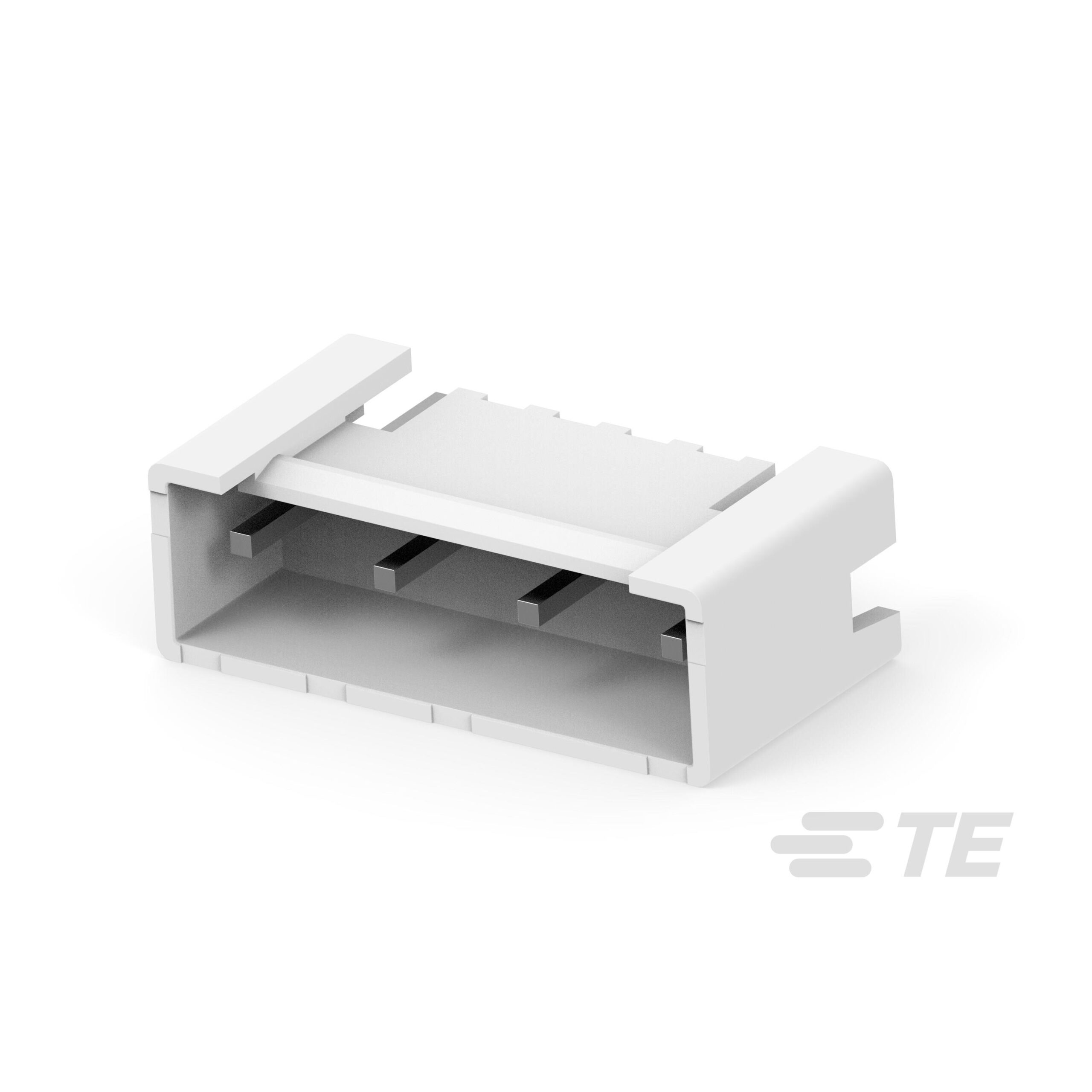

1-2375558-7
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：EP3.96 POTTED HEADER ,7P SELECTI
- Series：Economy Power
- Mfr：TE Connectivity AMP Connectors
- Package：Bag
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.156" (3.96mm)
- Number of Positions：7
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：4
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：0.264" (6.70mm)
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.622" (15.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：78.7µin (2.00µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Resin
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：12.3A
- Voltage Rating：600VAC
