1-2378180-1
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters

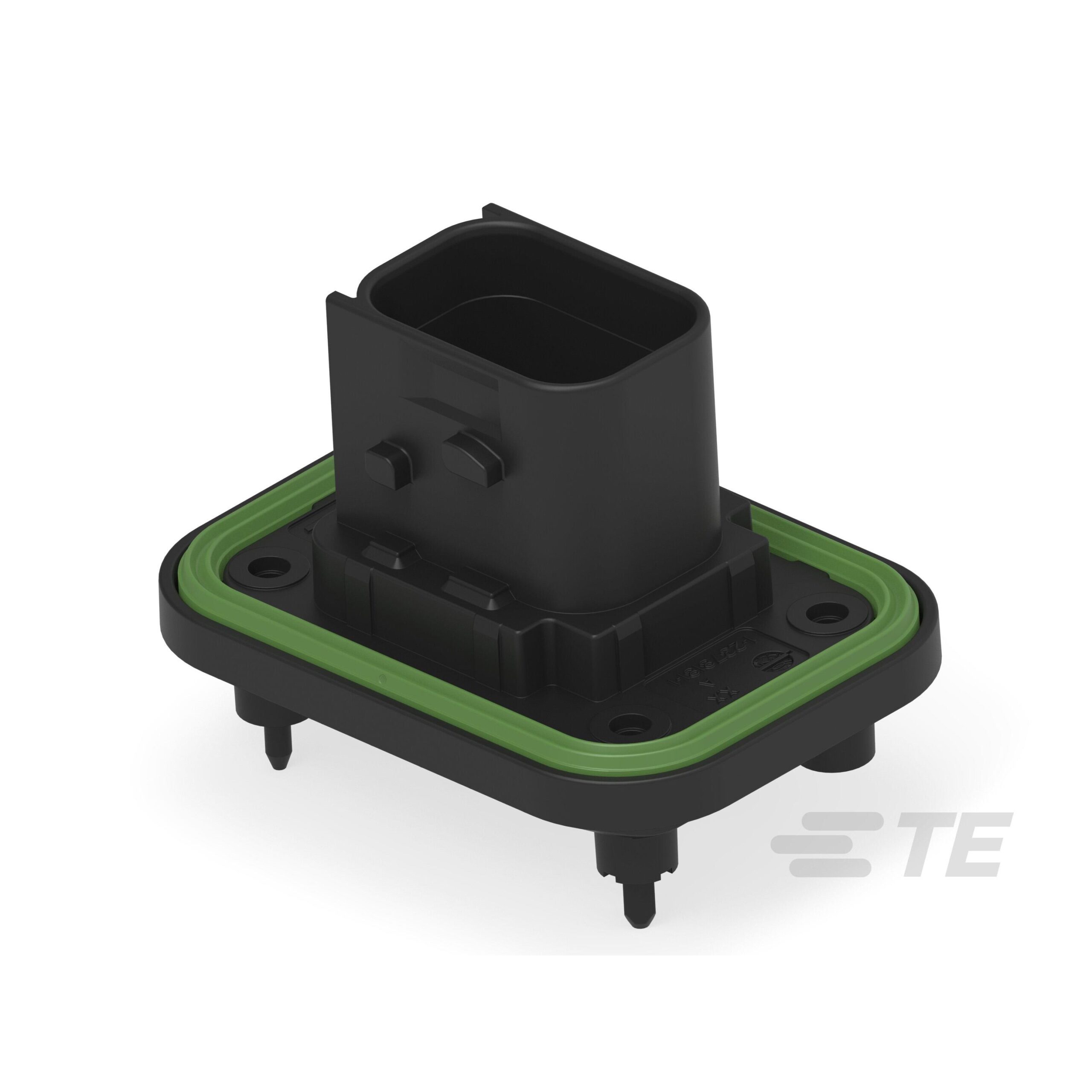

- Description：7POS,HYBRID,HDR ASSY,180DEG,COD
- Series：Heavy Duty Sealed Connector Series, MCP
- Mfr：TE Connectivity Deutsch Connectors
- Package：Box
- Connector Type：Header
- Contact Type：Tab
- Pitch - Mating：-
- Number of Positions：7
- Number of Rows：2
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Rectangular
- Contact Finish - Mating：Silver
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
- Features：-
- Operating Temperature：-40°C ~ 140°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：20A
- Voltage Rating：-
