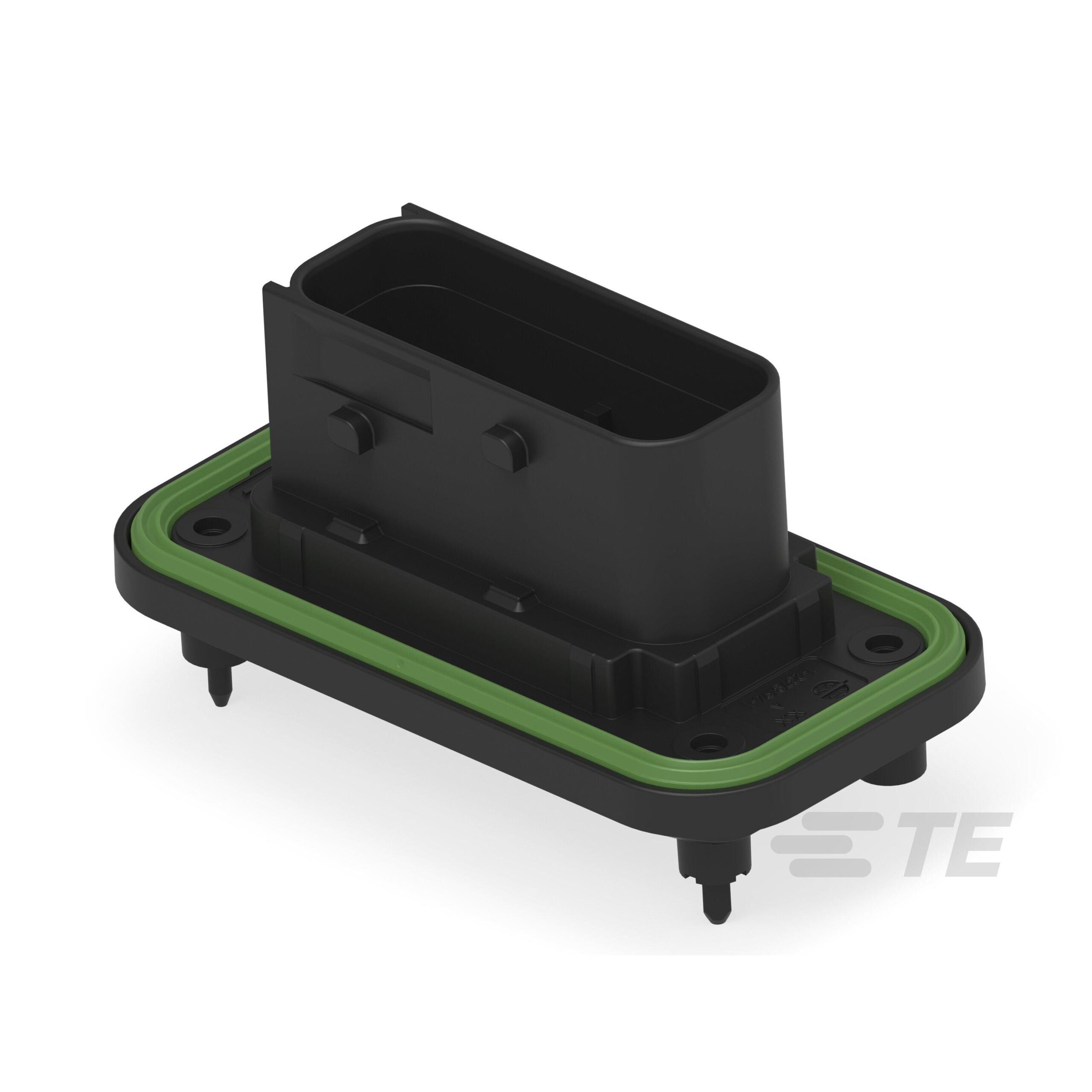

1-2378191-1

Product Detailed Parameters

• Description：15POS,HYBRID,HDR ASSY,180DEG,COD
• Series：Heavy Duty Sealed Connector Series, MCP
• Mfr：TE Connectivity Deutsch Connectors
• Package：Box
• Connector Type：Header
• Contact Type：Female Socket
• Pitch - Mating：0.236" (6.00mm)
• Number of Positions：15
• Number of Rows：2
• Row Spacing - Mating：0.236" (6.00mm)
• Number of Positions Loaded：All
• Style：Board to Board
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Panel Mount, Through Hole
• Termination：Solder
• Fastening Type：Latch Lock
• Contact Length - Mating：-
• Contact Length - Post：0.122" (3.10mm)
• Overall Contact Length：-
• Insulation Height：1.425" (36.20mm)
• Contact Shape：Circular
• Contact Finish - Mating：Silver
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：-
• Contact Material：Copper Alloy
• Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
• Features：Guide Pin
• Operating Temperature：-40°C ~ 140°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：20A
• Voltage Rating：-
