1-2443552-1

Overview

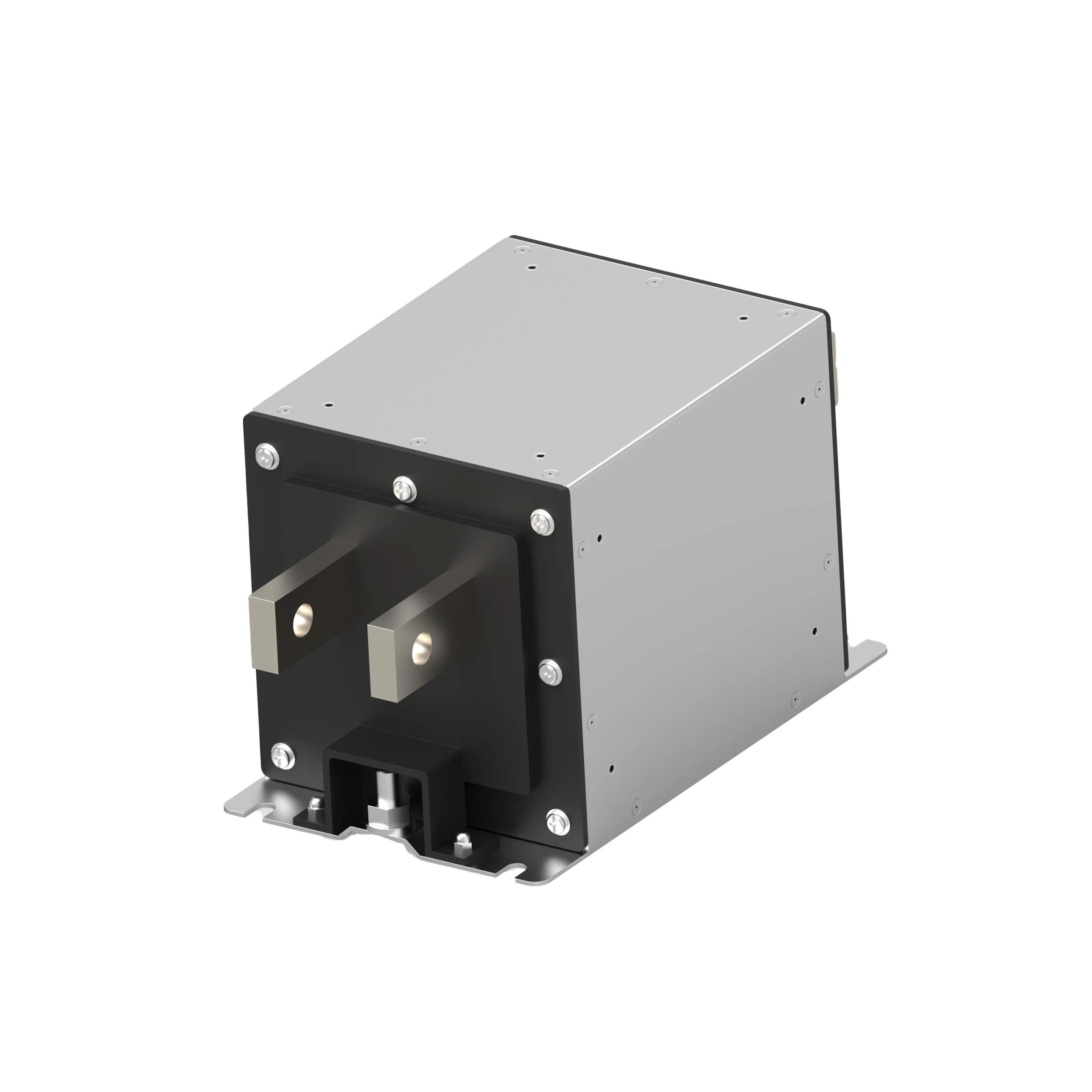

The TE Connectivity Corcom Filters 1-2443552-1 is a high-voltage DC EMI filter belonging to the EVX series. It is rated for 500 VDC and supports a current capacity of 450 A. Designed as a two-stage filter, it provides effective electromagnetic interference attenuation for electric vehicle charging applications. The unit utilizes chassis mount installation with busbar termination style.

Feature Summary

• Provides effective EMI attenuation in high-voltage DC environments
• Designed specifically for electric vehicle charging applications
• Features a two-stage filtering configuration

Applications

• Electric vehicle charging systems

Procurement Notes

Verify the exact part number against official manufacturer documentation before procurement. Confirm that the 450 A rating and 500 VDC specifications match your system requirements. Ensure compatibility with busbar termination styles and chassis mounting constraints. Check for any recent product lifecycle changes or obsolescence notices directly from the supplier.

Selection Notes

Select this component when high-current DC filtering is required for EV infrastructure. The 450 A rating distinguishes it from lower-capacity industrial filters. Verify that the two-stage design meets specific noise suppression needs. Ensure the physical dimensions and busbar interface align with the existing power distribution architecture.

Part Context

This component is part of the EVX series from TE Connectivity Corcom Filters, which specializes in high-power solutions. The series targets demanding applications requiring robust EMI protection in direct current circuits. It complements other AC line filters by addressing the specific noise profiles generated in high-voltage DC power transmission systems.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
