1-2443552-2

Overview

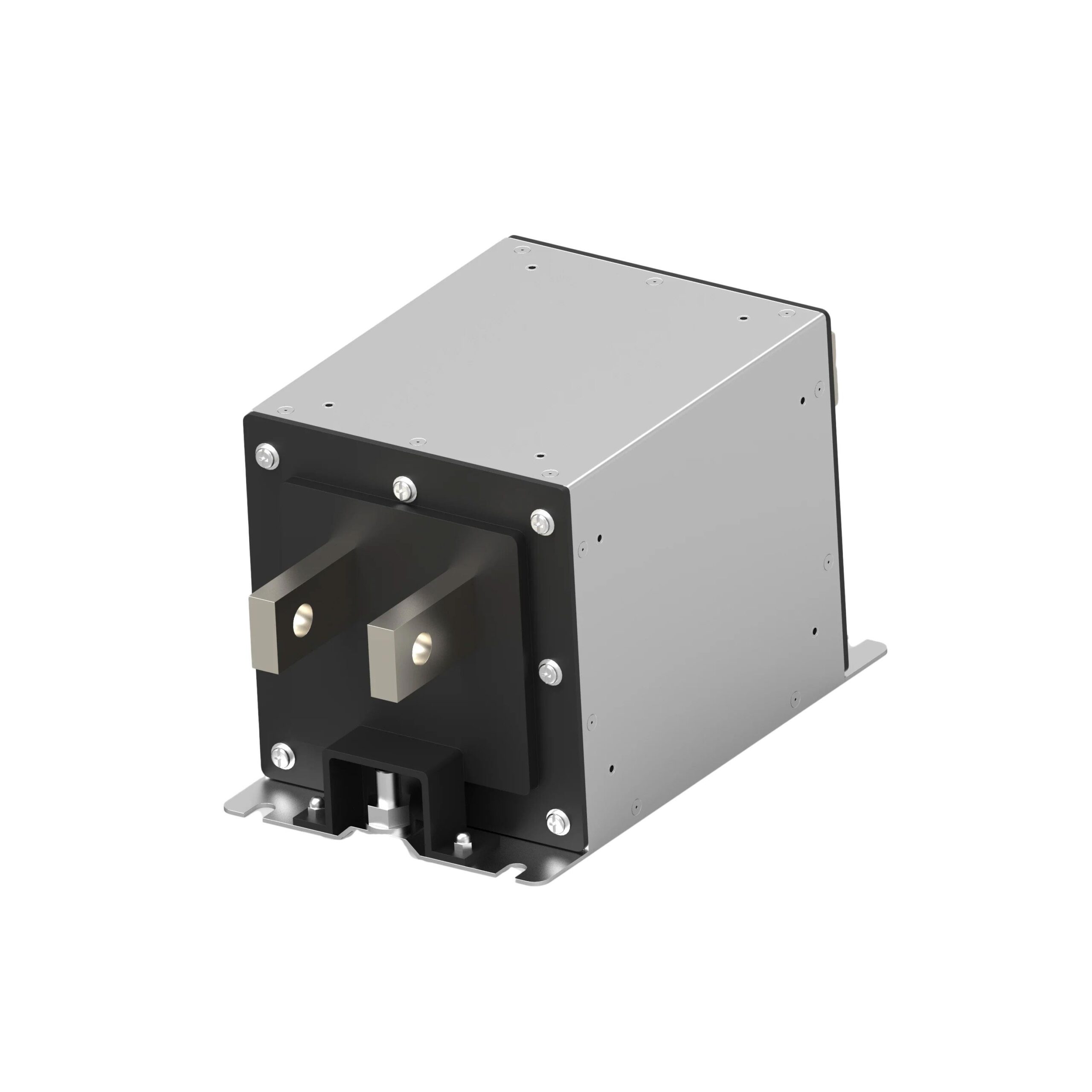

The TE Connectivity Corcom Filters 1-2443552-2 is a high-voltage DC EMI filter from the EVX series, rated for 500 VDC and 450 A. It features busbar input and output terminals with chassis mount installation. Designed as a two-stage filter, it provides effective electromagnetic interference attenuation for demanding power applications.

Feature Summary

• High current handling capability of 450 A
• Two-stage EMI/RFI filtering architecture
• Busbar terminal configuration for low impedance connections

Applications

• Electric vehicle charging systems
• High-power DC power conditioning
• Industrial DC motor drives

Procurement Notes

Verify the specific current rating against your system requirements, as datasheets may list variations such as 600 A or 450 A for similar part numbers in this series. Confirm that the busbar interface matches your mechanical layout. Check component lifecycle status to ensure long-term availability for production.

Selection Notes

Select this component when high current DC filtering is required in a compact chassis-mount form factor. The EVX series offers robust performance for electric mobility and industrial sectors. Ensure the voltage rating of 500 VDC exceeds the maximum system operating voltage with appropriate safety margins.

Part Context

This component belongs to the EVX series by TE Connectivity Corcom Filters, specialized for high-power DC applications. The series is engineered for electric vehicle infrastructure and heavy-duty industrial equipment, emphasizing high current capacity and efficient noise suppression in direct current circuits.

Replacement Considerations

Consult the manufacturer's selector guide for alternative EVX series models with different current ratings. Verify compatibility with existing busbar dimensions and mounting hole patterns before substituting.
