1-2443552-3

Overview

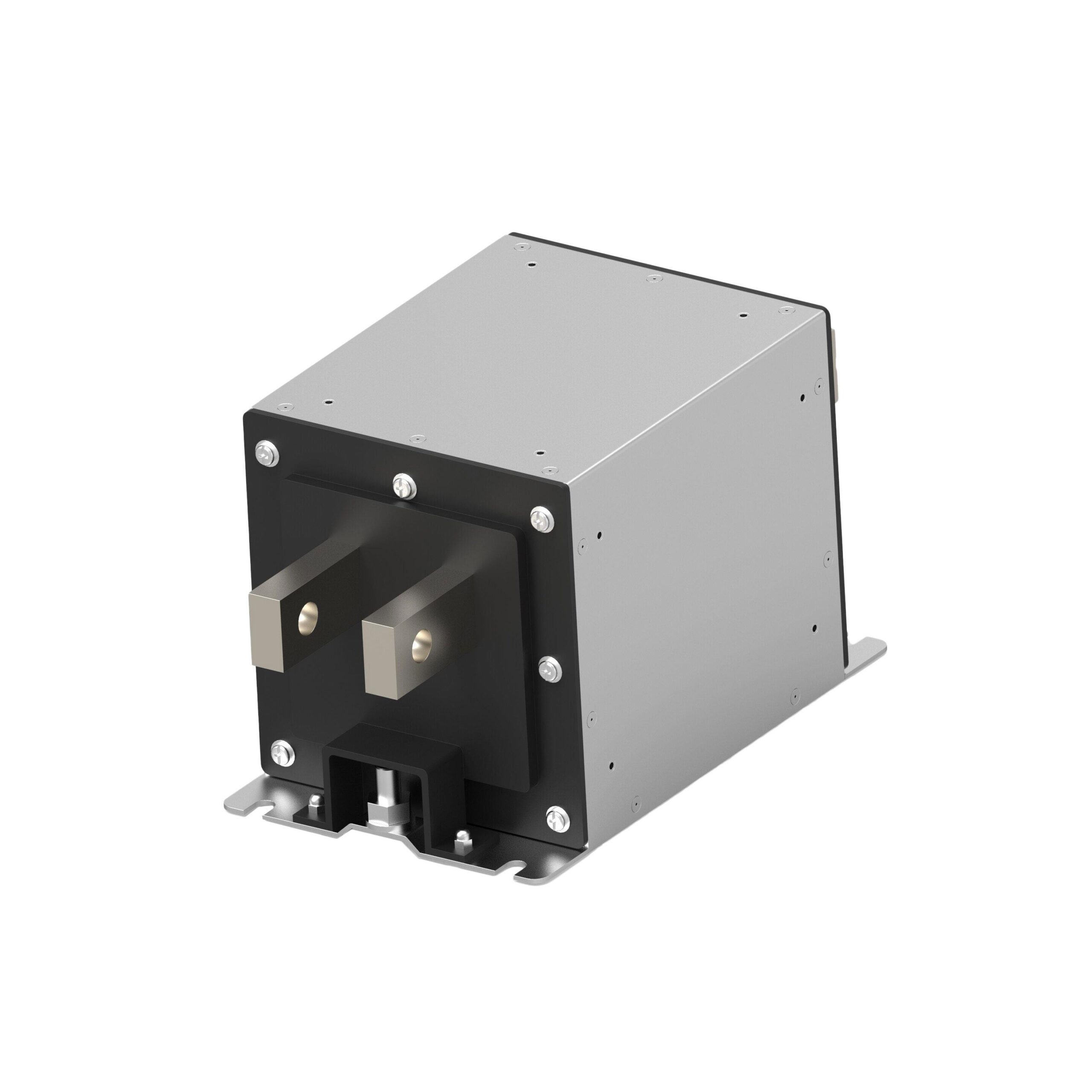

The TE Connectivity Corcom Filters 1-2443552-3 is a high-voltage DC EMI filter belonging to the EVX series. It features a chassis mount style with busbar input and output connections, designed for robust industrial and electric vehicle applications. The component supports a rated current of 600 A at a voltage rating of 500 VDC. Operating at 0 Hz, it provides effective electromagnetic interference attenuation in demanding power environments.

Feature Summary

• Designed for high-voltage direct current applications
• Utilizes busbar termination for high-current connectivity
• Chassis mount configuration for secure installation

Applications

• Electric vehicle charging systems
• High-power DC power conditioning
• Industrial DC power distribution

Procurement Notes

Verify the specific part number suffix against official TE Connectivity documentation to ensure correct configuration. Confirm that the busbar dimensions and mounting hole patterns match the target chassis design. Check for any recent product change notices or end-of-life announcements prior to finalizing procurement plans.

Selection Notes

Select this component when high continuous current handling and low impedance DC filtering are required. Ensure the system voltage does not exceed the 500 VDC rating. Verify that the physical space allows for chassis mounting and that the busbar interface aligns with existing cable or rail infrastructure.

Part Context

This component is part of the Corcom EVX series, which specializes in high-performance DC line filters. The series is engineered for applications requiring significant current capacity and reliable noise suppression in direct current circuits, distinguishing it from AC-focused filter lines.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data.
