1-2443552-4

Overview

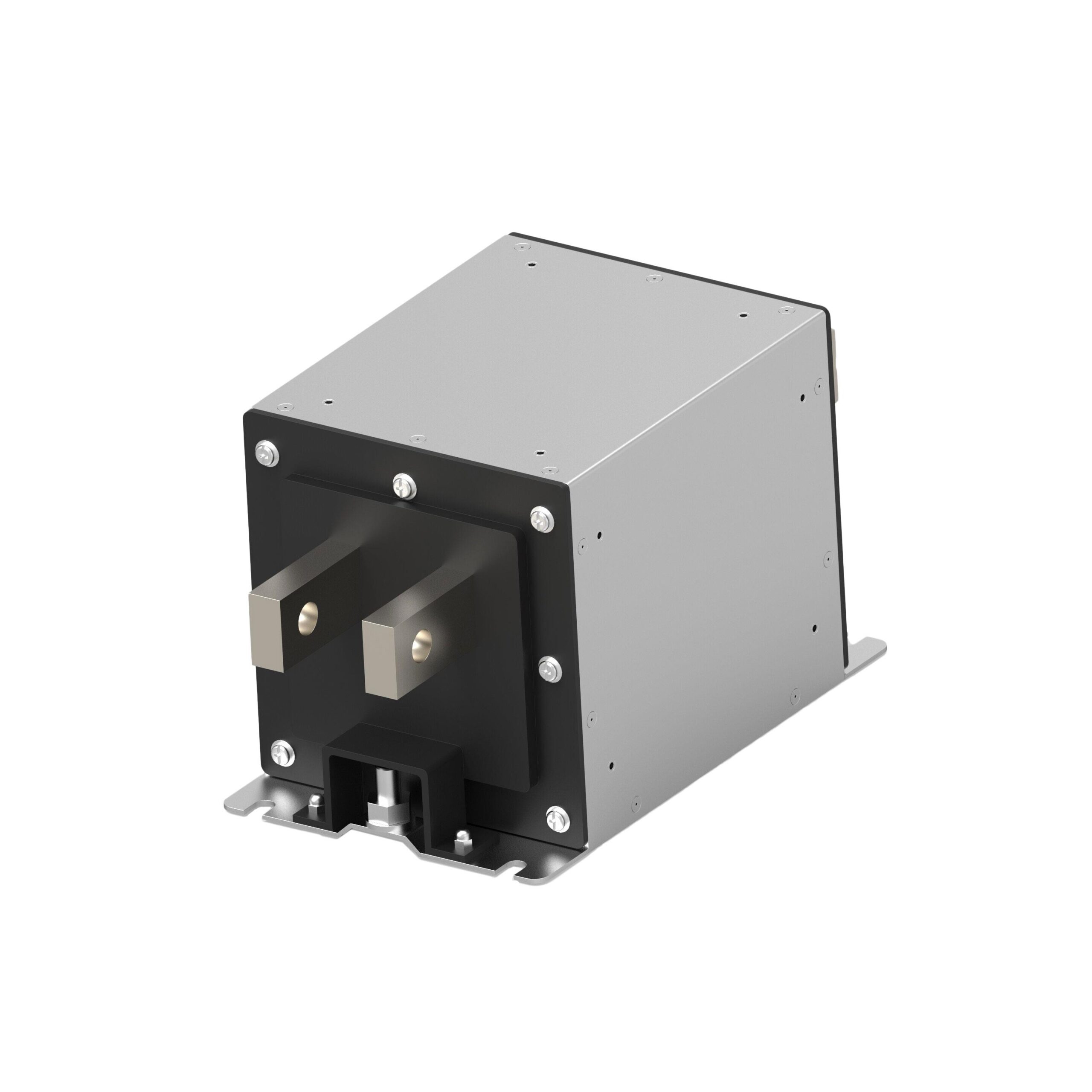

The TE Connectivity Corcom Filters 1-2443552-4 is a high-voltage DC EMI filter belonging to the EVX series. It features a two-stage configuration designed for electric vehicle charging applications. The unit provides effective EMI attenuation with a rated current of 600 A and a voltage rating of 500 VDC. It utilizes bus bar input and output terminals for chassis mounting.

Feature Summary

• High-voltage DC EMI filtering capability
• Two-stage attenuation design
• Bus bar terminal interface

Applications

• Electric vehicle charging systems
• High-power DC power distribution
• Industrial DC equipment

Procurement Notes

Verify component authenticity through authorized channels. Confirm datasheet version matches project requirements. Check RoHS compliance status. Ensure bus bar dimensions align with mechanical constraints. Validate thermal management needs for 600 A operation.

Selection Notes

Select based on 600 A current capacity and 500 VDC rating. Ensure compatibility with existing bus bar infrastructure. Consider two-stage attenuation requirements for specific EMI standards. Verify chassis mounting space availability.

Part Context

Part of the Corcom EVX series, designed for demanding DC environments. Focuses on high-current handling and robust EMI suppression. Targets automotive and industrial sectors requiring reliable power quality.

Replacement Considerations

No public confirmed substitute part numbers available.
