1-2443552-5

Overview

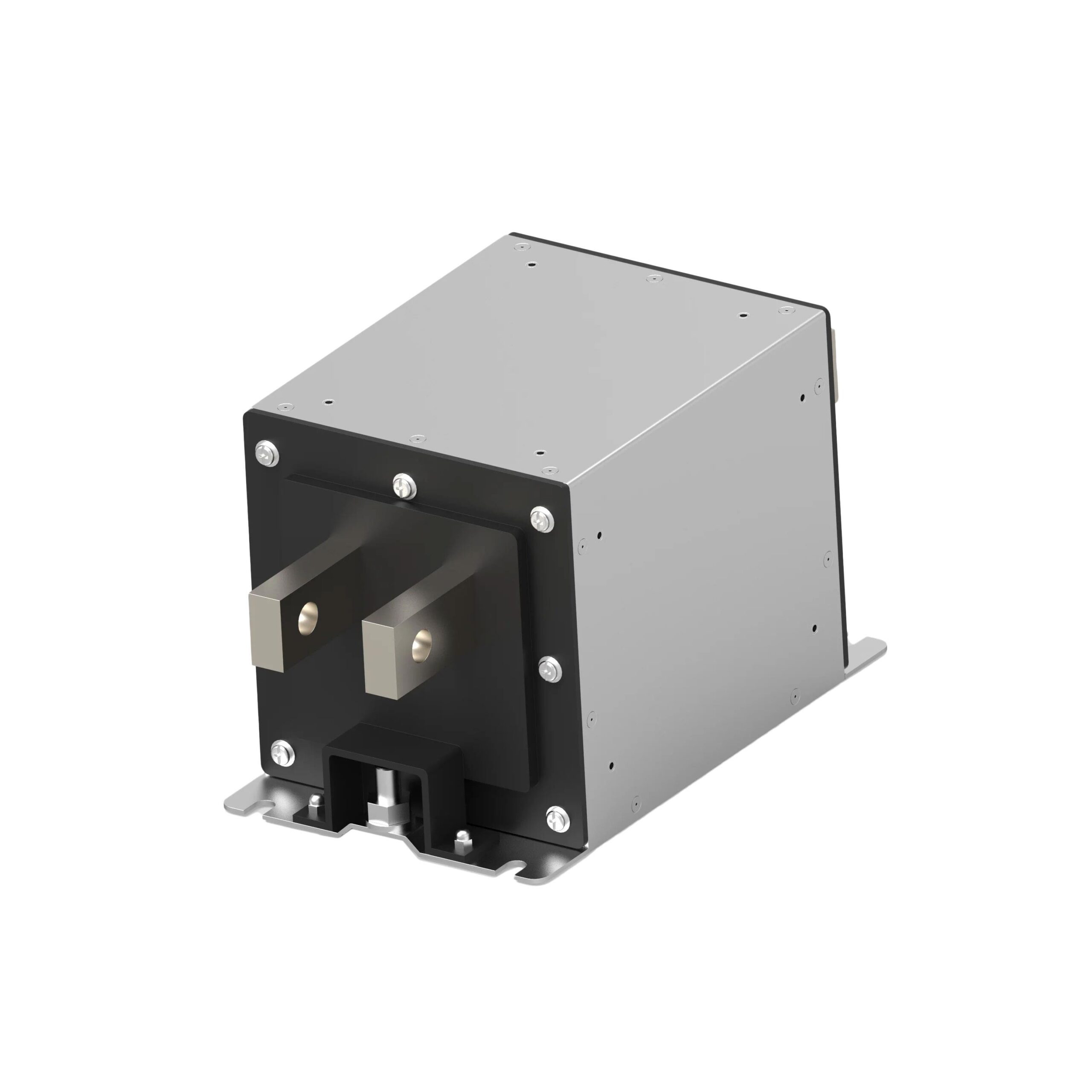

The TE Connectivity Corcom Filters part number 1-2443552-5 is a high-voltage DC EMI filter belonging to the EVX series. It features a chassis mount installation style with busbar termination for robust electrical connections. The component has a voltage rating of 500 VDC and a current rating of 600 A. Designed for demanding environments, it operates within a temperature range of -40°C to +100°C. The unit measures 200 mm in length, 122 mm in width, and 128 mm in height. It is packaged in bulk quantities.

Feature Summary

• Provides effective electromagnetic interference attenuation specifically engineered for electric vehicle charging applications.
• Features a chassis mount design utilizing busbar terminations to ensure secure and reliable high-current connections.
• Capable of operating reliably under extreme thermal conditions ranging from -40°C to +100°C.

Applications

• Electric vehicle (EV) charging systems
• High-voltage DC power conditioning
• Industrial power line filtering

Procurement Notes

Verify the specific manufacturing date code and lot traceability upon order confirmation, as this component may be subject to production lifecycle changes. Confirm that the busbar dimensions and mounting hole patterns match your chassis requirements precisely before finalizing procurement. Ensure compliance with relevant safety standards applicable to your specific deployment region.

Selection Notes

Select this component when a high-current DC filter rated at 600 A is required for electric vehicle infrastructure. The EVX series offers specialized attenuation characteristics suitable for high-voltage environments. Consider the physical dimensions and chassis mount configuration during the mechanical integration phase to ensure proper fitment within the designated enclosure space.

Part Context

This model belongs to the EVX series of power line filters manufactured by TE Connectivity Corcom Filters. The series is designed to address the stringent electromagnetic compatibility requirements found in modern electric mobility solutions. These filters are integral components in managing noise and ensuring stable power delivery in high-power direct current circuits.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official manufacturer channels for potential obsolescence management or equivalent product recommendations if this specific part number becomes unavailable.

FAQ

What is the maximum operating temperature for this filter?

The maximum operating temperature for the 1-2443552-5 filter is +100°C.

Does this filter use wire leads or busbars for connection?

This filter utilizes busbar terminations for connection rather than wire leads.
