1-2443552-8

Overview

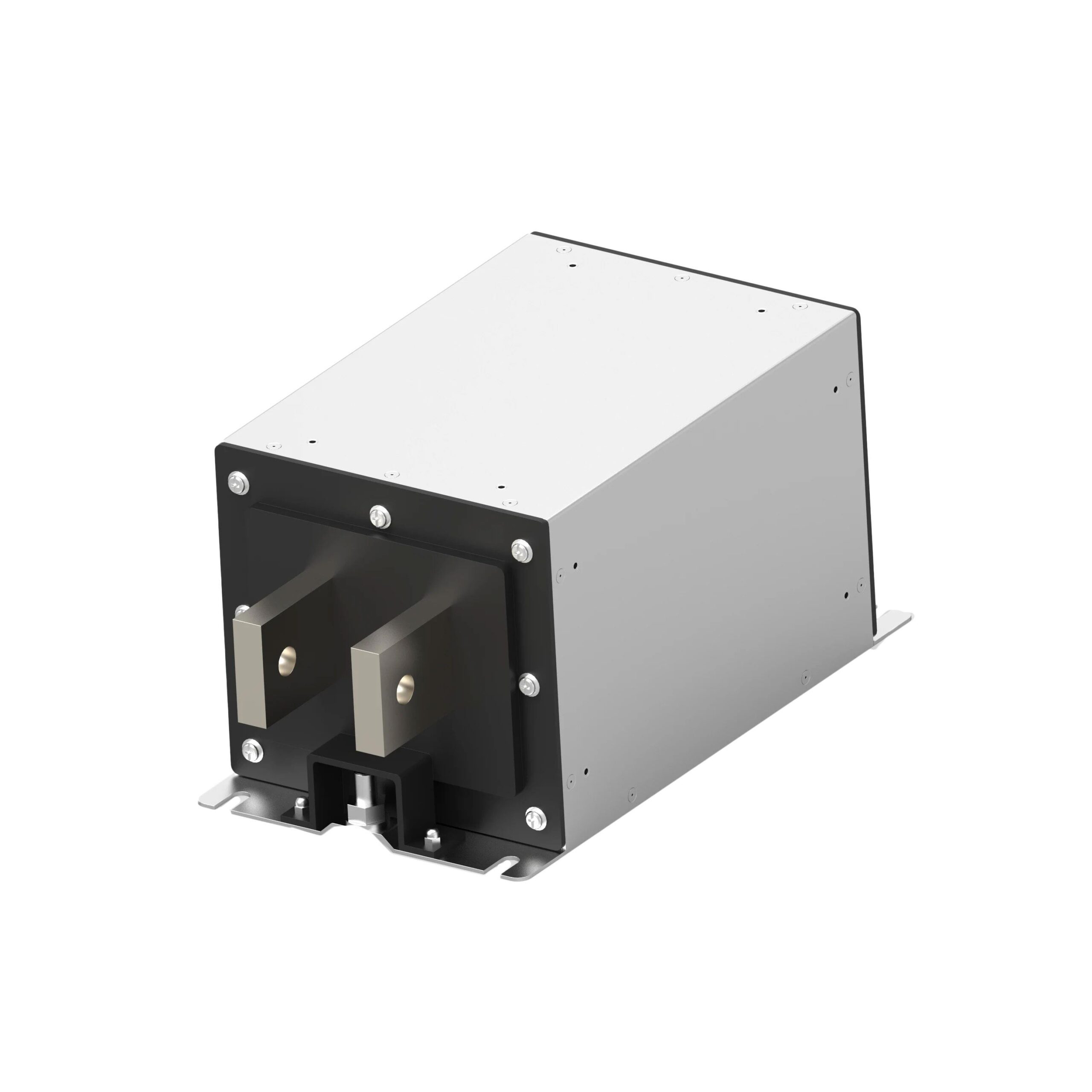

The 1-2443552-8 is a DC EMI filter from the EVX series, rated for 1 kVDC and 600 A. It features chassis mount installation with busbar termination. The component provides two-stage attenuation for electric vehicle charging applications.

Feature Summary

• Designed for high-voltage DC power line filtering in electric vehicle infrastructure
• Provides effective electromagnetic interference attenuation through a two-stage configuration
• Engineered for robust performance in demanding automotive and industrial environments

Applications

• Electric vehicle (EV) charging stations
• High voltage DC power distribution systems
• Industrial equipment requiring DC noise suppression

Procurement Notes

Verify the specific current rating against official datasheets, as conflicting data exists between 600 A and 1 kA sources. Confirm end-of-life status and availability directly with TE Connectivity or authorized distributors before finalizing procurement plans.

Selection Notes

Select this component for applications requiring high-current DC filtering up to 1 kVDC. Ensure the system design accommodates chassis mounting and busbar connections. Verify thermal management requirements given the high current capacity and operating temperature range.

Part Context

This part belongs to the EVX series of high-voltage DC filters by TE Connectivity Corcom Filters. The series targets electric mobility and energy storage sectors, offering robust EMI/RFI suppression solutions for critical power electronics interfaces.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult TE Connectivity technical support for direct replacements or cross-reference options.
