1-2443552-9

Overview

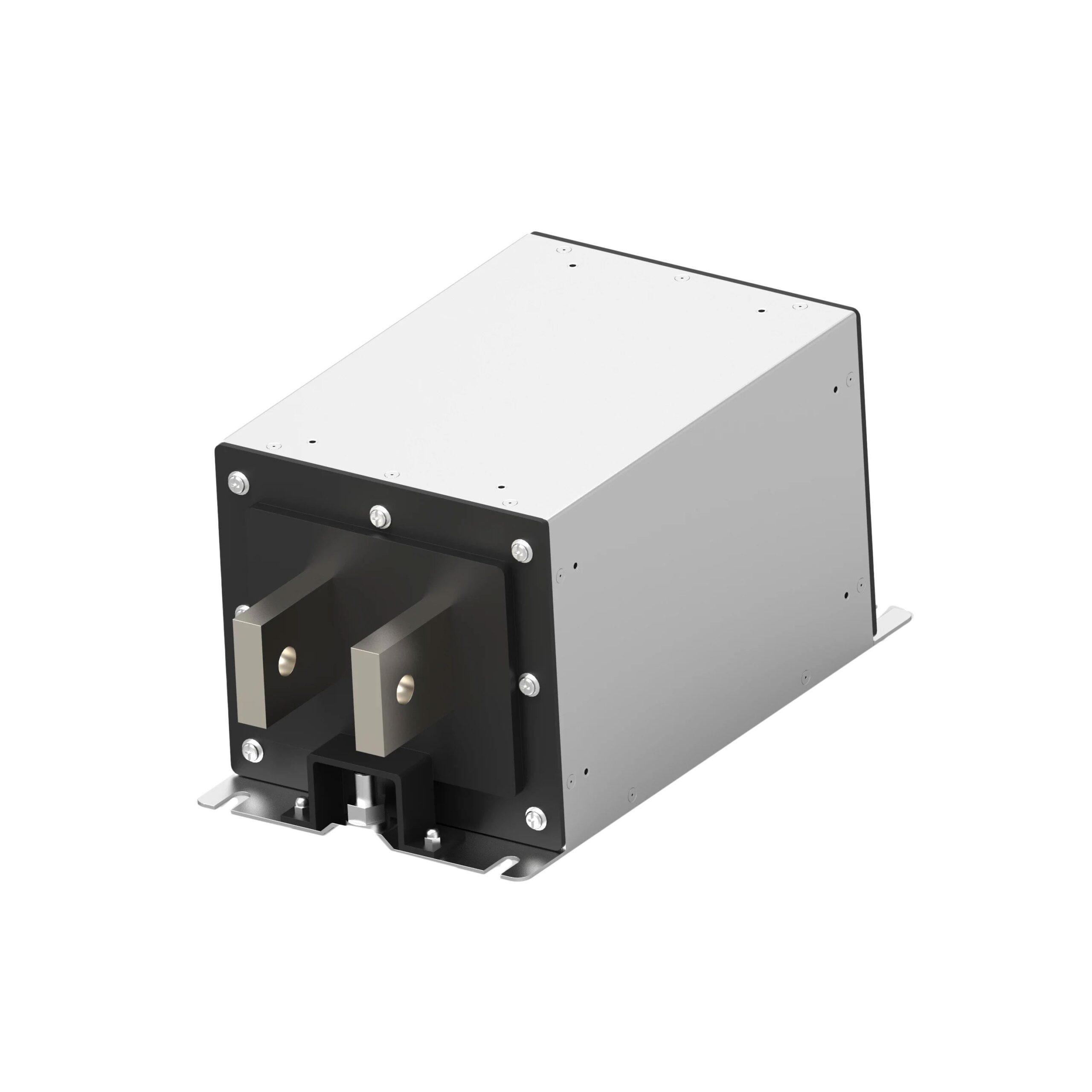

The TE Connectivity Corcom Filters 1-2443552-9 is a DC EMC/EMI line filter belonging to the EVX series. It features a two-stage configuration designed for high-current applications, rated at 1 kA and 500 VDC. The unit utilizes chassis mount installation with terminal post termination. Physical dimensions are 250 mm in length, 140 mm in width, and 130 mm in height. It holds UL approval.

Feature Summary

• Two-stage DC EMI filtering architecture
• High current capacity of 1 kA
• Chassis mount construction
• Terminal post termination style

Applications

• Industrial power systems
• DC power distribution networks
• Electrical equipment requiring EMI suppression

Procurement Notes

Verify the specific suffix designation against official documentation, as variations exist within the EVX series. Confirm that the terminal post termination matches the system busbar requirements. Ensure the 500 VDC rating aligns with the circuit voltage. Check for any recent product change notices regarding manufacturing locations or component updates.

Selection Notes

Select this component when a robust DC filter capable of handling 1 kA is required. The chassis mount design suits heavy-duty industrial enclosures. Verify that the physical footprint of 250x140x130 mm fits the available space. Ensure the terminal post interface is compatible with the existing wiring harness or busbar connections.

Part Context

This part belongs to the Corcom EVX series, which specializes in high-performance DC power line filters. The series is engineered for demanding environments where significant electromagnetic interference must be suppressed in high-amperage DC circuits. The manufacturer focuses on durable construction for industrial reliability.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
