1-2443554-0

Overview

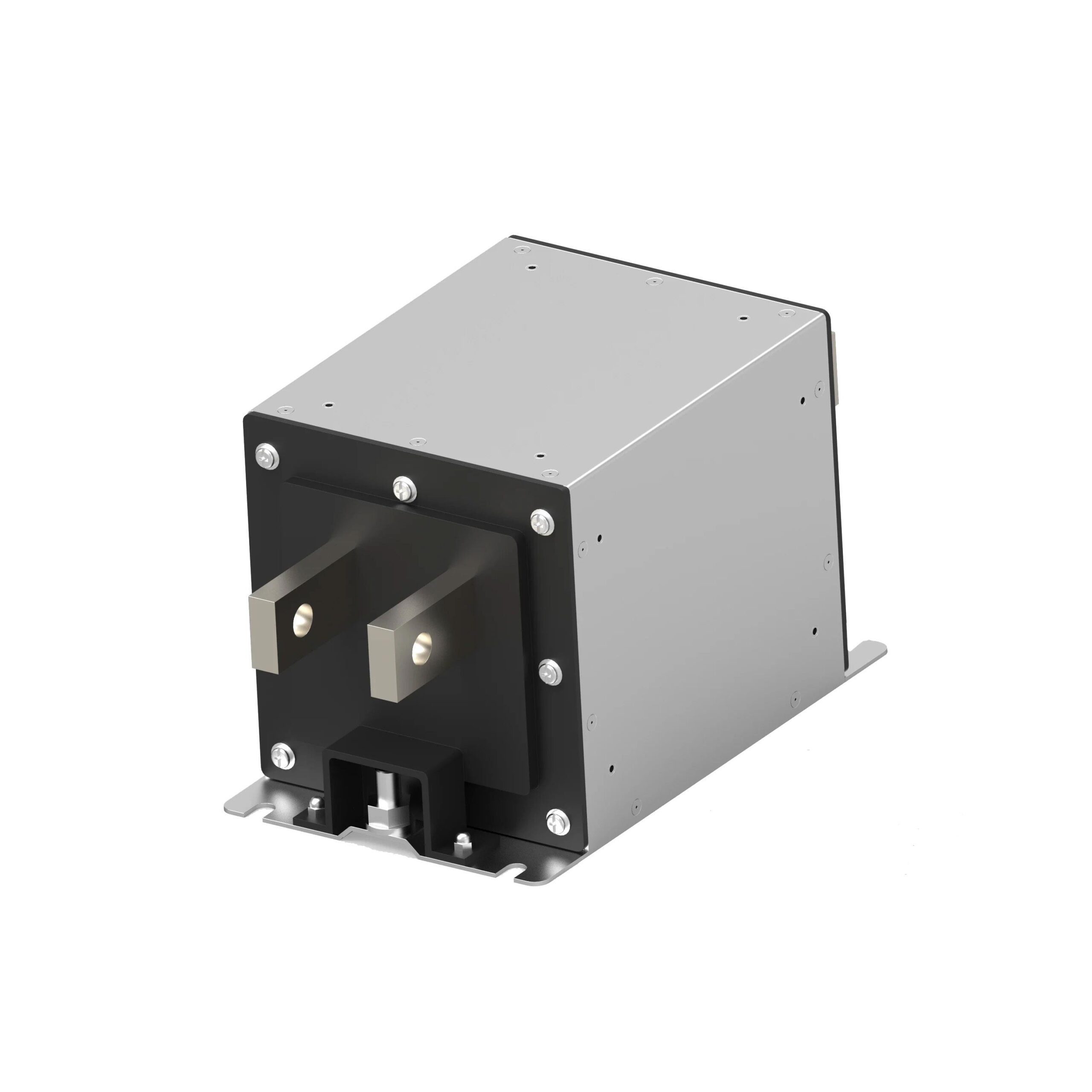

The TE Connectivity Corcom Filters model 1-2443554-0 is a DC EMI filter belonging to the EVX series. It features a voltage rating of 1 kVDC and a current rating of 450 A. The component utilizes busbar termination for both input and output connections. Designed for chassis mounting, it supports high-power applications ranging from 75kW to 2.4MW.

Feature Summary

• Engineered for high-voltage direct current electromagnetic interference suppression
• Supports high-power fast charging infrastructure requirements
• Utilizes robust busbar termination for secure electrical connections

Applications

• Electric vehicle (EV) charging stations
• High-power DC fast chargers
• Industrial power conditioning systems

Procurement Notes

Verify the specific suffix designation against official TE Connectivity documentation to confirm exact electrical characteristics and physical dimensions. Ensure compatibility with existing chassis mounting hardware and busbar configurations before integration into high-voltage DC systems.

Selection Notes

Select this component when designing systems requiring significant attenuation of conducted emissions in high-voltage DC environments. Confirm that the 450 A current capacity and 1 kVDC voltage rating align with the specific load and insulation requirements of the target application architecture.

Part Context

This part belongs to the EVX series of high-voltage DC filters manufactured by TE Connectivity under the Corcom brand. The series is specifically engineered to address the stringent electromagnetic compatibility needs of modern electric mobility and industrial power electronics sectors.

Replacement Considerations

Consult official manufacturer substitution guides for verified alternative part numbers within the EVX series or equivalent product lines that meet identical voltage, current, and form-factor specifications.
