Product Detailed Parameters
- Description：LINE FLTR 1000VDC 450A CHASS MNT
- Series：EVX
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：DC
- Configuration：Two Stage
- Voltage - Rated DC：1000V (1kV)
- Voltage - Rated AC：-
- Current：450 A
- Frequency - Operating：DC
- Applications：Converter
- Approval Agency：UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Post
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

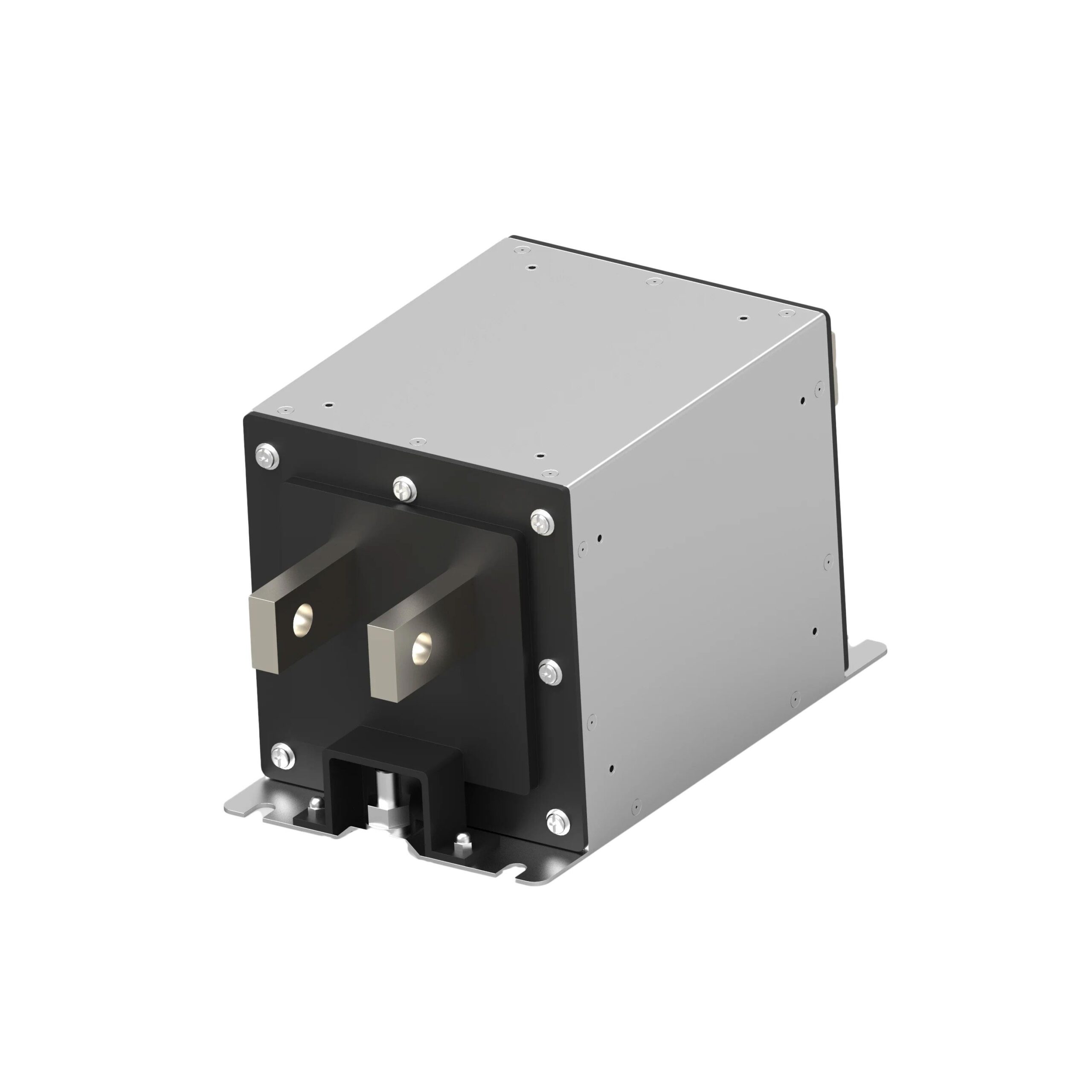

The TE Connectivity Corcom Filters model 1-2443554-1 is a high voltage DC EMI filter belonging to the EVX series. It features busbar input and output connections for chassis mounting. The component has a current rating of 450 A and a voltage rating of 1000 VDC. Its capacitance is 1 uF, and it operates at 0 Hz. Physical dimensions include a width of 122 mm, height of 128 mm, and length of 200 mm.
Feature Summary
- Designed for electric vehicle charging applications
- Provides effective EMI attenuation in high voltage DC systems
- Utilizes busbar input and output connections
Applications
- Electric vehicle (EV) charging infrastructure
- High voltage DC power conditioning
- Industrial DC power supply filtering
Procurement Notes
Verify the exact part number against official TE Connectivity documentation to ensure correct specifications. Confirm that the 450 A current rating and 1000 VDC voltage rating match your system requirements. Check for any specific packaging or handling instructions associated with busbar terminals. Ensure compliance with relevant safety standards such as UL before integration.
Selection Notes
Select this component when high current capacity and high voltage isolation are required in DC applications. The EVX series offers robust construction suitable for demanding environments. Consider the physical dimensions and chassis mount style during mechanical design. Verify compatibility with existing busbar interfaces and thermal management strategies.
Part Context
This filter is part of the Corcom EVX series, which specializes in high performance DC power line filters. The series is engineered for applications requiring significant current handling and voltage ratings. It represents a specialized solution within TE Connectivity's broader portfolio of electromagnetic interference suppression products.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided data. Consult TE Connectivity technical support for direct replacements or cross-references.
