1-2443554-2

Overview

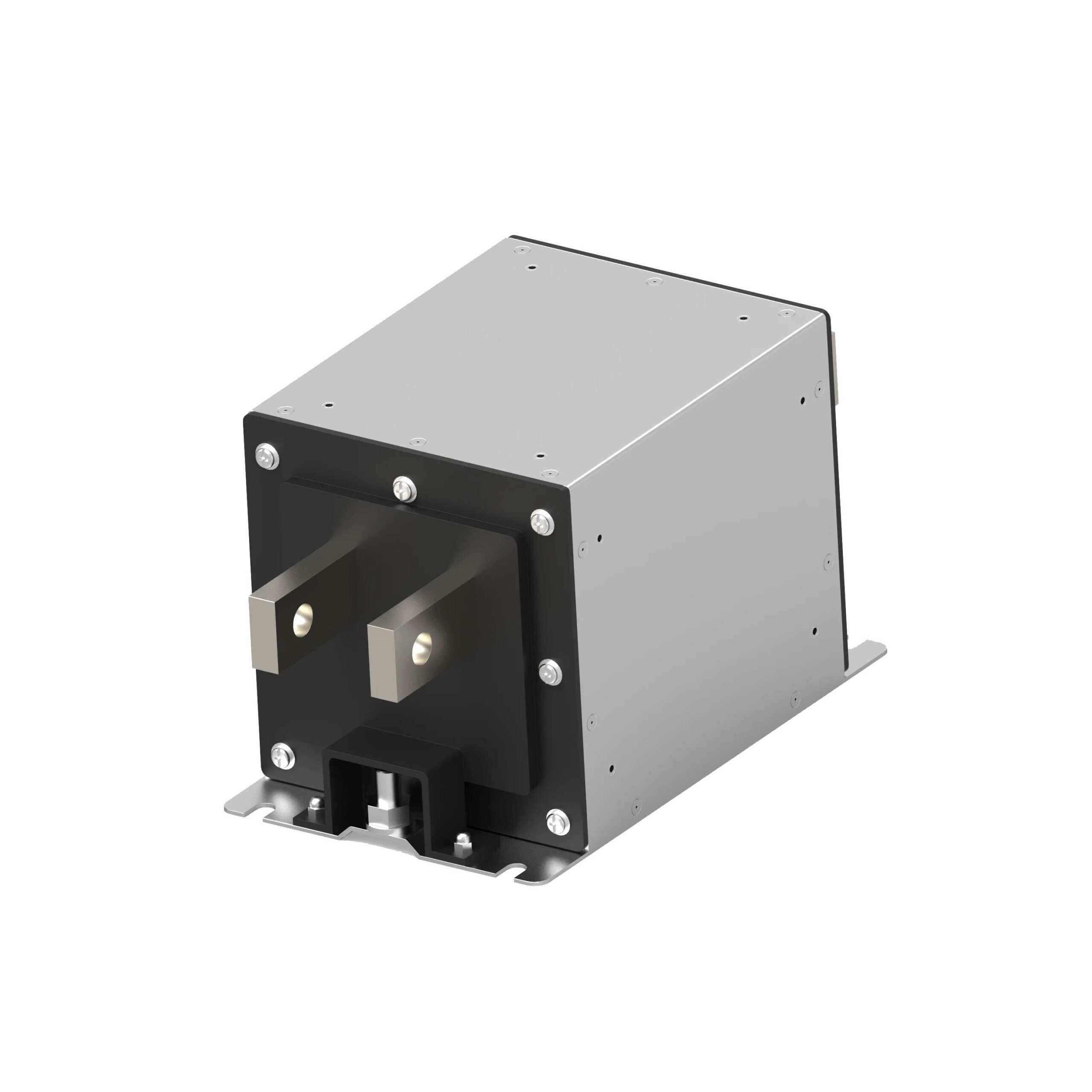

The TE Connectivity Corcom Filters model 1-2443554-2 is a high voltage DC EMI filter belonging to the EVX series. It is rated for 450 A current and 1000 VDC voltage. The device features bus bar input and output terminals and is designed for chassis mounting. This component provides effective EMI attenuation specifically for electric vehicle charging applications.

Feature Summary

• Provides effective EMI attenuation for electrical systems
• Designed for high voltage DC applications
• Supports bus bar terminal connections

Applications

• Electric vehicle charging systems
• EV conductive charging infrastructure
• High power DC power conditioning

Procurement Notes

Verify the exact part number against official TE Connectivity documentation before procurement. Confirm that the bus bar configuration matches your system requirements. Check for any recent product change notices or lifecycle status updates directly from the manufacturer to ensure availability and compliance with current specifications.

Selection Notes

Select this component when high current capacity and high voltage isolation are required in DC environments. Ensure the chassis mount style fits the enclosure design. Verify that the bus bar termination method aligns with the available connection hardware in the target assembly.

Part Context

This part belongs to the EVX series of power line filters manufactured by TE Connectivity under the Corcom brand. The series is specialized for demanding DC applications requiring robust EMI suppression capabilities in high power scenarios.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternatives. Do not assume cross-compatibility with other series without verifying electrical ratings and physical dimensions.
