1-2443554-3

Overview

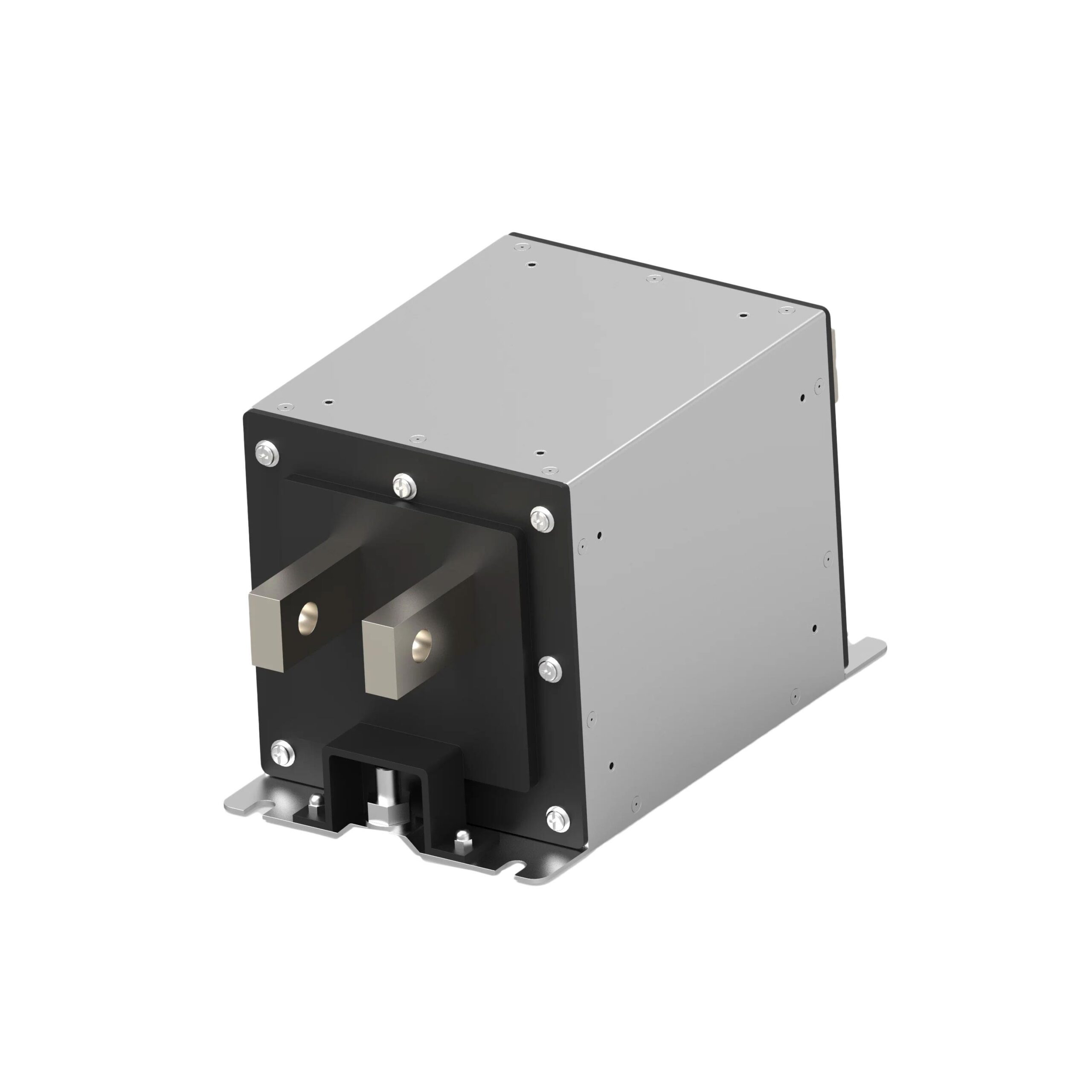

The 1-2443554-3 is a high-voltage DC EMI filter from the EVX series by TE Connectivity Corcom. It is rated for 600 A current and 1000 VDC voltage, designed for two-stage attenuation. The component features terminal post connections and chassis mount installation. It serves as a power line filter for electric vehicle charging applications.

Feature Summary

• Provides effective EMI attenuation in high-voltage DC circuits
• Designed specifically for electric vehicle charging applications
• Features two-stage filtering configuration

Applications

• Electric vehicle (EV) charging systems

Procurement Notes

Verify the exact part number against official TE Connectivity documentation to ensure compatibility with specific system requirements. Confirm that the 600 A and 1000 VDC ratings match the target application's electrical parameters. Check for any recent product change notices or lifecycle status updates directly from the manufacturer before procurement.

Selection Notes

Select this component when high-current DC filtering is required for EV infrastructure. Ensure the terminal post connection style fits the assembly design. Verify that the two-stage attenuation meets the electromagnetic interference standards applicable to the specific deployment environment.

Part Context

This part belongs to the EVX series of power line filters manufactured by TE Connectivity Corcom. The series focuses on high-voltage DC applications, distinguishing it from standard AC line filters. It is engineered to handle significant current loads typical in modern electric mobility solutions.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternatives. Do not assume cross-compatibility with other series without explicit manufacturer confirmation.
