1-2443554-4

Overview

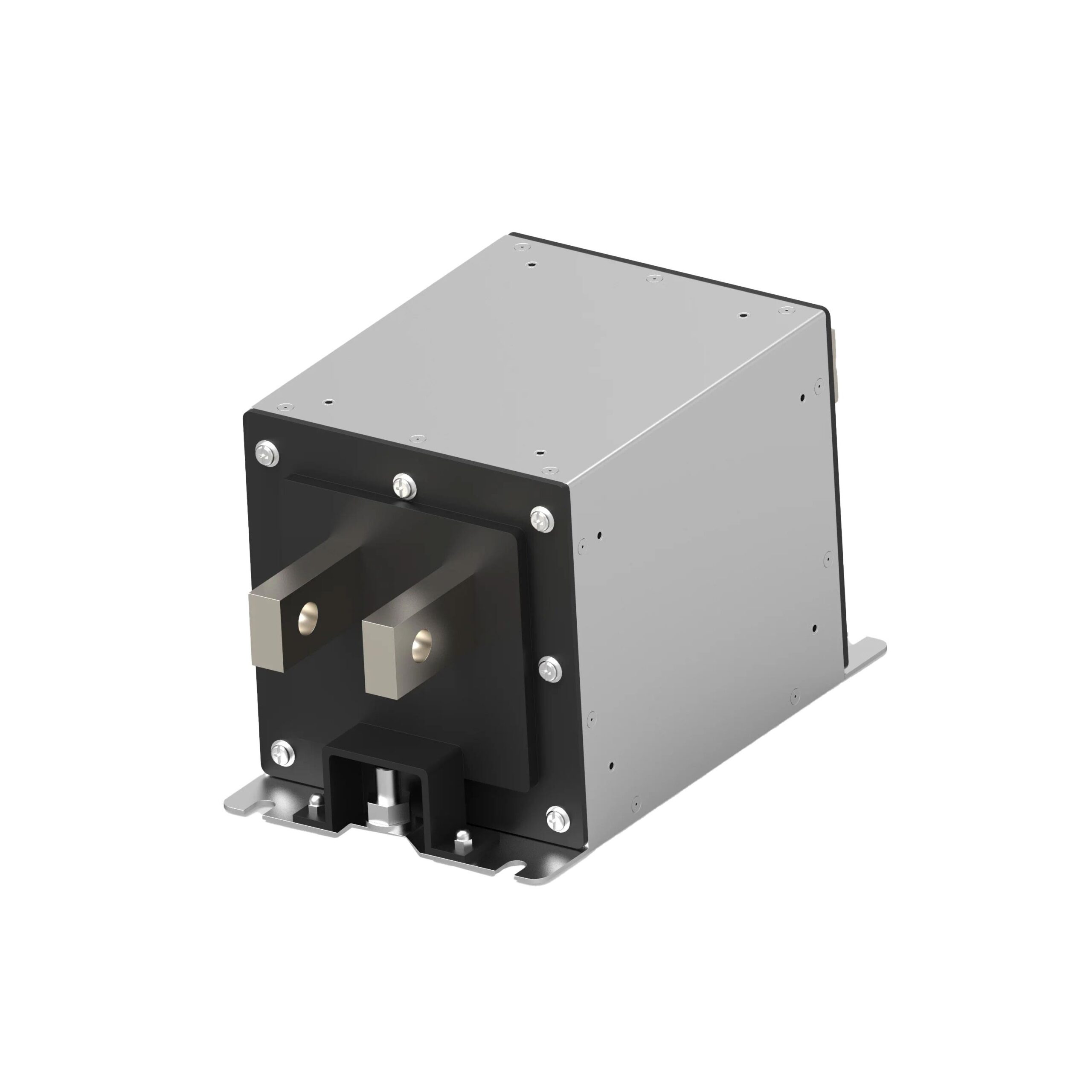

The 1-2443554-4 is a DC EMC/EMI line filter from the EVX series by TE Connectivity Corcom Filters. It is designed for high-current applications, featuring a rated current of 600 A and a voltage rating of 1000 V (1kV) DC. The component utilizes a two-stage configuration to provide effective electromagnetic interference attenuation. It employs terminal post connections for secure integration into power systems.

Feature Summary

• High-voltage DC EMI filtering capability
• Two-stage attenuation design
• Terminal post connection style

Applications

• Electric vehicle charging systems
• High-current converters
• DC power distribution units

Procurement Notes

Verify the exact electrical ratings and mechanical dimensions against the official datasheet before procurement. Confirm that the terminal post interface matches the system requirements. Ensure the component meets the specific voltage and current demands of the application environment.

Selection Notes

Select this component for applications requiring robust DC filtering at high currents. The two-stage design offers enhanced noise suppression compared to single-stage alternatives. Ensure the chassis or panel mounting provisions align with the enclosure design constraints.

Part Context

This part belongs to the EVX series, which is specialized for electric vehicle and high-power DC applications. The series focuses on handling significant current loads while maintaining electromagnetic compatibility in demanding environments.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer for direct equivalents if this part is discontinued or unavailable.

FAQ

What is the maximum current rating for this filter?

The maximum current rating is 600 A.

Is this filter suitable for AC applications?

No, it is specifically designed as a DC EMC/EMI line filter with a 1000 V DC rating.
