1-2443554-5

Overview

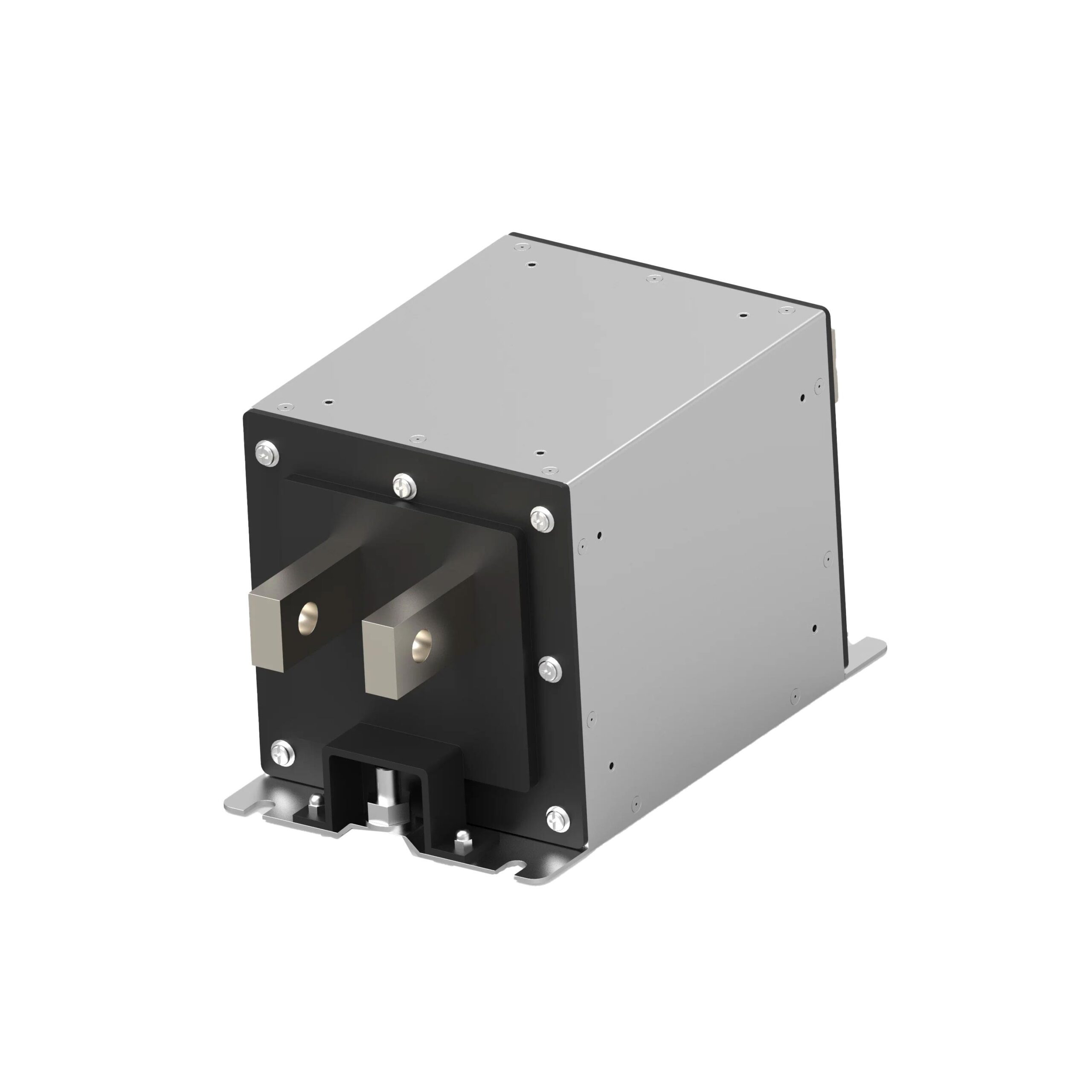

The TE Connectivity Corcom Filters 1-2443554-5 is a high-voltage DC EMI filter belonging to the EVX series. It features a two-stage configuration designed for electric vehicle charging applications. The unit provides effective EMI attenuation with a current rating of 600 A and an operating voltage of 1000 VDC. It utilizes bus bar input and output terminals.

Feature Summary

• Designed specifically for electric vehicle (EV) charging applications
• Provides effective EMI attenuation in high-voltage DC environments
• Features a two-stage filtering configuration

Applications

• Electric vehicle charging systems
• High-voltage DC power distribution
• Industrial EV infrastructure

Procurement Notes

Verify the exact part number against official TE Connectivity documentation, as similar models exist within the EVX series. Confirm that the 600 A current rating and 1000 VDC voltage specifications match your system requirements. Ensure compatibility with bus bar mounting styles. Check for any recent product change notices or end-of-life announcements directly from the manufacturer before procurement.

Selection Notes

Select this component when high-current DC filtering is required for EV charging stations. The 600 A rating supports substantial power loads. The 1000 VDC rating ensures safety in high-voltage architectures. Bus bar connections are suitable for heavy-duty industrial installations requiring robust electrical interfaces.

Part Context

This component is part of the Corcom EVX series, which specializes in high-power DC filtering solutions. The EVX line addresses the specific electromagnetic interference challenges found in modern electric mobility infrastructure. It complements other Corcom filters designed for varying current and voltage levels in automotive and industrial sectors.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Consult TE Connectivity technical support for direct replacements or cross-references.
