1-2443554-6

Overview

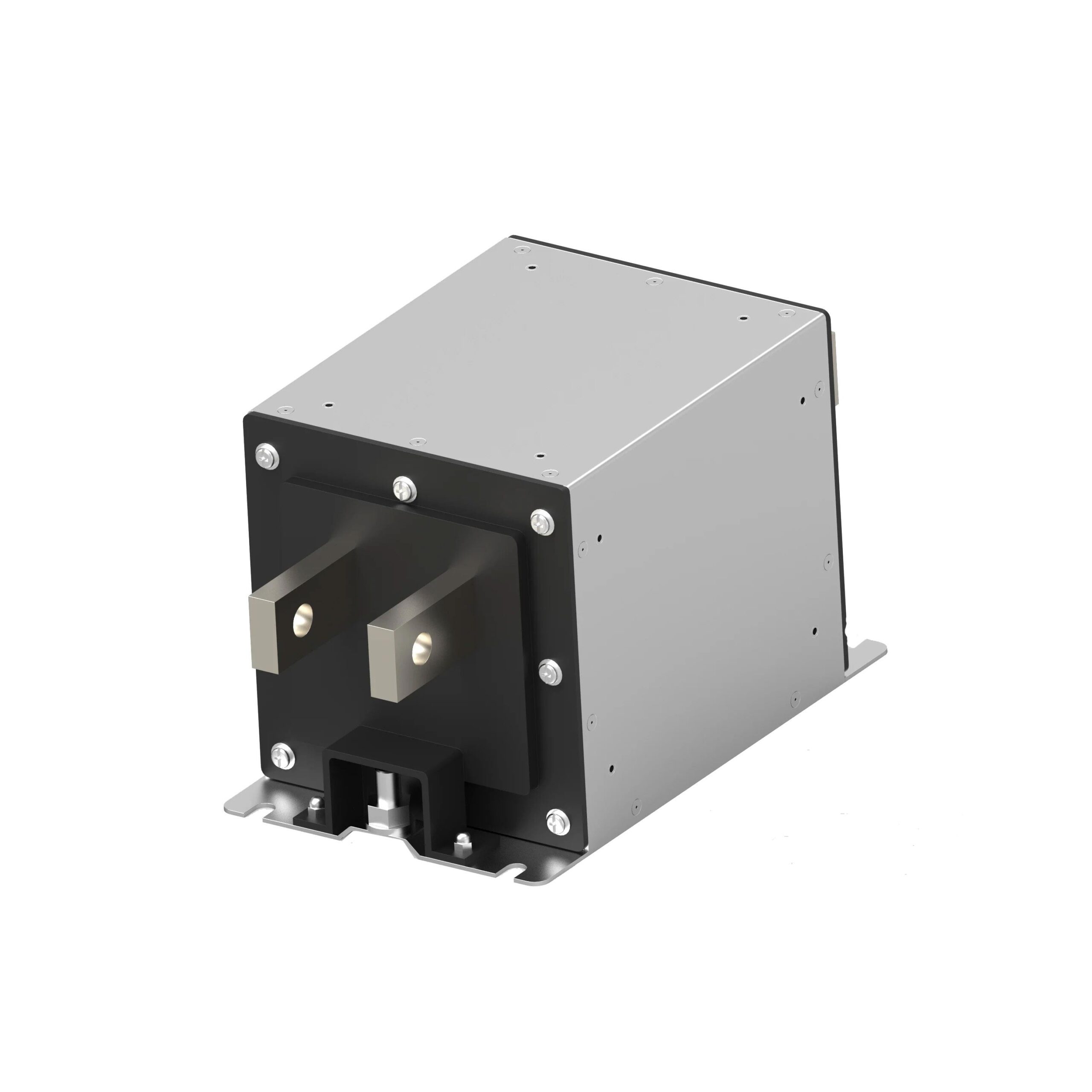

The TE Connectivity Corcom Filters model 1-2443554-6 is a DC EMI power line filter belonging to the EVX series. It features a chassis mount installation style with busbar input and output terminations. The component is rated for a maximum voltage of 1000 VDC and a continuous current of 600 A. Designed for high-power applications, it operates at a frequency of 0 Hz.

Feature Summary

• Provides electromagnetic interference suppression for direct current circuits
• Utilizes robust busbar connections for high-current capacity handling
• Engineered for secure chassis mounting in industrial environments

Applications

• Industrial power supply systems
• High-power DC motor drives
• Electrical distribution equipment

Procurement Notes

Verify the exact part number against official manufacturer documentation before ordering. Confirm that the specific electrical ratings and physical dimensions align with your system requirements. Ensure compatibility with existing busbar interfaces and mounting hardware specifications.

Selection Notes

Select this component when designing systems requiring high-current DC filtering capabilities. Consider the 1000 VDC rating and 600 A current capacity to ensure adequate performance margins. Evaluate the chassis mount form factor and busbar termination style for integration into the target enclosure layout.

Part Context

This filter is part of the Corcom EVX series, which specializes in high-performance DC power line filters. The series is designed to meet stringent electromagnetic compatibility standards for demanding industrial and commercial power applications.

Replacement Considerations

Consult official substitution guides for verified alternatives. Cross-reference technical specifications carefully to ensure equivalent performance characteristics.
