1-2443554-7

Overview

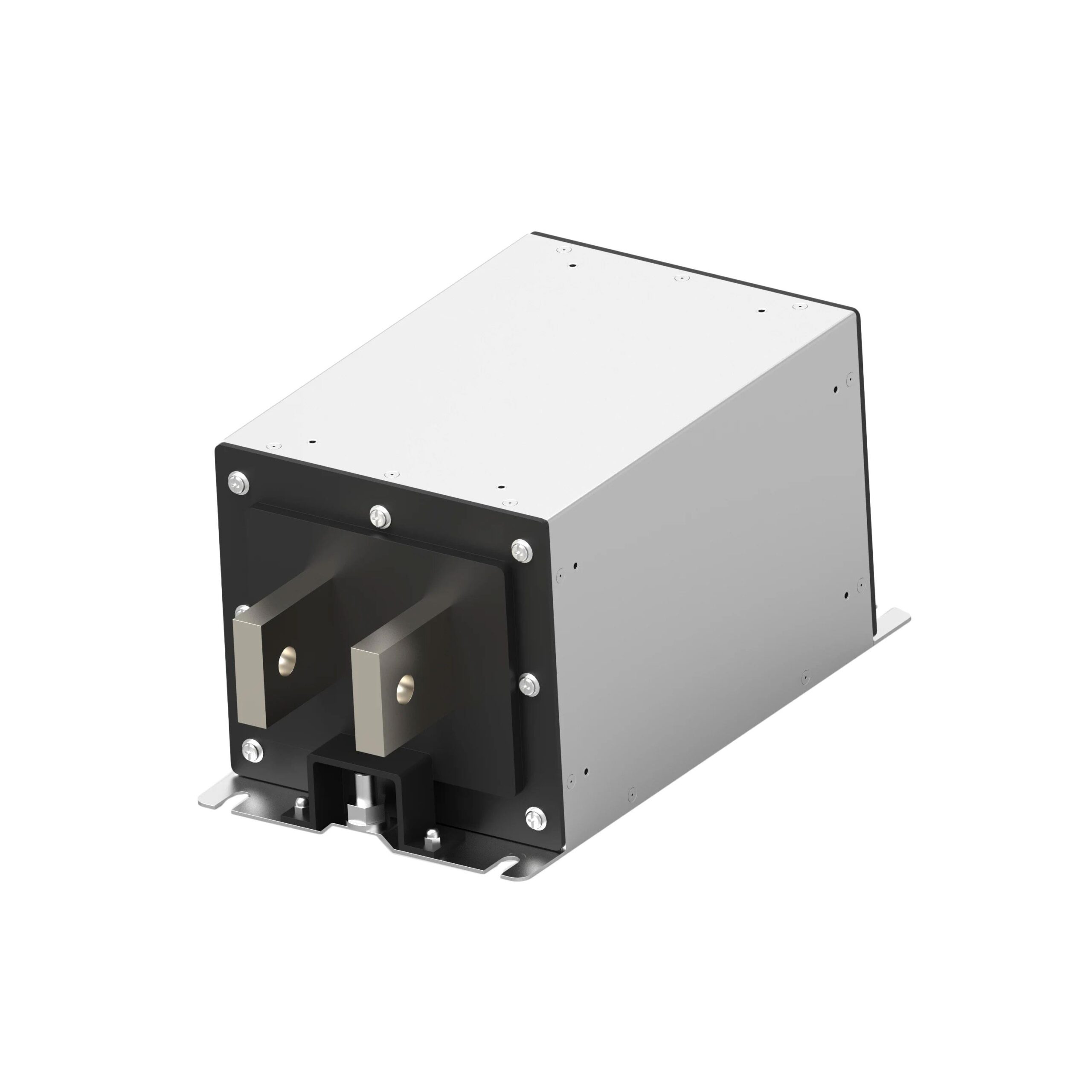

The TE Connectivity Corcom Filters model 1-2443554-7 is a DC EMC/EMI line filter belonging to the EVX series. It is rated for 1000 A current and 1000 VDC voltage. The component features bus bar input and output terminals and utilizes a two-stage filtering configuration. Designed for chassis mounting, it serves as a robust power line filter for high-current direct current applications.

Feature Summary

• Provides two-stage EMI/RFI suppression for DC power lines
• Engineered for high-capacity current handling up to 1000 A
• Utilizes bus bar connections for secure terminal interface

Applications

• High-power DC power distribution systems
• Industrial motor drive circuits
• Large-scale renewable energy inverters

Procurement Notes

Verify the specific part number suffix against official TE Connectivity documentation to confirm exact terminal orientation and mechanical dimensions. Confirm that the 1000 A rating aligns with your system's thermal management capabilities. Ensure chassis mounting provisions match the physical footprint requirements of your enclosure design before finalizing procurement.

Selection Notes

Select this component when designing systems requiring significant DC current capacity combined with stringent electromagnetic interference mitigation. The EVX series is appropriate for environments where robust bus bar connections are preferred over wire leads. Evaluate the two-stage architecture against your specific noise attenuation requirements to ensure adequate performance for sensitive downstream electronics.

Part Context

This component is part of the TE Connectivity Corcom EVX series, which specializes in high-current DC power line filters. The series is designed to address noise issues in demanding industrial and commercial power applications. The EVX line distinguishes itself through its ability to handle extreme current loads while maintaining effective filtering performance in compact chassis-mounted packages.

Replacement Considerations

Publicly confirmed substitute part numbers for this specific component were not identified in the provided source material.
