1-2443554-8

Overview

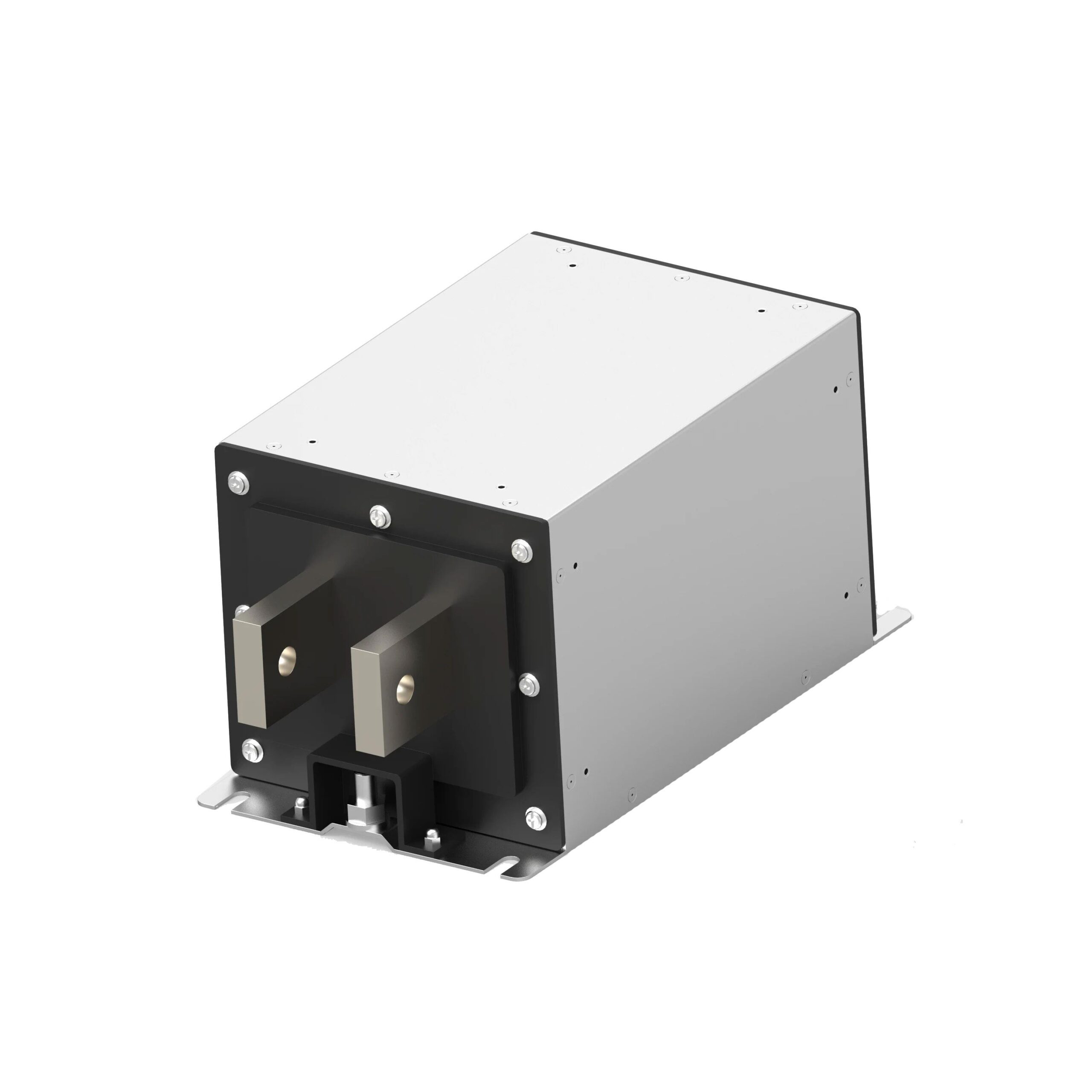

The TE Connectivity Corcom Filters model 1-2443554-8 is a high-voltage DC EMI filter belonging to the EVX series. It is rated for 1 kVDC and 1 kA, designed for chassis mounting with busbar termination. This two-stage power line filter provides effective electromagnetic interference attenuation in demanding environments.

Feature Summary

• Engineered specifically for electric vehicle charging applications
• Provides robust EMI attenuation in high voltage DC circuits
• Features durable chassis mount construction with busbar connections

Applications

• Electric vehicle (EV) charging systems
• High voltage DC power conditioning
• Industrial DC power supply filtering

Procurement Notes

Verify the exact part number suffix against official TE Connectivity documentation to confirm specific terminal configurations and certification status. Confirm current lifecycle status as manufacturing data may indicate end-of-life transitions or obsolescence notices requiring immediate replacement planning.

Selection Notes

Select this component when designing high-current DC power paths requiring significant noise suppression. Ensure the system voltage does not exceed 1 kVDC and the continuous current load remains within the 1 kA rating. Verify that the chassis mounting style and busbar interface are compatible with the enclosure design.

Part Context

This component is part of the EVX series from TE Connectivity Corcom Filters, which specializes in high-performance power line filters. The EVX series is tailored for high voltage and high current applications, distinguishing it from standard AC line filters used in general consumer electronics.

Replacement Considerations

Consult official TE Connectivity substitution guides for equivalent EVX series models. Verify that any substitute maintains the 1 kVDC/1 kA ratings and busbar termination style to ensure mechanical and electrical compatibility.
