1-2443555-0

Overview

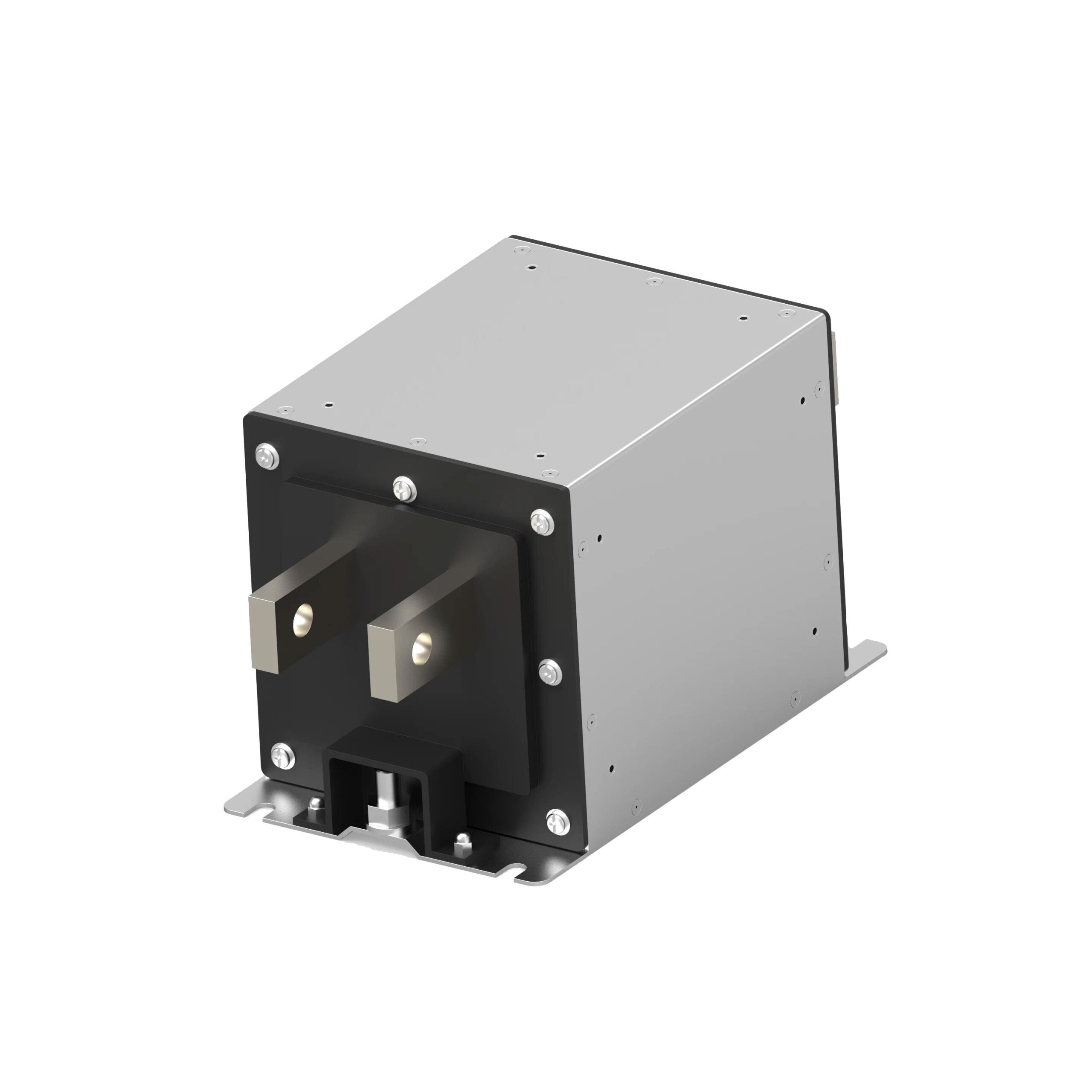

The TE Connectivity Corcom Filters 1-2443555-0 is a high-voltage DC EMC/EMI line filter belonging to the EVX series. It features a two-stage configuration designed for robust noise suppression in demanding environments. The component supports a rated current of 450 A and operates at a voltage rating of 1500 VDC (1.5 kV). It utilizes bus bar connections for both input and output terminals, ensuring low impedance paths for high-current applications.

Feature Summary

• Two-stage EMI attenuation architecture
• High-voltage DC compatibility
• Bus bar terminal interface

Applications

• Electric vehicle charging systems
• High-power DC power supplies
• Industrial DC drive systems

Procurement Notes

Verify the specific suffix designation against official documentation to confirm exact terminal configurations and mechanical dimensions. Ensure that the selected variant matches the required bus bar specifications for your assembly. Cross-reference the manufacturer's latest datasheet to confirm current availability status and any potential lifecycle changes before finalizing procurement plans.

Selection Notes

Select this component when designing systems requiring significant current handling capabilities alongside strict electromagnetic interference compliance. The bus bar interface is suitable for direct mounting to bus bars or heavy-gauge cabling. Evaluate thermal management requirements based on the 450 A continuous current rating and ensure adequate spacing for the 1500 VDC isolation requirements within the enclosure design.

Part Context

This part belongs to the Corcom EVX series, which specializes in high-performance filters for electric vehicle and industrial DC applications. The series is engineered to meet stringent automotive and industrial standards for noise reduction while maintaining structural integrity under high electrical loads.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
