1-2443555-2

Overview

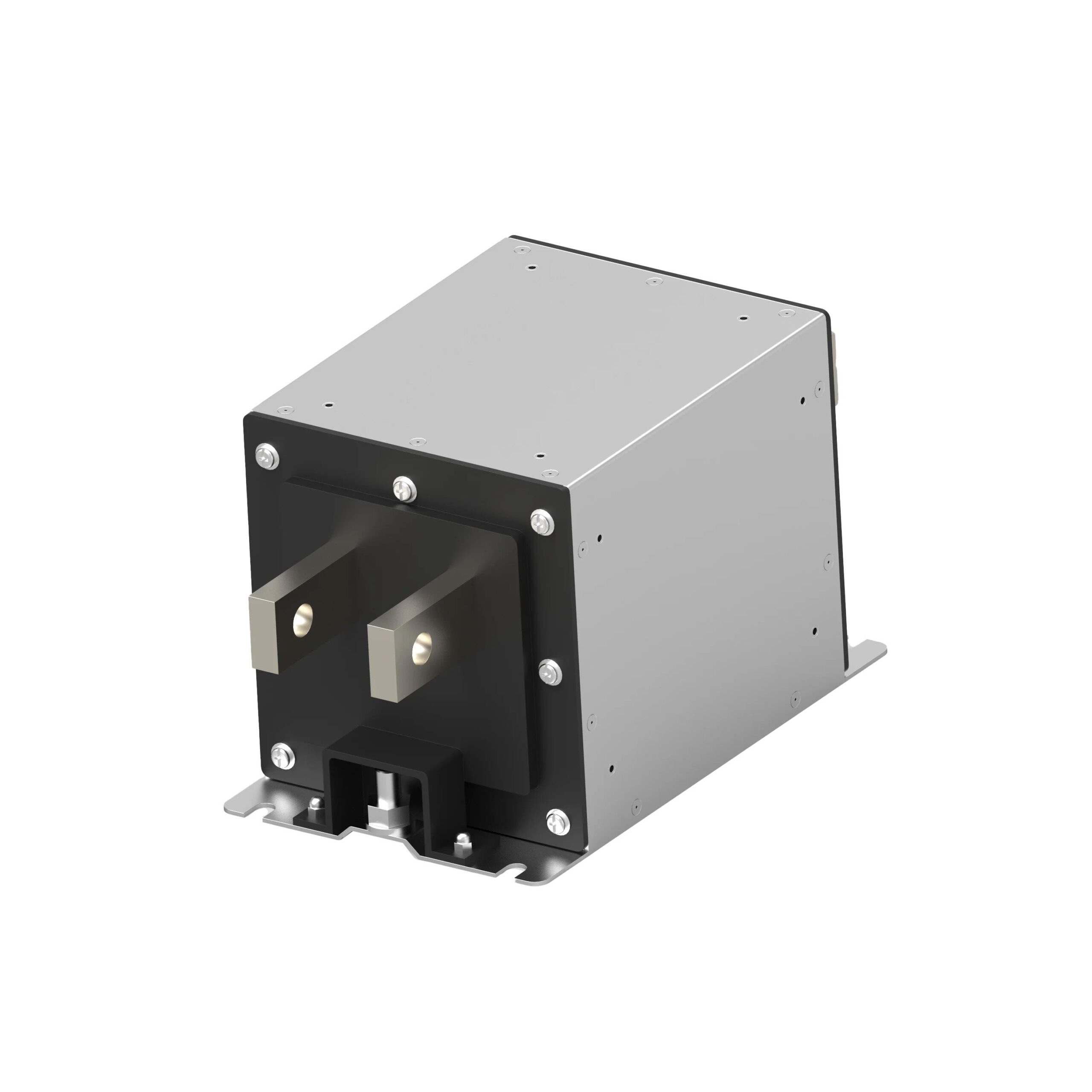

The 1-2443555-2 is a high voltage DC EMI filter from the EVX series by TE Connectivity Corcom Filters. It features a two-stage configuration with terminal post termination and chassis mount installation style. Rated for 1500 VDC and 450 A, it supports power levels from 75kW to 2.4MW. The component operates within a temperature range of -40°C to +100°C.

Feature Summary

• Designed for high-power electric vehicle fast charging applications
• Provides effective EMI attenuation in DC circuits
• Two-stage filtering configuration for enhanced noise suppression

Applications

• Electric vehicle (EV) fast chargers
• High power DC power systems
• Industrial DC power conditioning

Procurement Notes

Verify the specific datasheet version as product lifecycles may change. Confirm mechanical dimensions and terminal post specifications against your enclosure design. Ensure thermal management solutions align with the 100°C maximum operating temperature rating for reliable long-term performance.

Selection Notes

Select this model when high current capacity and high voltage isolation are required for DC line filtering. The EVX series offers robust construction suitable for demanding environments. Compare against other EVX variants if different current ratings or mounting styles are needed for the specific system architecture.

Part Context

This component belongs to the TE Connectivity Corcom EVX series, which specializes in high voltage DC EMI filters. The series is engineered to handle significant power loads, making it distinct from standard low-voltage AC filters. It addresses the specific electromagnetic interference challenges found in modern high-power DC infrastructure.

Replacement Considerations

Consult official TE Connectivity documentation for direct cross-references. Verify that any substitute maintains the 1500VDC/450A rating and compatible terminal post interface to ensure electrical and mechanical compatibility.
