1-2443555-4

Overview

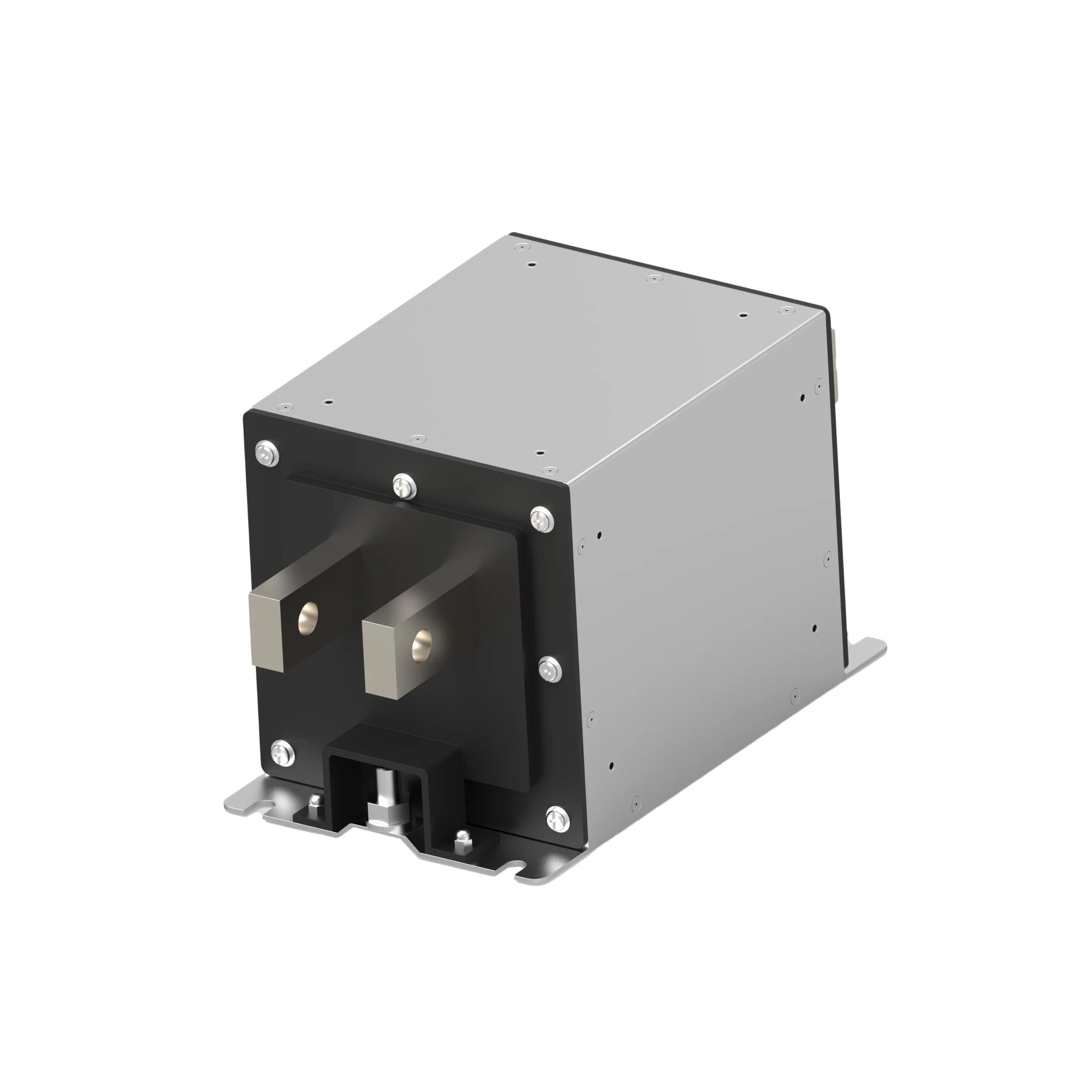

The TE Connectivity Corcom Filters model 1-2443555-4 is a DC EMI filter belonging to the EVX series. It features bus bar input and output connections for chassis mounting. The component is rated for 600 A current and 1500 VDC voltage, with an operating frequency of 0 Hz. Designed for high-power applications, it supports a maximum operating temperature of +100°C and a minimum of -40°C.

Feature Summary

• High-capacity DC power filtering capability
• Bus bar terminal configuration for robust electrical connection
• Chassis mount installation style

Applications

• Industrial power systems
• Telecommunications infrastructure
• Power conversion equipment

Procurement Notes

Verify the exact part number against official TE Connectivity documentation to confirm specifications. Ensure compatibility with system voltage and current requirements before procurement. Check for any recent product change notices or end-of-life announcements from the manufacturer.

Selection Notes

Select this component based on its specific 600 A and 1500 VDC ratings. Confirm that the bus bar interface matches the system's mechanical and electrical design. Evaluate thermal management needs given the high current capacity and operating temperature range.

Part Context

This filter is part of the Corcom EVX series, designed for demanding DC power applications. It provides electromagnetic interference suppression in high-current environments. The EVX series is known for robust construction suitable for industrial and telecommunications sectors.

Replacement Considerations

Consult official TE Connectivity resources for verified substitute part numbers. Cross-reference technical specifications to ensure equivalent performance characteristics.
