1-2443555-5

Overview

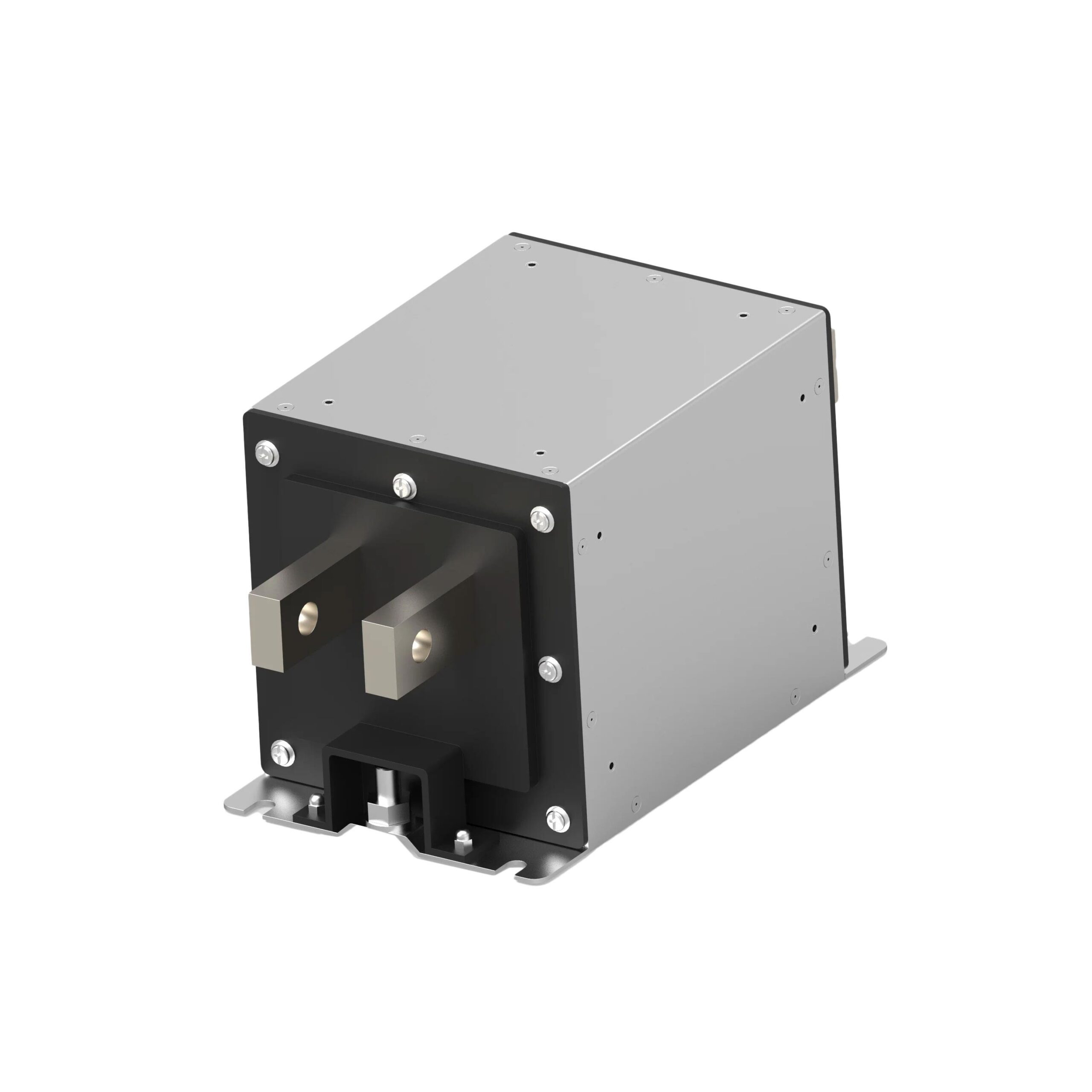

The TE Connectivity Corcom Filters model 1-2443555-5 is a DC EMI filter belonging to the EVX series. It features a voltage rating of 1500 VDC and a current rating of 600 A. The component utilizes busbar termination for both input and output connections. Designed for chassis mounting, it operates within a temperature range of -40°C to +100°C. Physical dimensions are 200 mm in length, 122 mm in width, and 128 mm in height.

Feature Summary

• Engineered for high-power electric vehicle charging infrastructure applications
• Provides effective electromagnetic interference attenuation in high-voltage direct current circuits
• Supports power levels ranging from 75kW to 2.4MW for fast chargers

Applications

• Electric vehicle (EV) charging stations
• High-power DC fast charger systems
• Industrial high-voltage DC power conditioning

Procurement Notes

Verify the specific part number against official manufacturer documentation before procurement. Confirm that the busbar termination style matches your system's mechanical interface requirements. Ensure the 1500 VDC and 600 A ratings align with your circuit design parameters. Check for any recent product change notices or end-of-life announcements directly from the supplier.

Selection Notes

Select this component when designing systems requiring robust DC filtering for high-current electric vehicle applications. The EVX series offers specialized attenuation characteristics suitable for fast-charging environments. Consider the chassis mount configuration and busbar connection method during the mechanical integration phase to ensure proper thermal management and electrical connectivity.

Part Context

This component is part of the Corcom EVX series, which specializes in high-voltage DC EMI filters. The series is tailored for demanding automotive and industrial sectors, specifically addressing the needs of modern electric mobility infrastructure. It represents a solution for managing noise in high-power direct current transmission lines.

Replacement Considerations

Publicly confirmed substitute part numbers were not identified in the provided source material. Consult official manufacturer resources for potential cross-references or updated equivalents.
