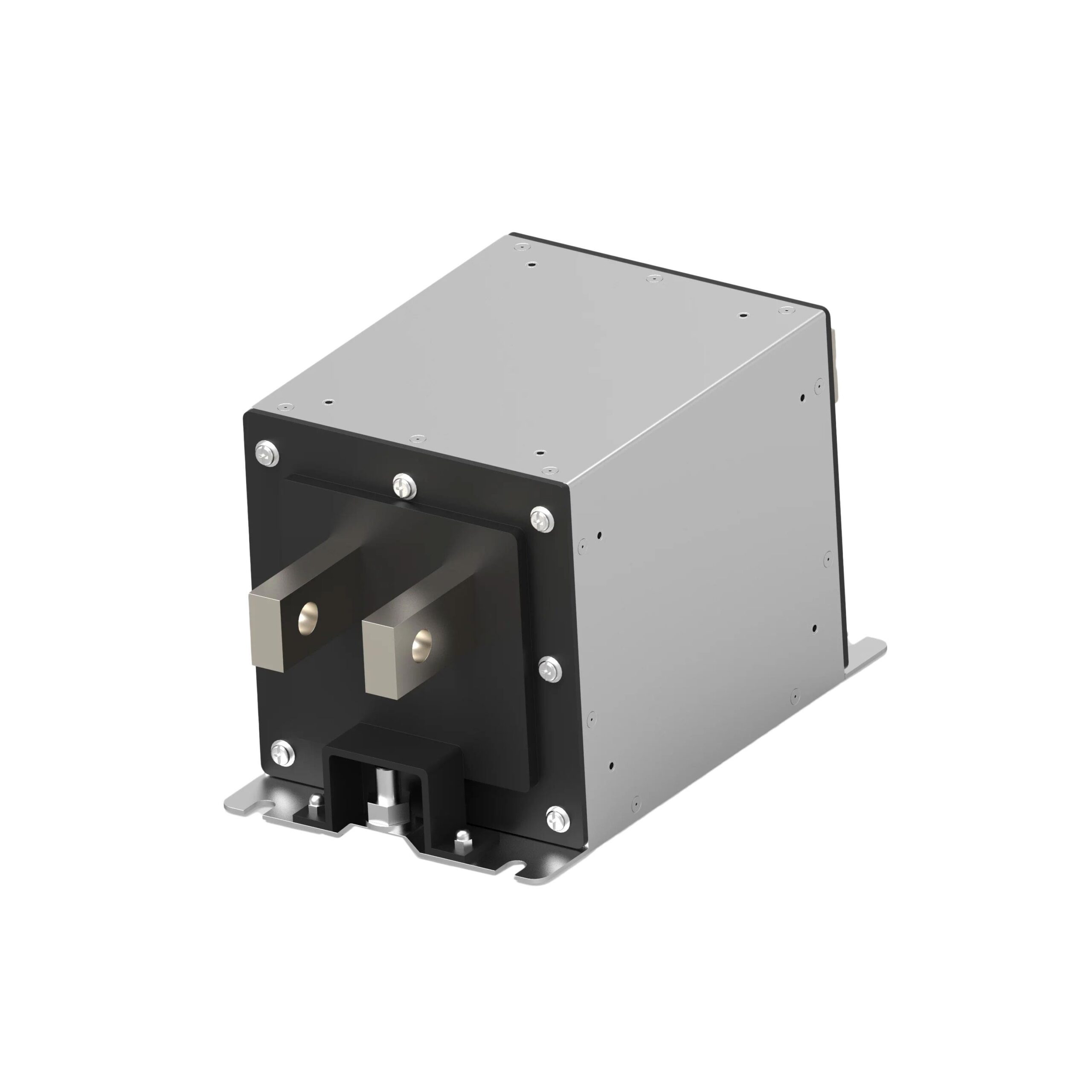

1-2443555-6

$816.01

Description：LINE FLTR 1500VDC 600A CHASS MNT
Series：EVX
Mfr：TE Connectivity Corcom Filters
Package：Box

SKU:5bbfcf0c681c Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FLTR 1500VDC 600A CHASS MNT
Series：EVX
Mfr：TE Connectivity Corcom Filters
Package：Box
Filter Type：DC
Configuration：Two Stage
Voltage - Rated DC：1500V (1.5kV)
Voltage - Rated AC：-
Current：600 A
Frequency - Operating：DC
Applications：Converter
Approval Agency：UR
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Post
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

1-2443555-6

Overview

The 1-2443555-6 is a high-voltage DC EMI filter from the EVX series by TE Connectivity Corcom. Designed for electric vehicle charging applications, it provides effective electromagnetic interference attenuation. The unit features a chassis mount style with busbar termination. It supports a voltage rating of 1.5 kVDC and a current rating of 450 A. Operating within a temperature range of -40°C to +100°C, the component measures 200 mm in length, 122 mm in width, and 128 mm in height.

Feature Summary

Engineered specifically for electric vehicle charging infrastructure
Provides robust electromagnetic interference attenuation
Capable of handling high direct current loads

Applications

Electric vehicle charging stations
High-power DC power conditioning systems
Industrial DC power supply units

Procurement Notes

Verify the specific part number against official manufacturer documentation before procurement. Confirm that the busbar termination style matches your system's interconnection requirements. Ensure the chassis mounting dimensions are compatible with your enclosure design. Check for any recent product change notices or end-of-life announcements directly from the supplier.

Selection Notes

Select this component when high-current DC filtering is required for EV charging equipment. The EVX series offers specialized attenuation for high-voltage environments. Verify that the 450 A current rating and 1.5 kVDC voltage rating align with your system's electrical specifications. Consider the physical dimensions for panel cutout and clearance requirements.

Part Context

This component belongs to the EVX series of power line filters manufactured by TE Connectivity Corcom. The series is tailored for demanding high-voltage and high-current applications. It complements other Corcom products designed for power quality and electromagnetic compatibility in industrial and automotive sectors.
