1-2443555-7

Overview

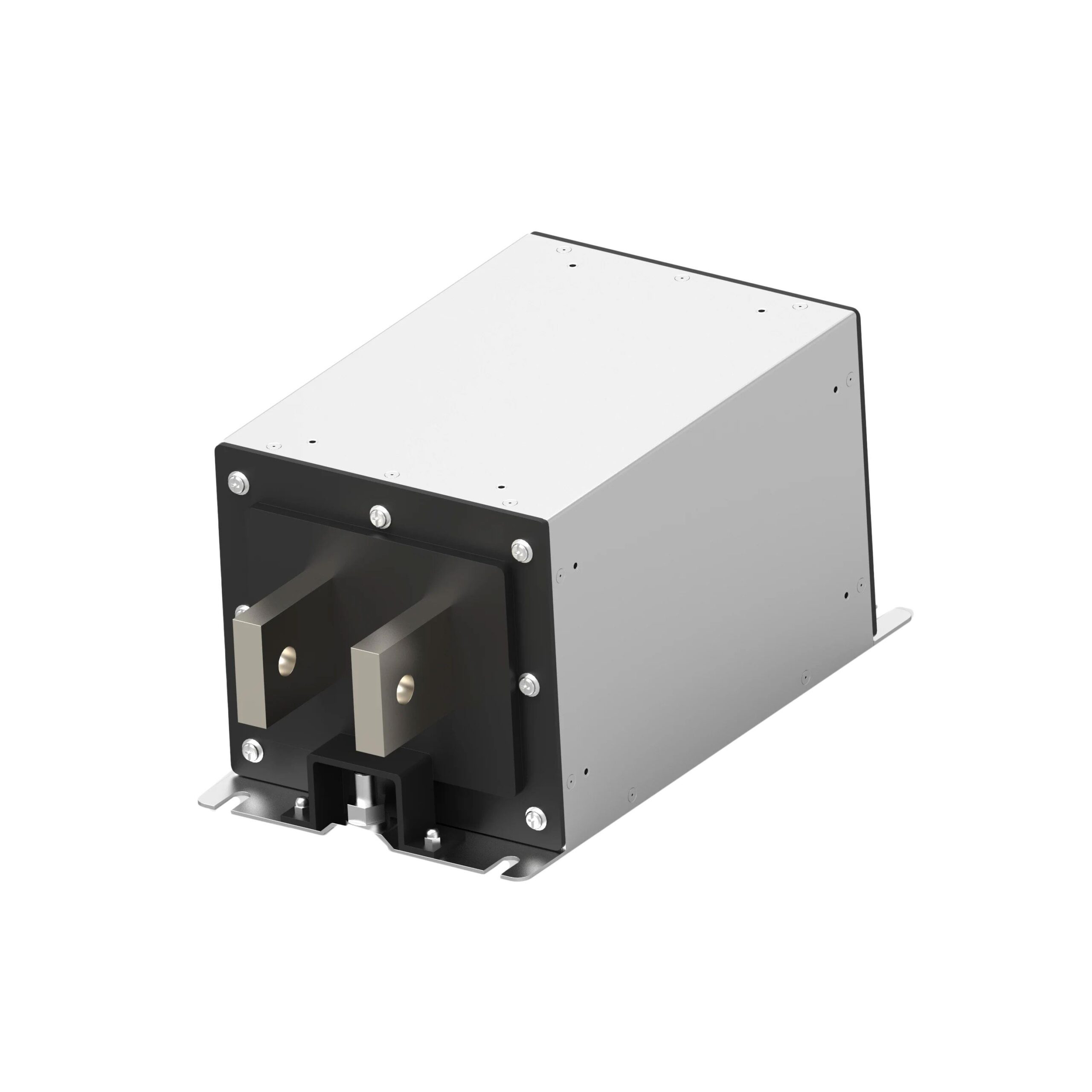

The 1-2443555-7 is a high-voltage DC EMI filter from the EVX series by TE Connectivity Corcom. It features a two-stage configuration designed for electric vehicle charging applications. The unit supports a voltage rating of 1500V DC and a current capacity of 1000A. It utilizes terminal post connections and chassis mounting. The component provides effective electromagnetic interference attenuation suitable for demanding power electronics environments.

Feature Summary

• High-voltage DC filtering capability
• Two-stage EMI attenuation design
• Terminal post connection style

Applications

• Electric vehicle charging systems
• DC power conditioning
• High-current industrial electronics

Procurement Notes

Verify the specific part number against official TE Connectivity documentation to confirm availability and specifications. Ensure compatibility with system voltage and current requirements before procurement. Check for any recent product change notices or end-of-life announcements directly from the manufacturer.

Selection Notes

Select this component for applications requiring robust DC EMI suppression at high voltages. Confirm that the terminal post interface matches the system busbar or cable assembly. Validate thermal management capabilities within the intended enclosure environment.

Part Context

This component belongs to the EVX series, which is specialized for high-power DC applications. It addresses the need for reliable noise filtration in electric mobility infrastructure. The design focuses on durability and performance under high electrical stress conditions typical of modern EV charging stations.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data.
