1-2443555-8

Overview

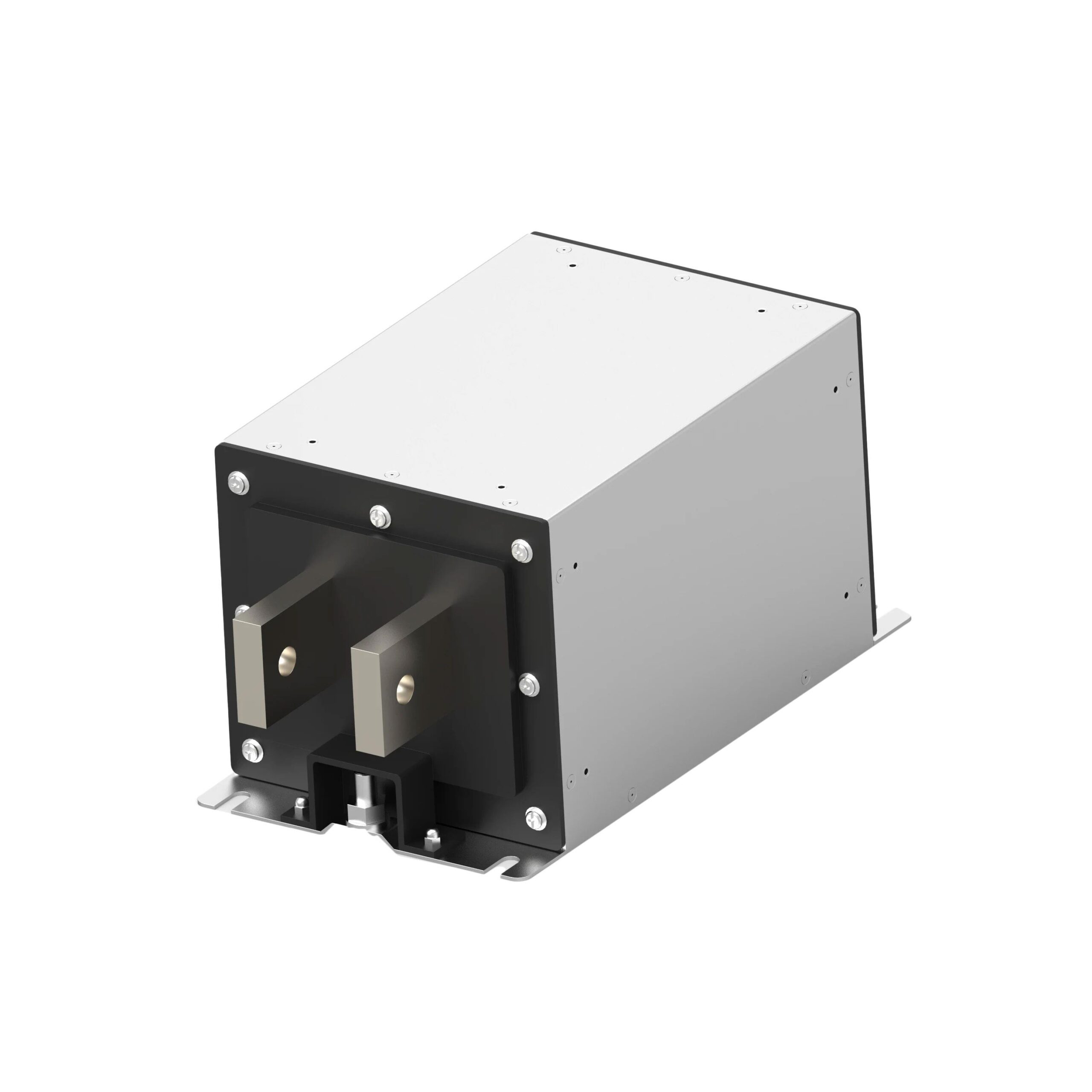

The TE Connectivity Corcom Filters 1-2443555-8 is a high-voltage DC EMI filter belonging to the EVX series. It features a two-stage configuration designed for robust electromagnetic interference suppression in demanding power environments. The unit supports a voltage rating of 1.5 kVDC and handles currents up to 1000 A, making it suitable for high-power applications such as fast chargers ranging from 75kW to 2.4MW. It utilizes chassis mount installation with busbar termination. Physical dimensions are approximately 250 mm in length, 140 mm in width, and 130 mm in height.

Feature Summary

• Engineered for high-power DC applications including fast charging infrastructure
• Provides effective EMI/RFI suppression through a two-stage filtering design
• Capable of handling extreme current loads up to 1000 A at high voltages

Applications

• High-power DC fast charging stations
• Industrial power conversion systems
• Large-scale renewable energy inverters

Procurement Notes

Verify component authenticity against official TE Connectivity documentation due to potential availability constraints. Confirm specific ordering suffixes match required electrical parameters. Check for end-of-life notices or obsolescence warnings prior to procurement. Ensure compatibility with existing busbar mounting hardware and thermal management requirements.

Selection Notes

Select this model specifically for high-voltage DC environments requiring significant current capacity. Compare against lower-current EVX variants if system demands are reduced. Verify that the physical footprint fits within the designated chassis enclosure. Ensure input and output connections align with the specified busbar termination style.

Part Context

This component is part of the Corcom EVX series, which specializes in high-voltage DC power line filters. The series is tailored for heavy-duty industrial and commercial applications where reliable noise filtration and high power handling are critical. It represents a specialized solution within TE Connectivity's broader power conditioning portfolio.

Replacement Considerations

Publicly confirmed substitute part numbers were not identified in the provided source material. Consult official TE Connectivity resources for direct replacements or updated series equivalents.
