1-2443555-9

Overview

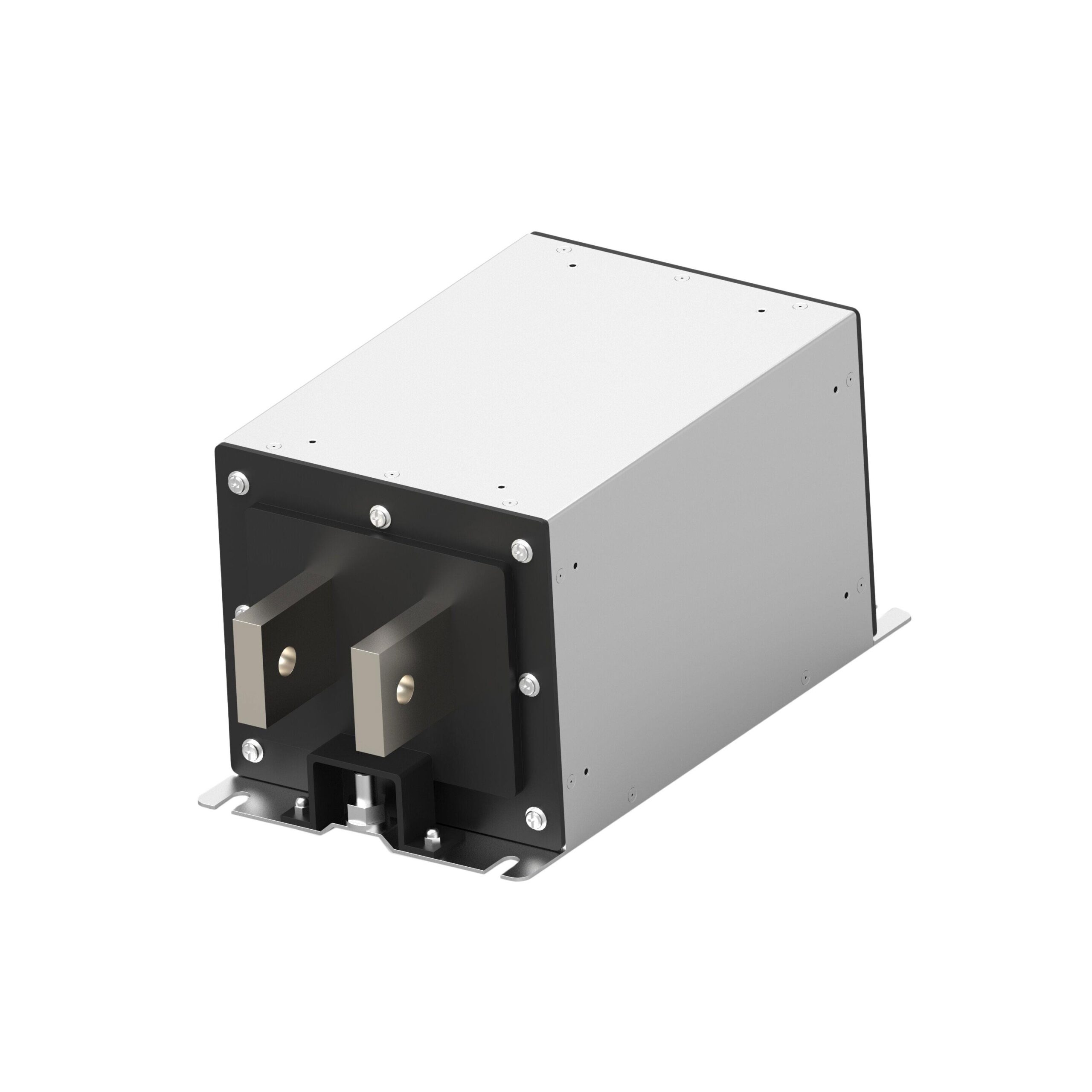

The TE Connectivity Corcom Filters 1-2443555-9 is a high-voltage DC EMI filter belonging to the EVX series. It features a voltage rating of 1.5 kVDC and a current capacity of 450 A. Designed for chassis mounting, it utilizes busbar termination. The unit measures 200 mm in length, 122 mm in width, and 128 mm in height. Operating within a temperature range of -40 C to +100 C, it holds UL compliance.

Feature Summary

• Engineered for high-voltage direct current applications with robust electromagnetic interference attenuation capabilities.
• Utilizes a chassis mount configuration with busbar termination for secure integration into power systems.
• Constructed to withstand extreme operating temperatures ranging from negative forty to one hundred degrees Celsius.

Applications

• Electric vehicle charging infrastructure
• High-power DC power conditioning systems
• Industrial DC motor drives

Procurement Notes

Verify component authenticity through authorized TE Connectivity channels or certified distributors. Confirm that the specific part number matches the required electrical ratings and physical dimensions for your chassis design. Ensure proper handling procedures are followed due to the high current and voltage specifications associated with this industrial-grade filter module.

Selection Notes

Select this component when designing systems requiring significant DC current handling alongside strict EMI suppression standards. Evaluate the physical envelope constraints against the specified chassis mount dimensions. Confirm compatibility with busbar connection methods and verify that the thermal management strategy supports the maximum operating temperature limits defined in the technical documentation.

Part Context

This component is part of the EVX series from TE Connectivity Corcom Filters, specifically tailored for demanding electric vehicle and high-power DC environments. The series focuses on providing reliable noise filtration for critical power electronics where high voltage and current densities are prevalent.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Consult official manufacturer documentation for potential cross-references or updated series replacements.
