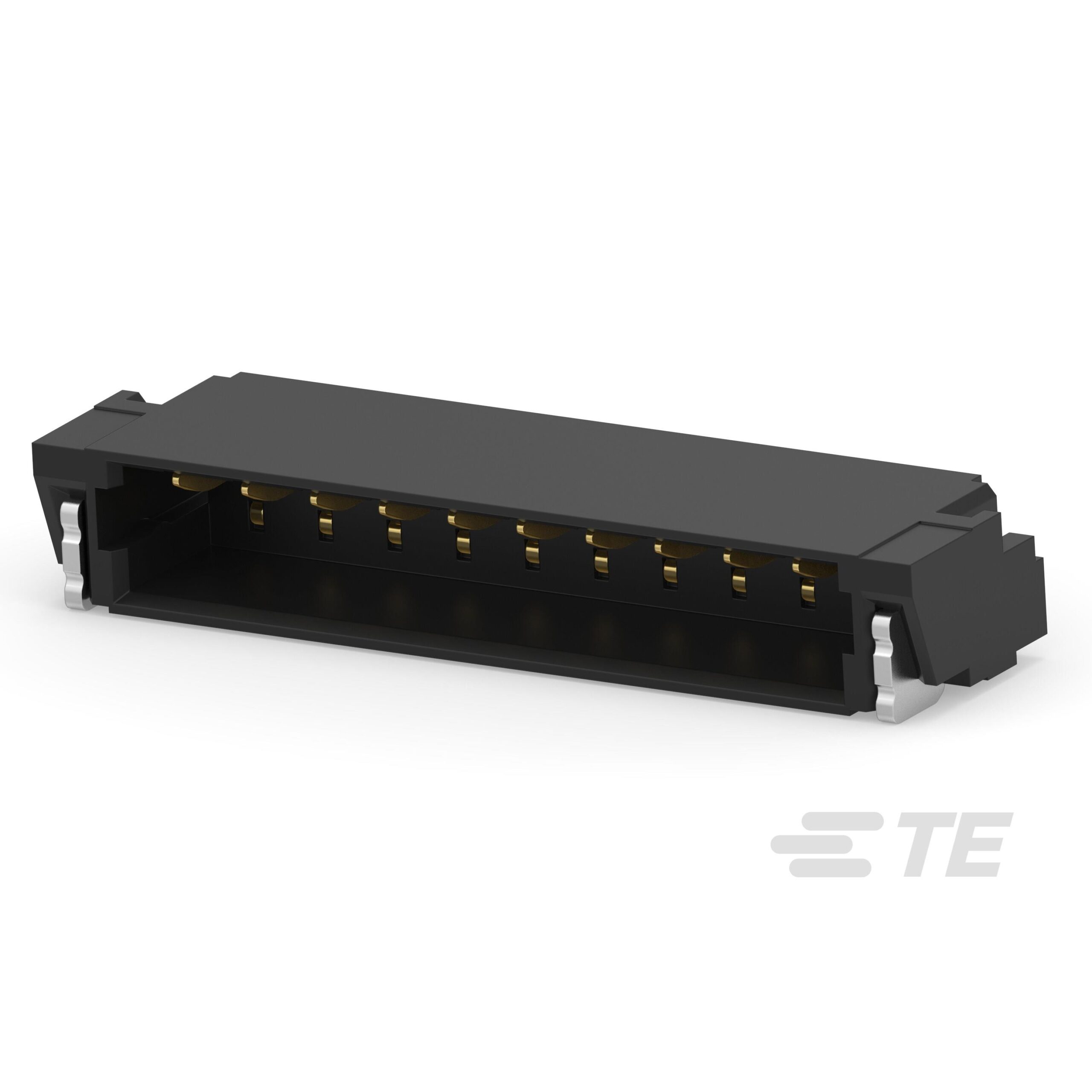

1-2483190-0
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：0.8MM RIGHT ANGLE WTB 10POS
- Series：-
- Mfr：TE Connectivity AMP Connectors
- Package：Tape & Reel (TR),Cut Tape (CT)
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.031" (0.80mm)
- Number of Positions：10
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.071" (1.80mm)
- Contact Shape：Rectangular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：Gold
- Contact Material：Phosphor Bronze
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Solder Retention
- Operating Temperature：-25°C ~ 85°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：0.5A
- Voltage Rating：30VAC/DC
