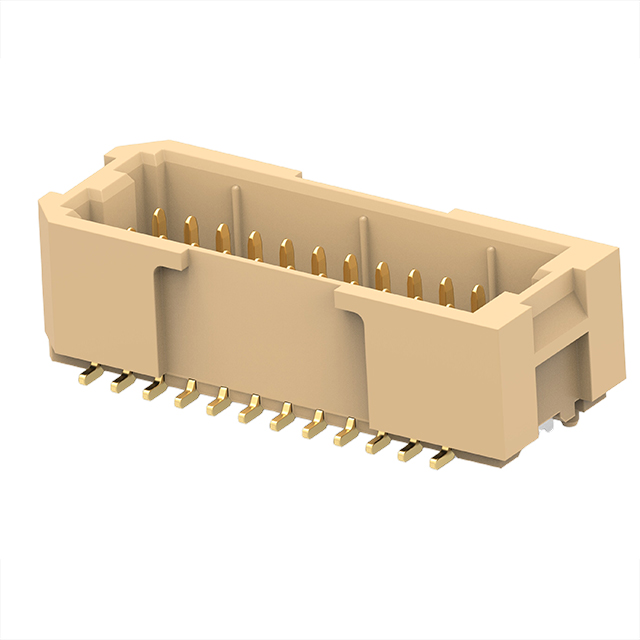

1-2484140-4

Product Detailed Parameters

• Description：1.0MM P HPI 105DEG 2X12 POS
• Series：High Performance Interconnect (HPI)
• Mfr：TE Connectivity AMP Connectors
• Package：Tape & Reel (TR),Cut Tape (CT),-
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.039" (1.00mm)
• Number of Positions：24
• Number of Rows：2
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：-
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：0.167" (4.25mm)
• Contact Shape：Rectangular
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Contact Finish - Post：Gold
• Contact Material：Phosphor Bronze
• Insulation Material：Plastic
• Features：Board Guide, Solder Retention
• Operating Temperature：-25°C ~ 85°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Beige
• Current Rating (Amps)：1A
• Voltage Rating：50VAC/DC
