1-2492142-8
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters

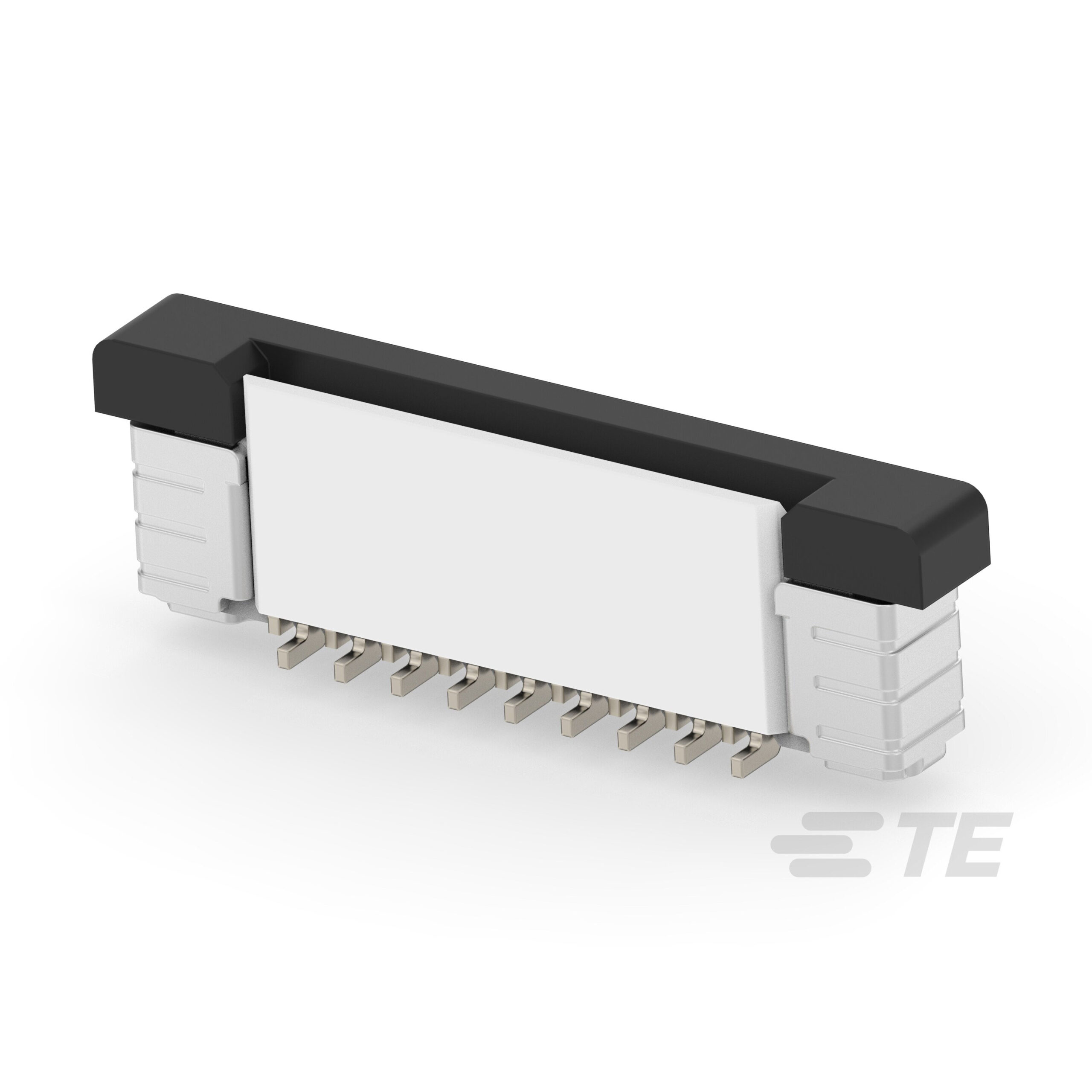

- Description：.5 FPC VT ZIF TYPE-B 18 CONT
- Series：-
- Mfr：TE Connectivity AMP Connectors
- Package：Tape & Reel (TR)
- Flat Flex Type：FPC
- Mounting Type：Surface Mount
- Connector/Contact Type：Contacts, Vertical - 2 Sided
- Number of Positions：18
- Pitch：0.020" (0.50mm)
- Termination：Solder
- FFC, FCB Thickness：0.30mm
- Height Above Board：0.173" (4.40mm)
- Locking Feature：-
- Cable End Type：Straight
- Contact Material：Phosphor Bronze
- Contact Finish：Tin
- Housing Material：Liquid Crystal Polymer (LCP)
- Actuator Material：Liquid Crystal Polymer (LCP)
- Features：Pick and Place Cap, Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating：50V
- Operating Temperature：-40°C ~ 85°C
- Material Flammability Rating：UL94 V-0
